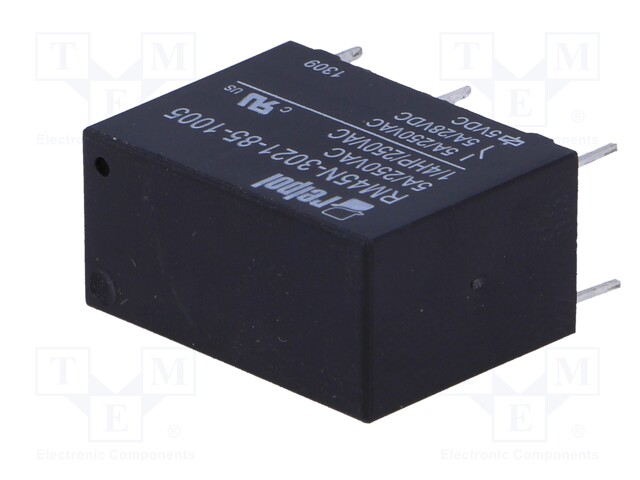

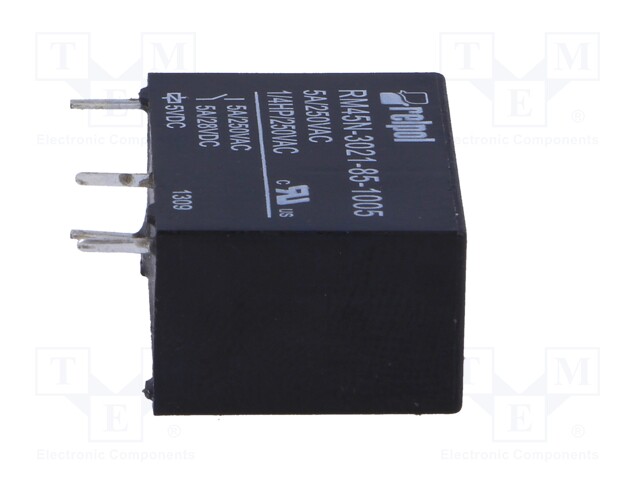

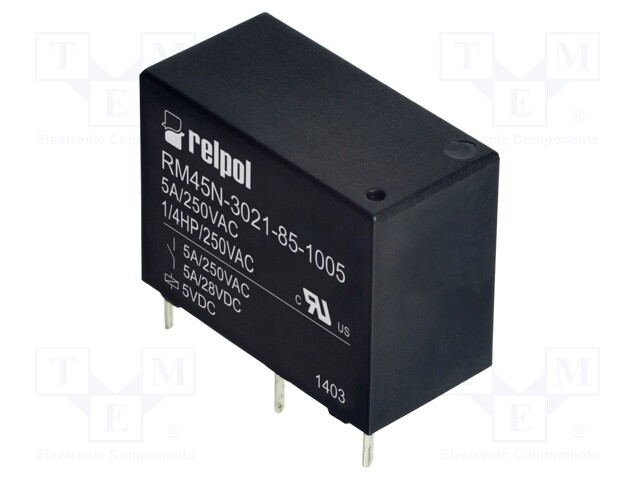

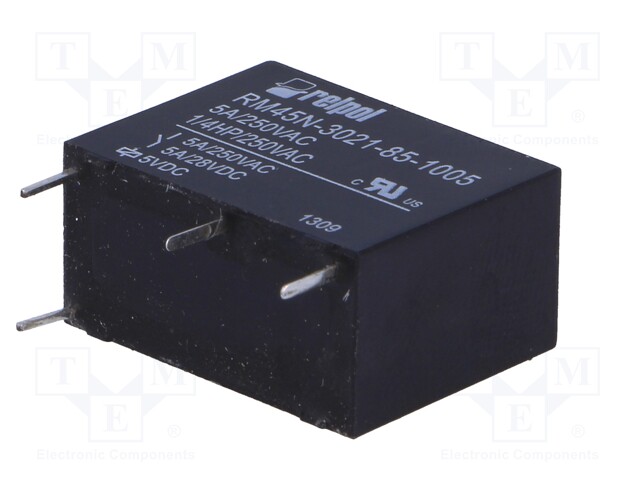

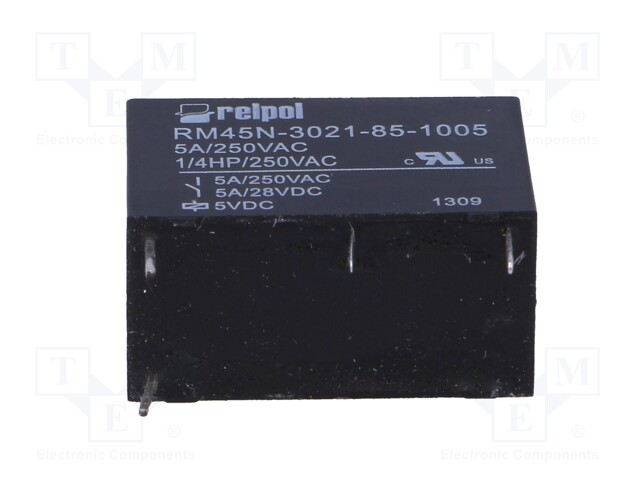

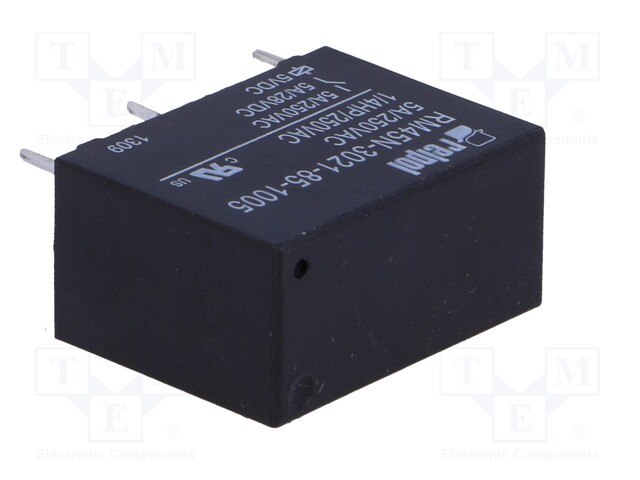

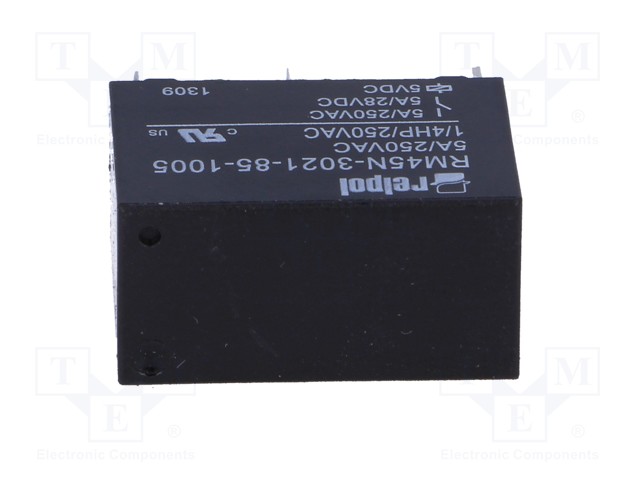

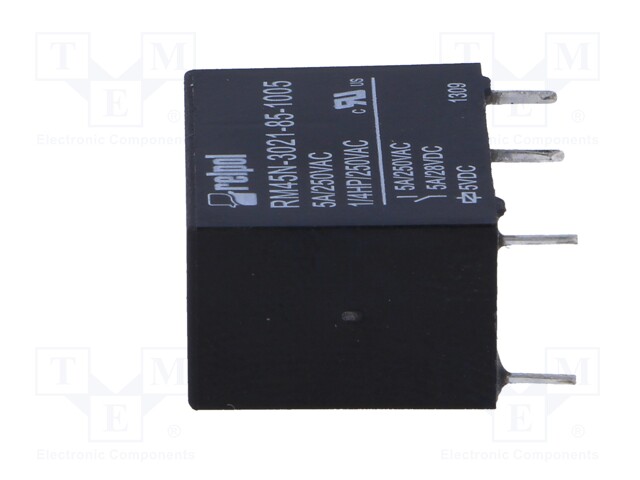

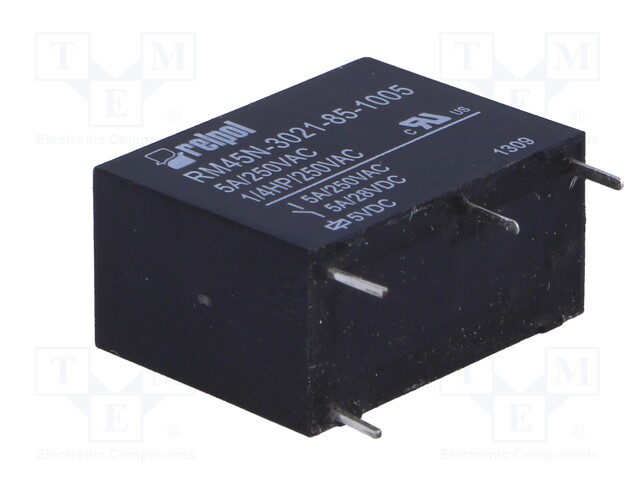

Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 5A/250VAC; 5A/28VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: RM45N-3021-85-1005
    Manufacturer: RELPOL
    Manufacturer code: RM45N-3021-85-1005
    • Mounting
    • Operating temperature
    • IP rating
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Electrical life
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time
    • OEM number

    3.57 € 3.57 € (wo VAT) 3.5700000000000003 EUR

    3.57 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 5A/250VAC; 5A/28VDC

    Mounting PCB
    Operating temperature -40...70°C
    IP rating IP64
    Contact material AgSnO<sub>2</sub>
    Terminal pitch 7.62mm
    Body dimensions 20.5x10.6x15.6mm
    Mechanical durability 100000000cycles
    Switched voltage max. 28V DC, max. 277V AC
    Electrical life 100000cycles
    Coil resistance 56Ω
    Rated coil voltage 5V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 5A / 28V DC
    Contact resistance 100MΩ
    AC contacts rating @R 5A / 250V AC
    Contact current max. 5A
    Relay variant miniature
    Coil voltage max. 5.5V DC
    Type of relay electromagnetic
    Coil voltage min. 3.75V DC
    Coil power consumption 450mW
    Operate time 8ms
    Release time 5ms
    OEM number 2614951
