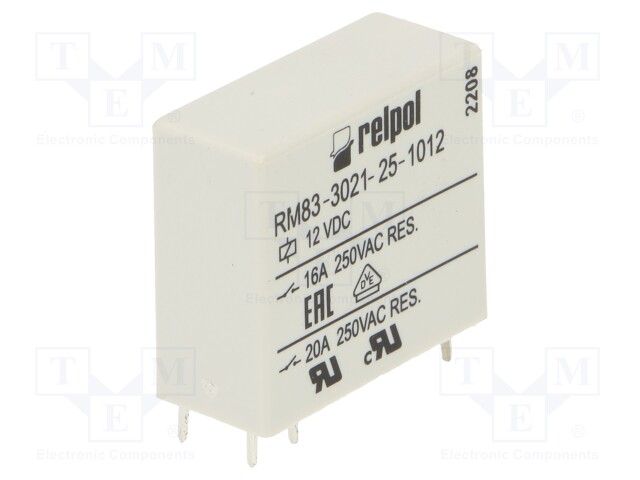

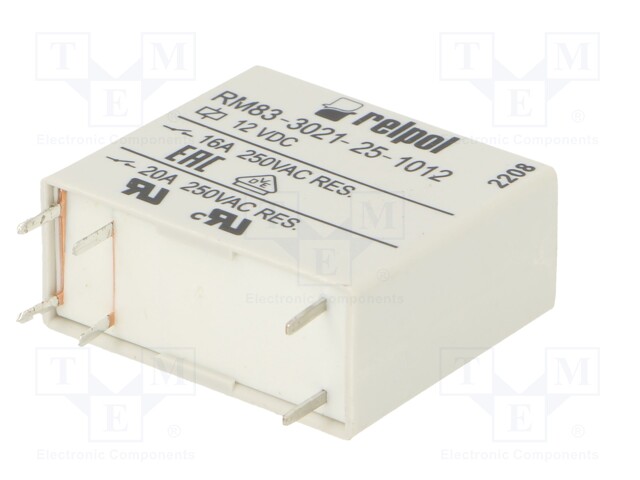

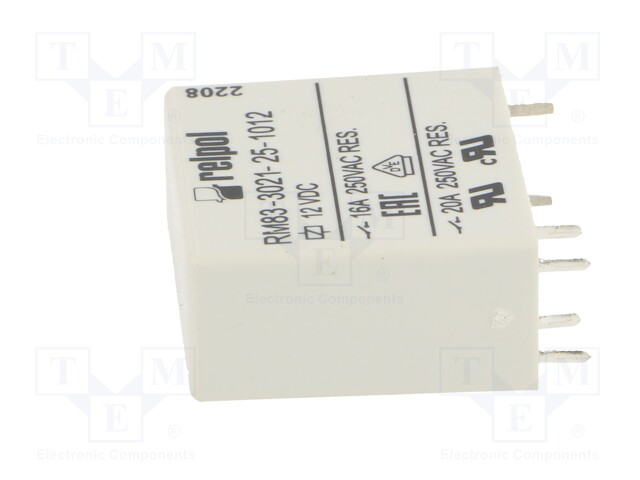

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 16A/250VAC; 16A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: RM83-3021-25-1012
    Manufacturer: RELPOL
    Manufacturer code: RM83-3021-25-1012
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    11.78 € 11.78 € (wo VAT) 11.78 EUR

    11.78 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 16A/250VAC; 16A

    Mounting PCB
    Operating temperature -40...70°C
    Terminal pitch 5mm

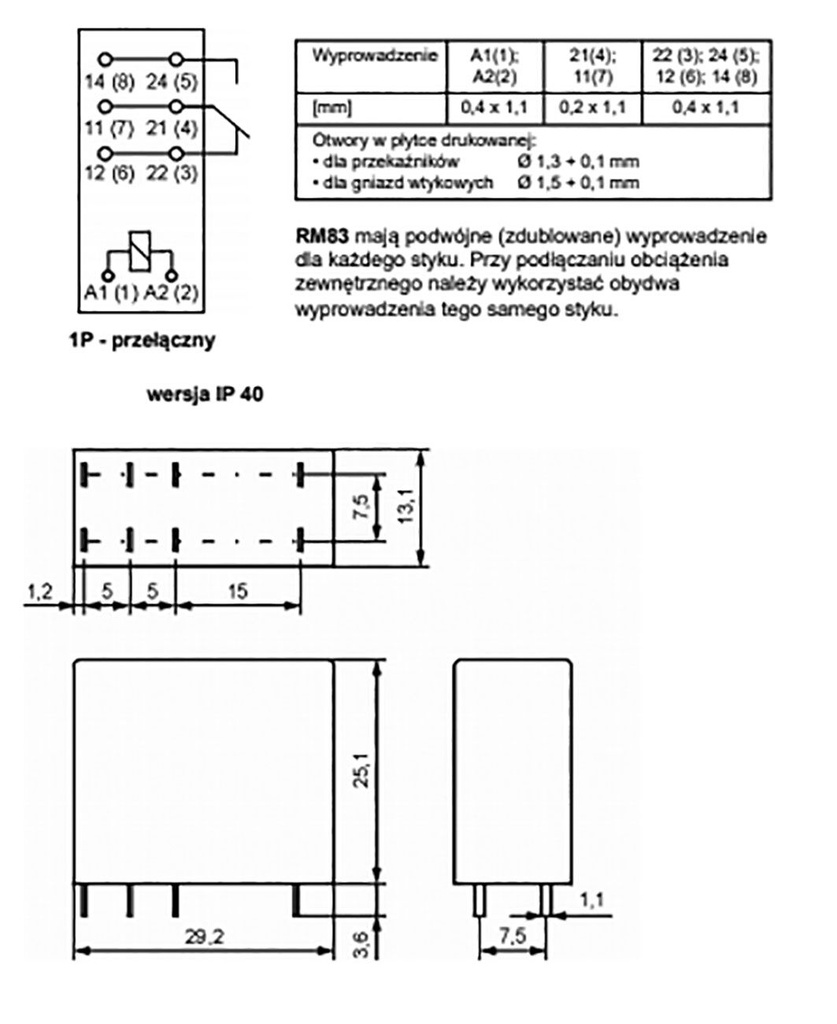

    Body dimensions 29.5x13.1x25.5mm
    Switched voltage max. 250V DC, max. 440V AC
    Coil resistance 260Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 16A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 16A / 250V AC
    Contact current max. 16A
    Relay variant miniature
    Coil voltage max. 21.2V DC
    Type of relay electromagnetic
    Coil voltage min. 8.4V DC
    Coil power consumption 0.6W
    Operate time 7ms
    Release time 3ms
