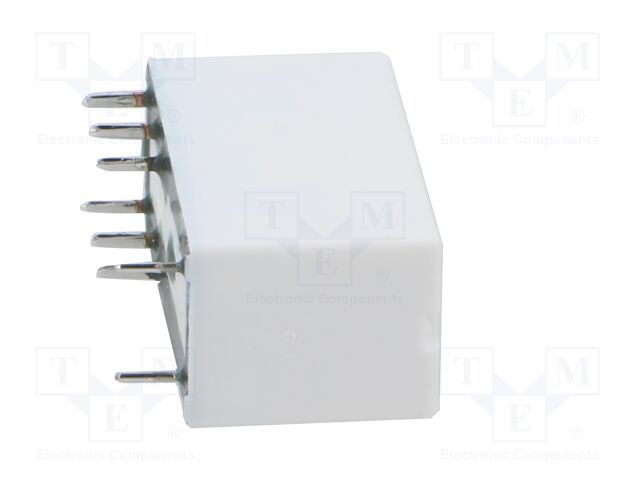

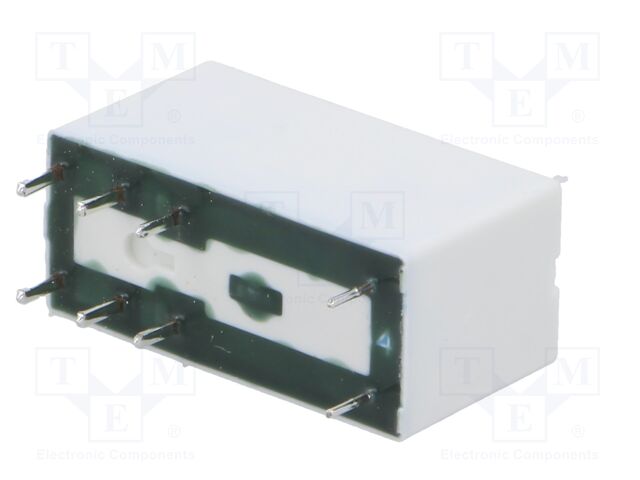

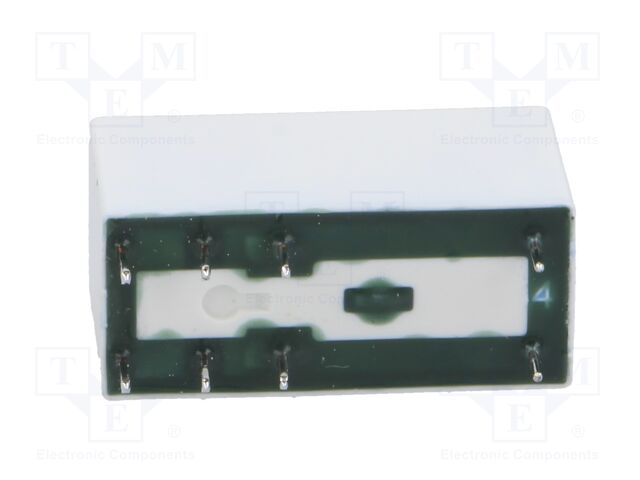

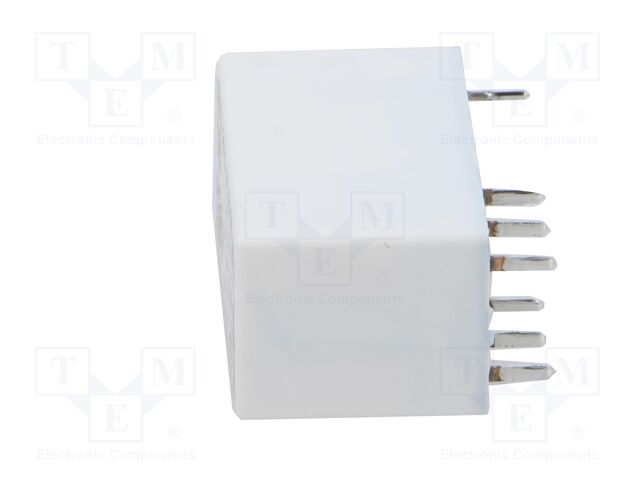

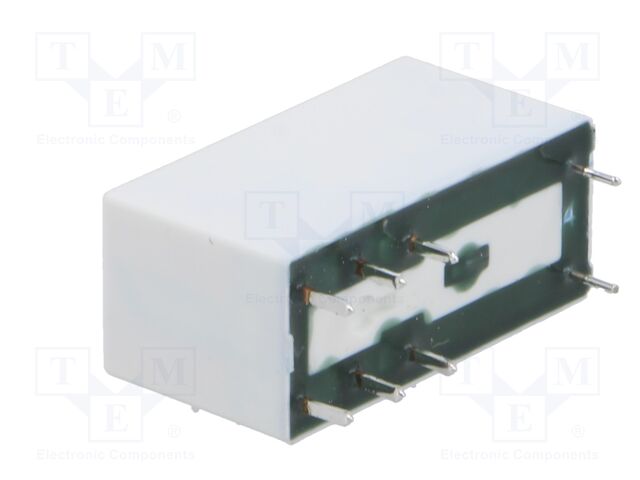

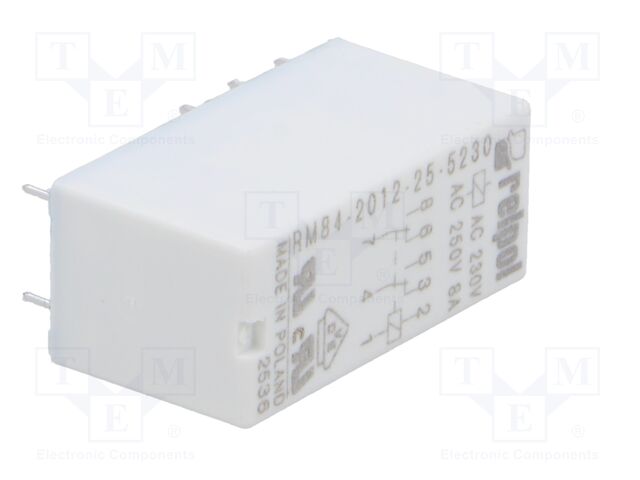

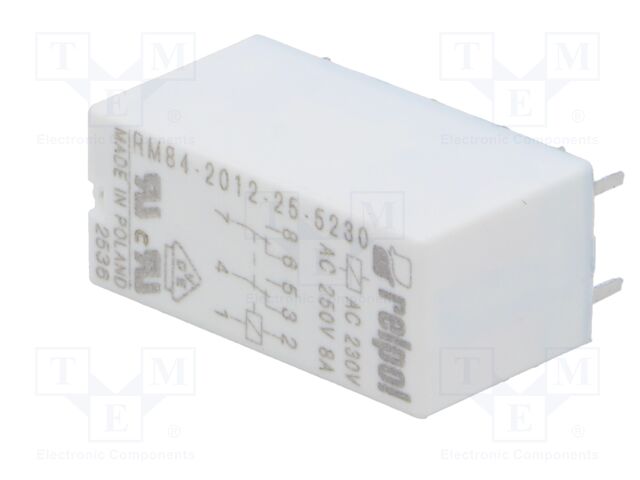

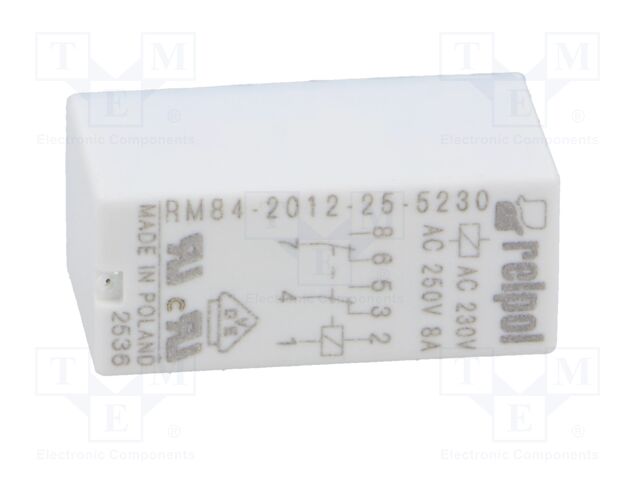

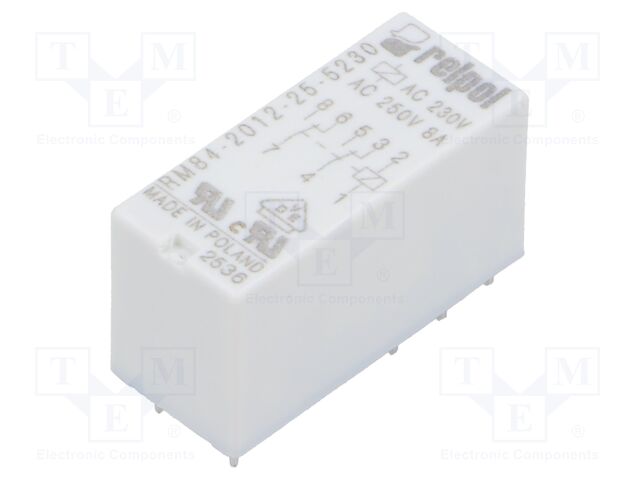

Relay: electromagnetic; DPDT; Ucoil: 230VAC; Icontacts max: 8A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: RM84-2012-25-5230
    Manufacturer: RELPOL
    Manufacturer code: RM84-2012-25-5230
    • Mounting
    • Mounting
    • Operating temperature
    • IP rating
    • Contact material
    • Body dimensions
    • Current rating
    • Switched voltage
    • Coil resistance
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Operate time
    • Release time

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Specification for Relay: electromagnetic; DPDT; Ucoil: 230VAC; Icontacts max: 8A

    Mounting PCB, socket
    Operating temperature -40...70°C
    IP rating IP40
    Contact material AgNi
    Body dimensions 29x12.7x15.7mm
    Current rating 8A
    Switched voltage max. 400V AC
    Coil resistance 38.5kΩ
    Contacts configuration DPDT
    DC contacts rating @R 8A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 8A / 250V AC
    Contact current max. 8A
    Relay variant miniature
    Type of relay electromagnetic
    Operate time 7ms
    Release time 3ms
