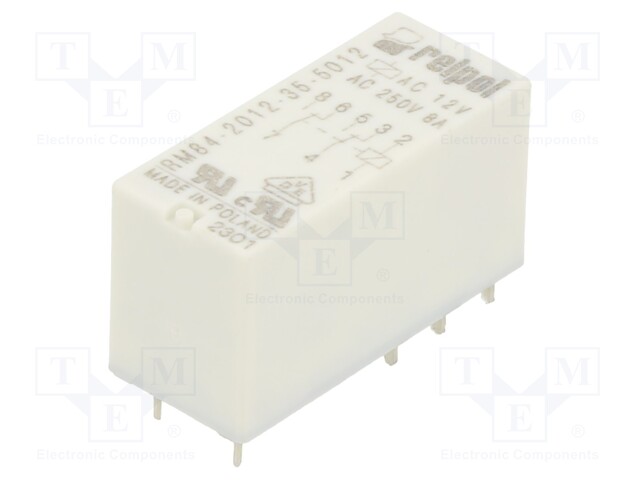

Relay: electromagnetic; DPDT; Ucoil: 12VAC; 8A; 8A/250VAC; 8A/24VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: RM84-2012-35-5012
    Manufacturer: RELPOL
    Manufacturer code: RM84-2012-35-5012
    • Mounting
    • Operating temperature
    • IP rating
    • Number of pins
    • Contact material
    • Terminal pitch
    • Height
    • Body colour
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time

    4.50 € 4.50 € (wo VAT) 4.5 EUR

    4.50 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPDT; Ucoil: 12VAC; 8A; 8A/250VAC; 8A/24VDC

    Mounting PCB
    Operating temperature -40...85°C
    IP rating IP67
    Number of pins 8
    Contact material AgNi
    Terminal pitch 5mm
    Height 15.7mm
    Body colour white
    Body dimensions 29x12.7x15.7mm
    Mechanical durability 30000000cycles
    Switched voltage max. 250V DC, max. 440V AC
    Coil resistance 100Ω
    Contacts configuration DPDT
    DC contacts rating @R 8A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 8A / 250V AC
    Contact current max. 8A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 0.75VA
    Operate time 7ms
    Release time 3ms
