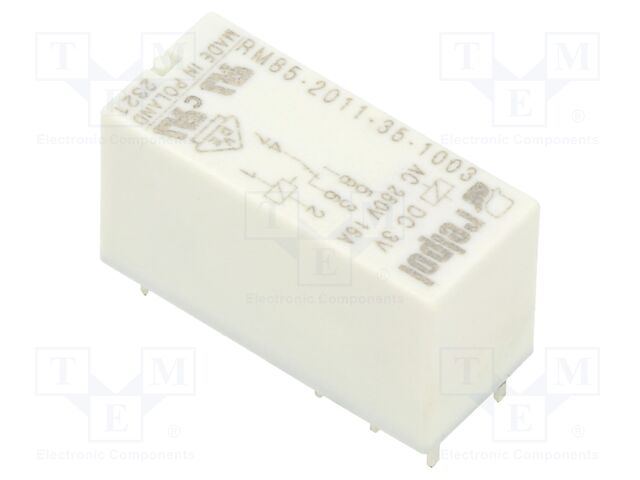

Relay: electromagnetic; SPDT; Ucoil: 3VDC; Icontacts max: 16A; RM85

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: RM85-2011-35-1003
    Manufacturer: RELPOL
    Manufacturer code: RM85-2011-35-1003
    • Mounting
    • Mounting
    • Operating temperature
    • IP rating
    • Contact material
    • Body dimensions
    • Current rating
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Specification for Relay: electromagnetic; SPDT; Ucoil: 3VDC; Icontacts max: 16A; RM85

    Mounting PCB, socket
    Operating temperature -40...85°C
    IP rating IP67
    Contact material AgNi
    Body dimensions 29x12.7x15.7mm
    Current rating 16A
    Switched voltage max. 400V AC
    Coil resistance 22Ω
    Rated coil voltage 3V DC
    Contacts configuration SPDT
    DC contacts rating @R 16A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 16A / 250V AC
    Contact current max. 16A
    Relay variant miniature
    Coil voltage max. 7.6V DC
    Type of relay electromagnetic
    Coil voltage min. 2.1V DC
    Coil power consumption 480mW
    Operate time 7ms
    Release time 3ms
