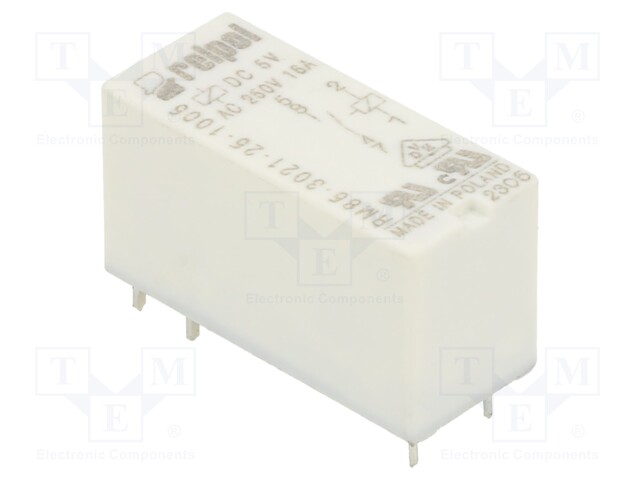

Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 16A/250VAC; toff: 3ms

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: RM85-3021-25-1005
    Manufacturer: RELPOL
    Manufacturer code: RM85-3021-25-1005
    • Mounting
    • Operating temperature
    • IP rating
    • Contact material
    • Terminal pitch
    • Body colour
    • Body dimensions
    • Current rating
    • Switched voltage
    • Switched voltage
    • Max surge current
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time

    2.33 € 2.33 € (wo VAT) 2.33 EUR

    2.33 €

    This combination does not exist.

    Add to Cart

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 16A/250VAC; toff: 3ms

    Mounting PCB
    Operating temperature -40...85°C
    IP rating IP40
    Contact material AgSnO<sub>2</sub>
    Terminal pitch 5mm
    Body colour white
    Body dimensions 29x12.7x15.7mm
    Current rating 16A
    Switched voltage max. 250V DC, max. 440V AC
    Max surge current 30A
    Coil resistance 60Ω
    Rated coil voltage 5V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 16A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 16A / 250V AC
    Contact current max. 16A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 480mW
    Operate time 8ms
    Release time 3ms
