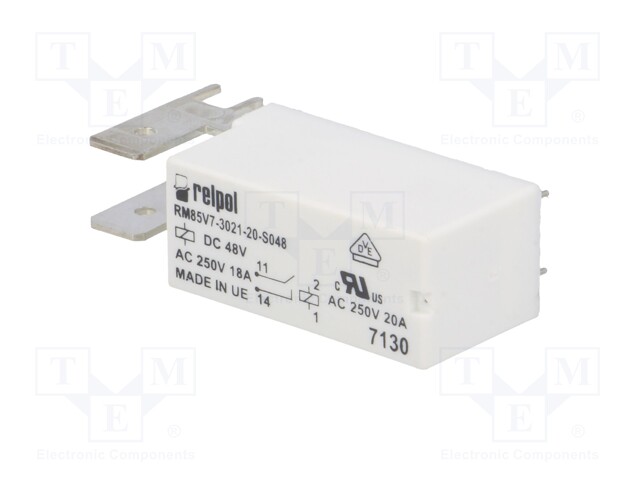

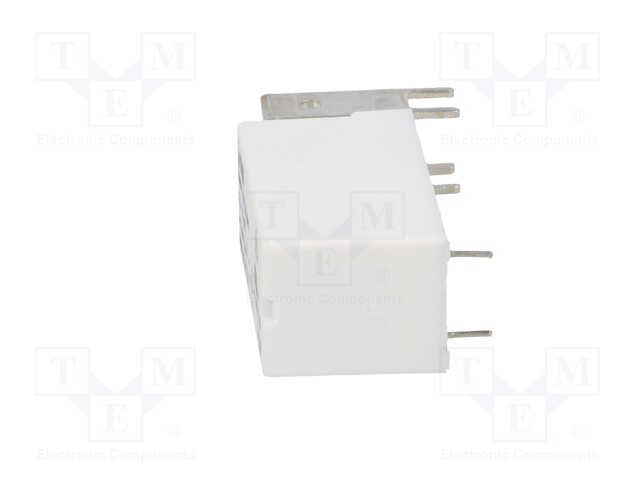

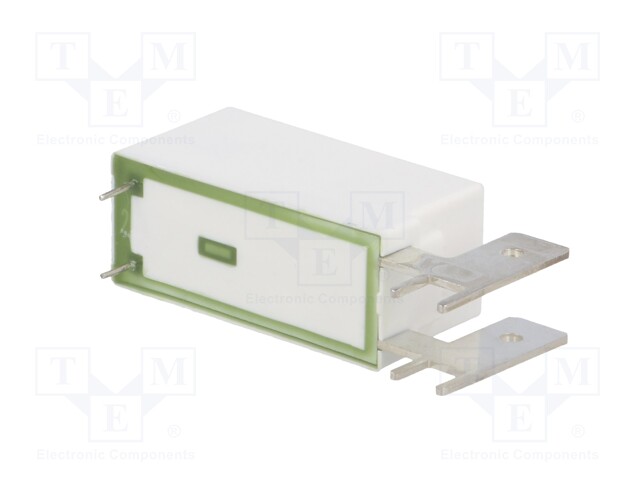

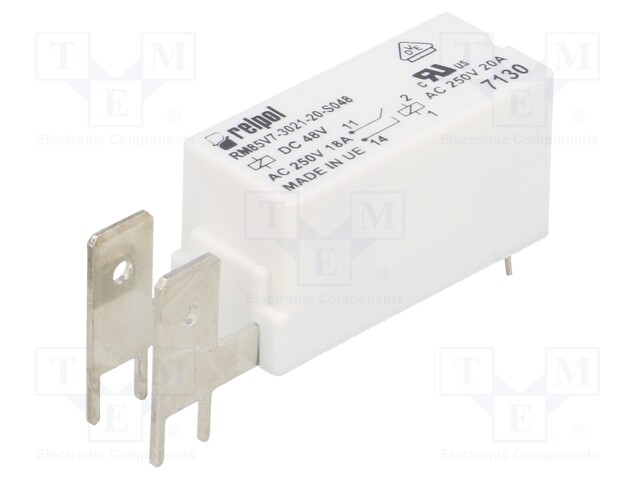

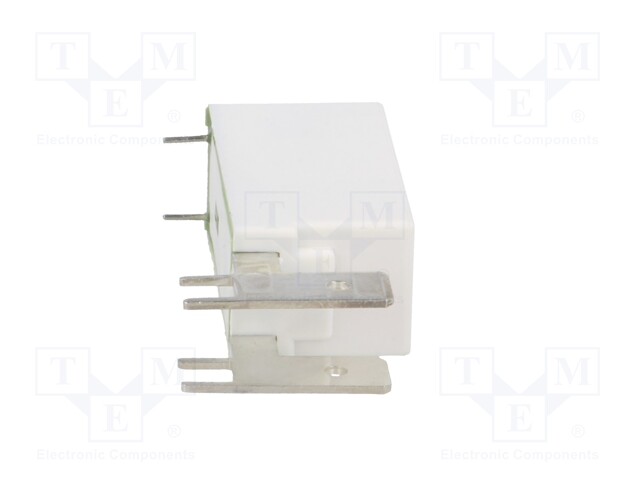

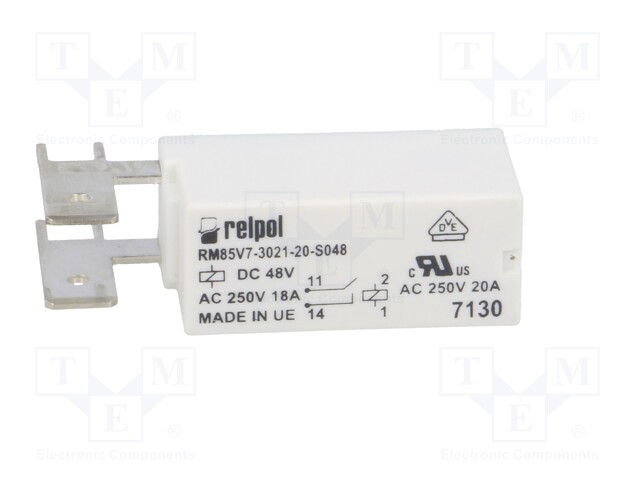

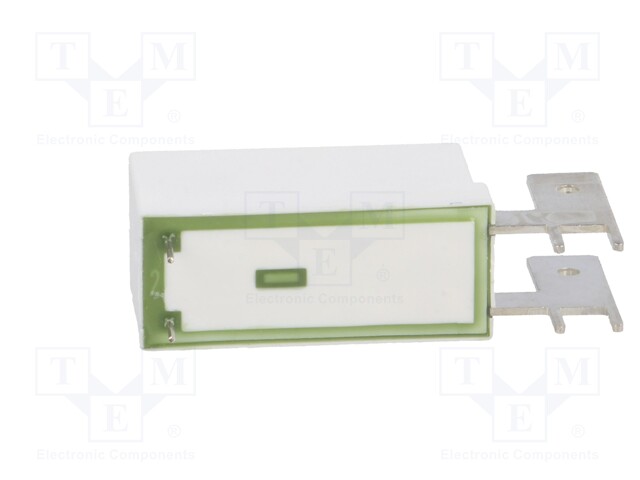

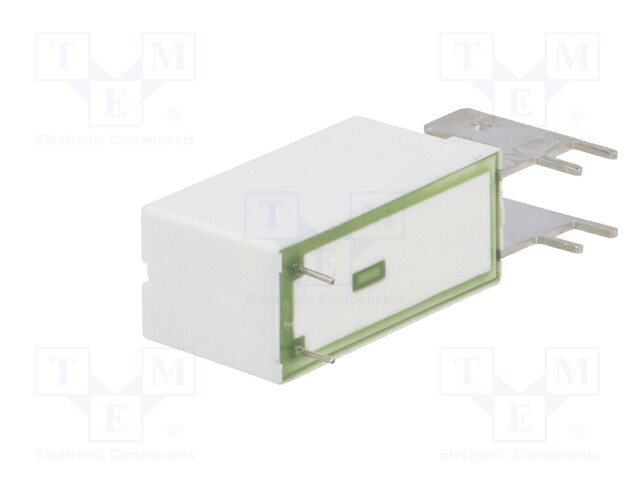

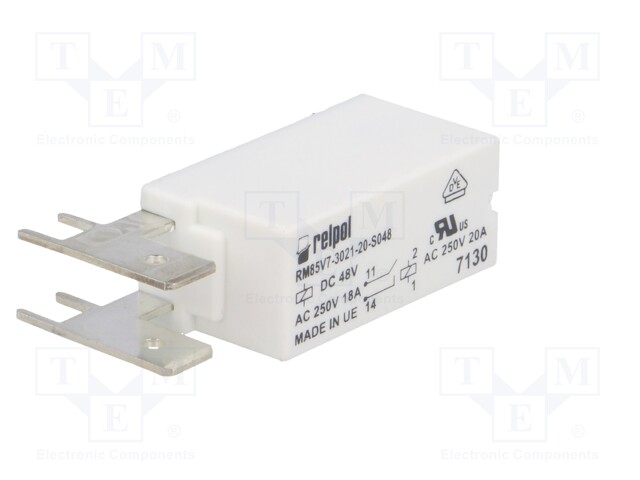

Relay: electromagnetic; SPST-NO; Ucoil: 48VDC; 20A/250VAC; 20A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: RM85V7-3021-20-S048
    Manufacturer: RELPOL
    Manufacturer code: RM85V7-3021-20-S048
    • Mounting
    • Operating temperature
    • IP rating
    • Leads
    • Leads
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    15.27 € 15.27 € (wo VAT) 15.27 EUR

    15.27 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 48VDC; 20A/250VAC; 20A

    Mounting PCB
    Operating temperature -40...105°C
    IP rating IP40
    Leads for PCB, connectors

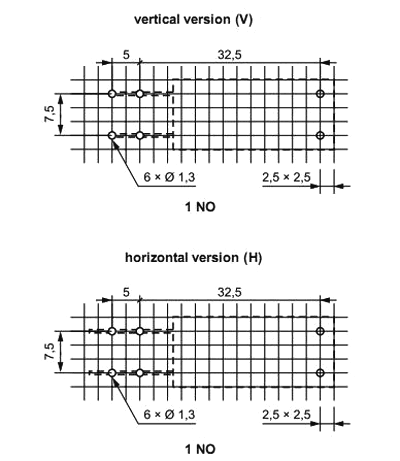

    Terminal pitch 7.5mm

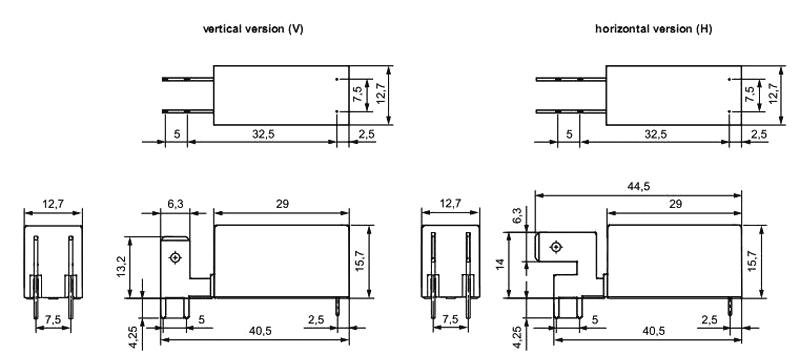

    Body dimensions 29x12.7x15.7mm
    Switched voltage max. 250V DC, max. 440V AC
    Coil resistance 9.34kΩ
    Rated coil voltage 48V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 20A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 20A / 250V AC
    Contact current max. 20A
    Relay variant miniature
    Coil voltage max. 144V DC
    Type of relay electromagnetic
    Coil voltage min. 36V DC
    Coil power consumption 250mW
    Operate time 8ms
    Release time 3ms
