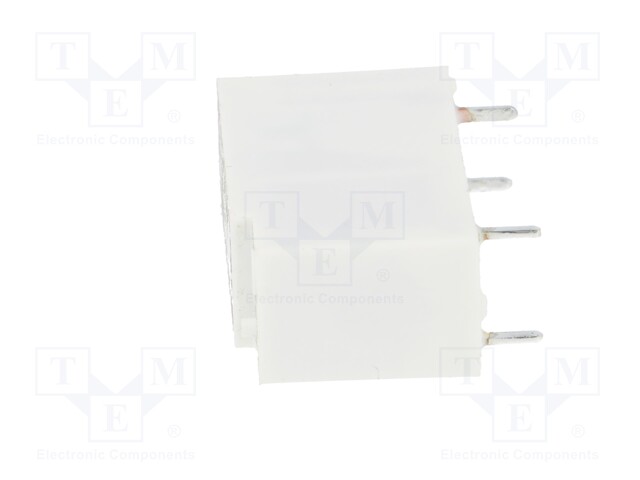

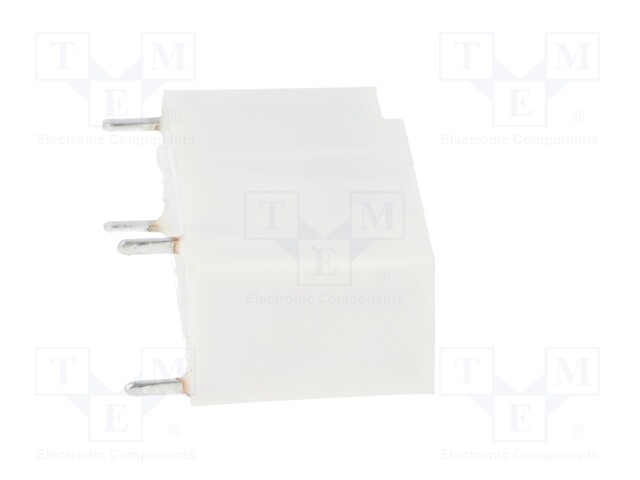

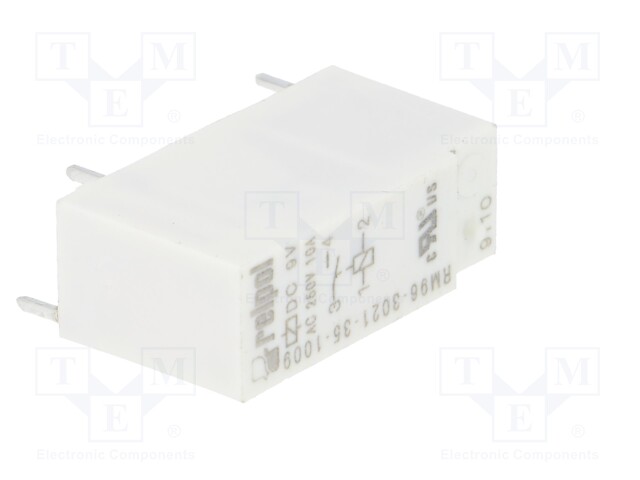

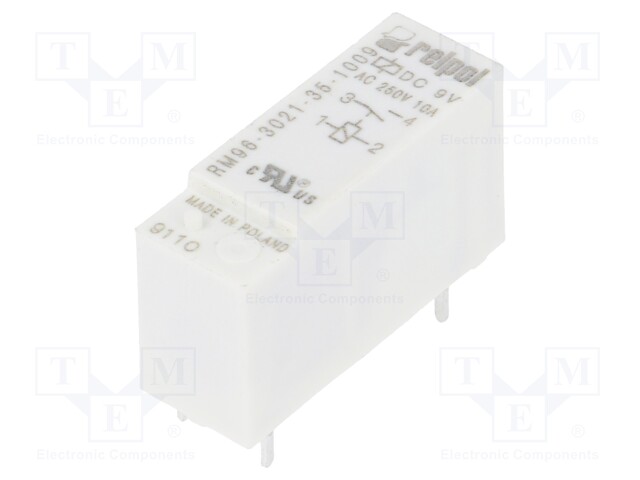

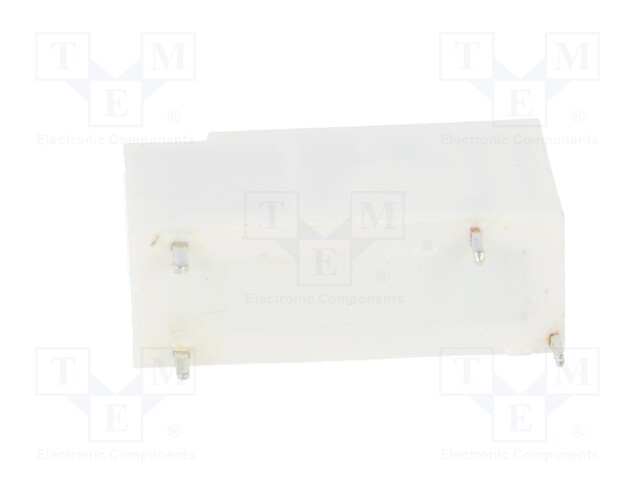

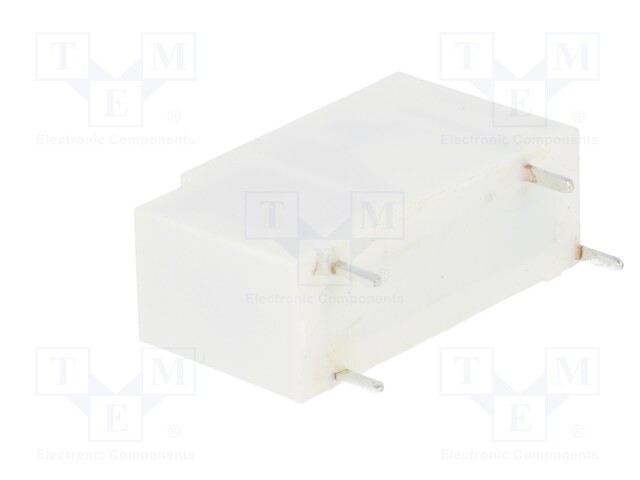

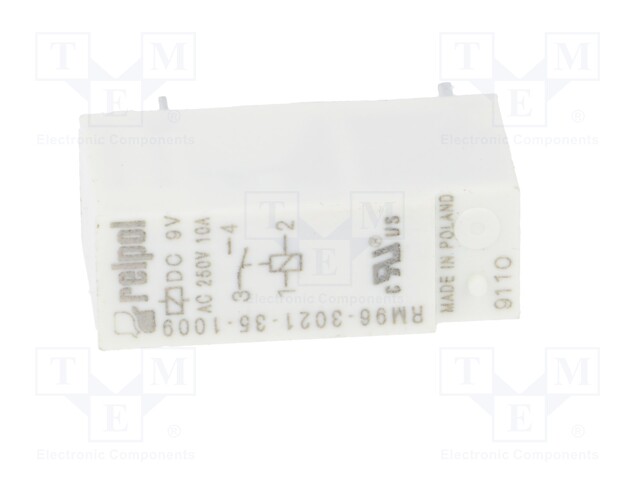

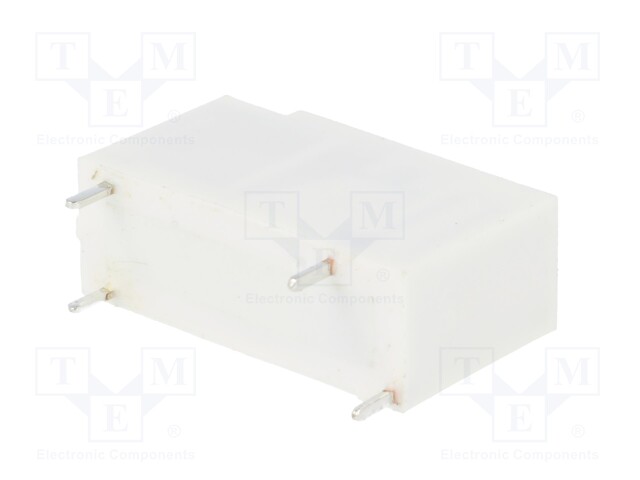

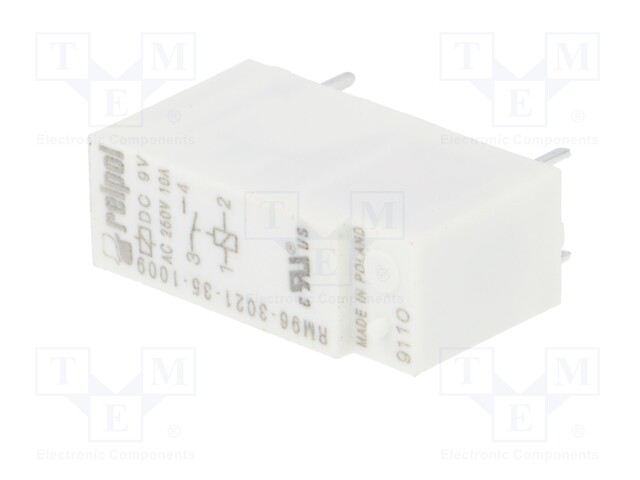

Relay: electromagnetic; SPST-NO; Ucoil: 9VDC; 8A/250VAC; 8A/24VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: RM96-3021-35-1009
    Manufacturer: RELPOL
    Manufacturer code: RM96-3021-35-1009
    • Mounting
    • Operating temperature
    • IP rating
    • Number of pins
    • Contact material
    • Terminal pitch
    • Height
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time
    • OEM number

    3.32 € 3.32 € (wo VAT) 3.3200000000000003 EUR

    3.32 €

    This combination does not exist.

    Add to Cart

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 9VDC; 8A/250VAC; 8A/24VDC

    Mounting PCB
    Operating temperature -40...80°C
    IP rating IP67
    Number of pins 4
    Contact material AgSnO<sub>2</sub>
    Terminal pitch 5mm
    Height 16.2mm
    Body dimensions 28x10x16.2mm
    Mechanical durability 20000000cycles
    Switched voltage max. 120V DC, max. 440V AC
    Coil resistance 360Ω
    Rated coil voltage 9V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 8A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 8A / 250V AC
    Contact current max. 8A
    Relay variant miniature
    Coil voltage max. 22V DC
    Type of relay electromagnetic
    Coil voltage min. 6.3V DC
    Coil power consumption 300mW
    Operate time 10ms
    Release time 5ms
    OEM number 852856
