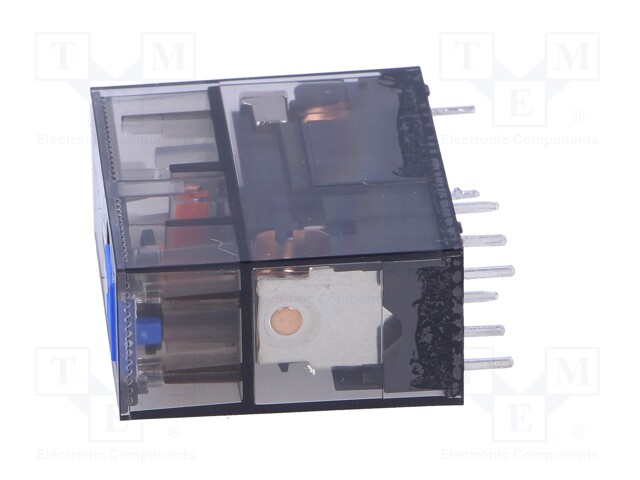

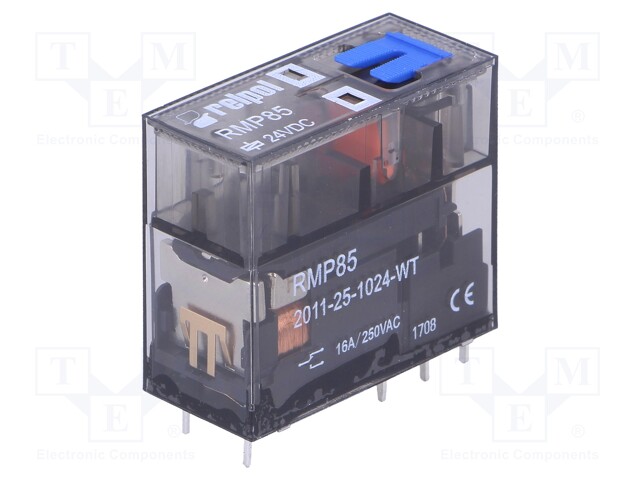

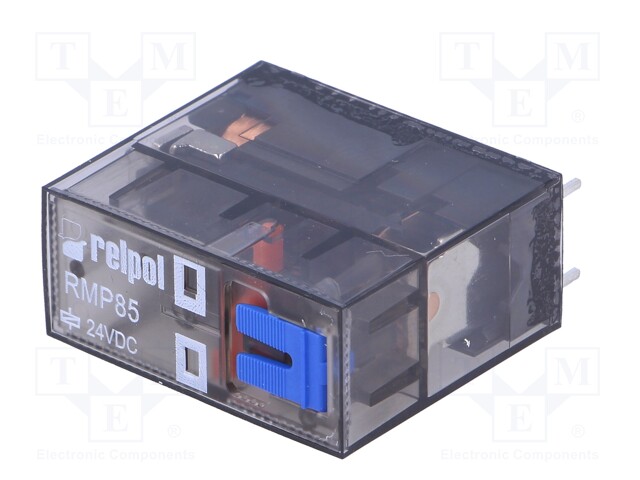

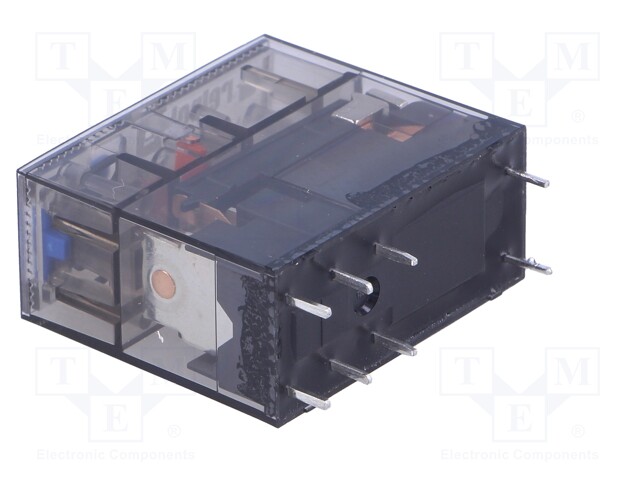

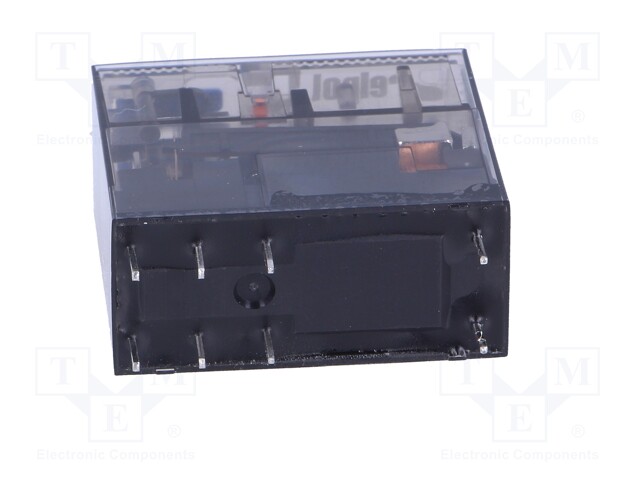

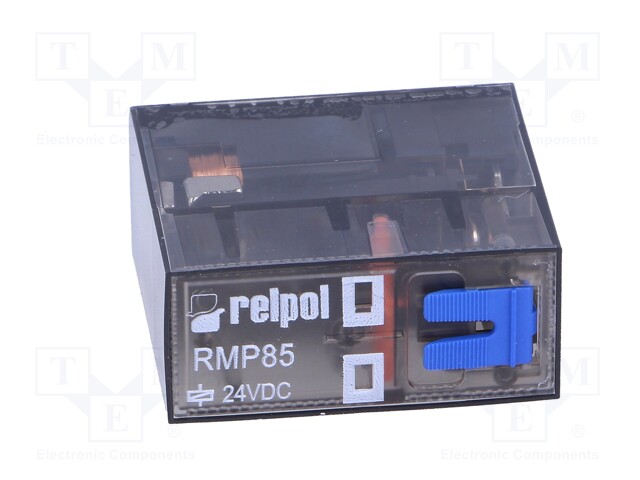

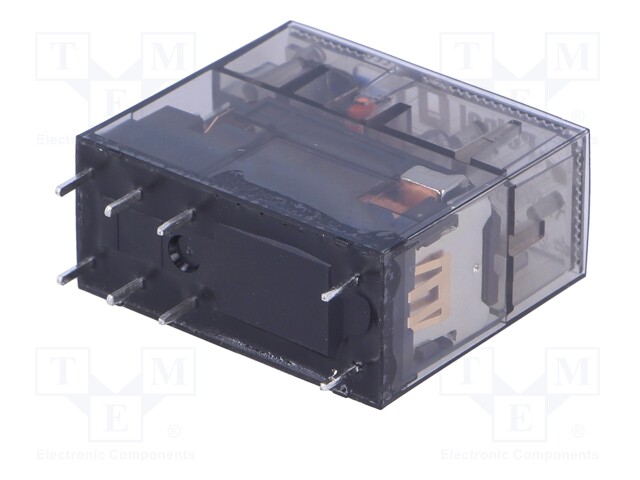

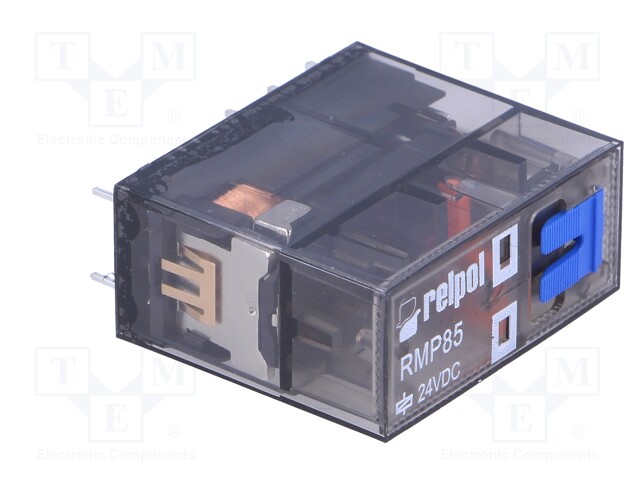

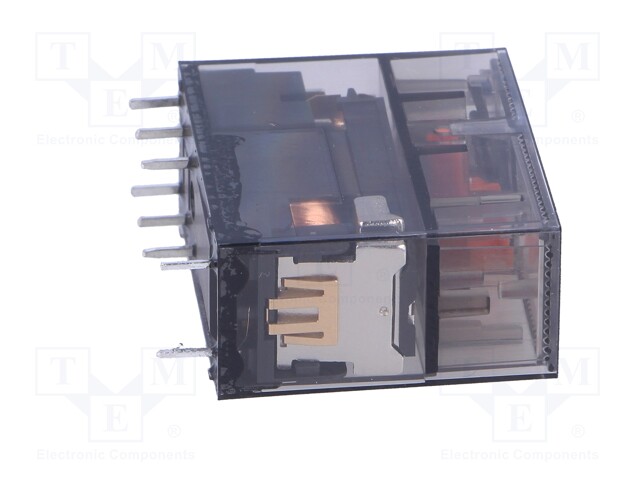

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 16A/250VAC; 16A/24VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: RMP85-2011-25-1024-WT
    Manufacturer: RELPOL
    Manufacturer code: RMP85-2011-25-1024-WT
    • Mounting
    • Operating temperature
    • IP rating
    • Number of pins
    • Contact material
    • Terminal pitch
    • Height
    • Body colour
    • Body dimensions
    • Mechanical durability
    • Insulation voltage
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    9.60 € 9.60 € (wo VAT) 9.6 EUR

    9.60 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 24VDC; 16A/250VAC; 16A/24VDC

    Mounting PCB
    Operating temperature -40...70°C
    IP rating IP40
    Number of pins 8
    Contact material AgNi
    Terminal pitch 5.04mm
    Height 25.5mm
    Body colour transparent tinted

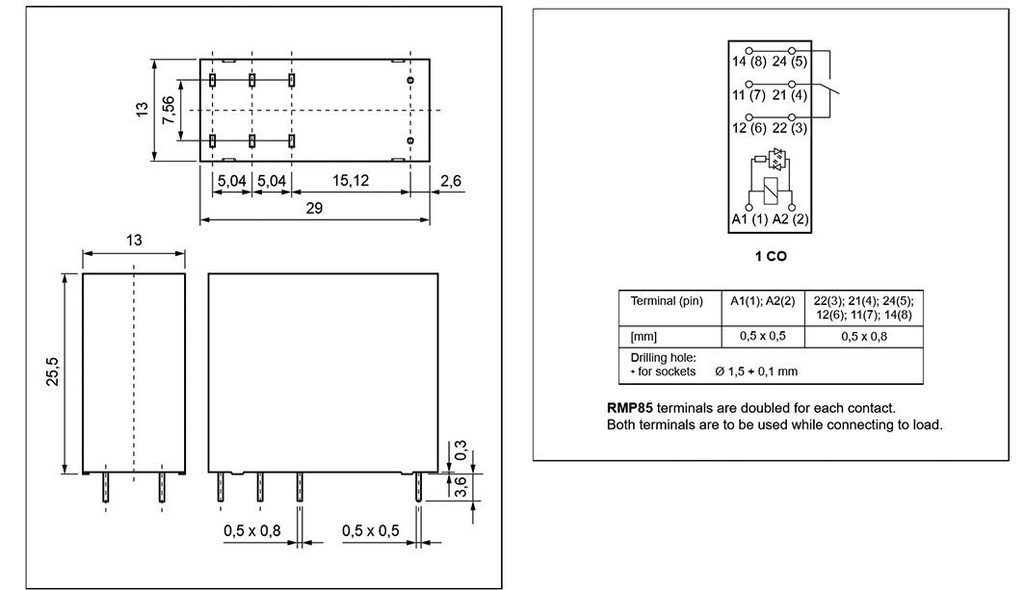

    Body dimensions 29x13x25.5mm
    Mechanical durability 5000000cycles
    Insulation voltage 5kV
    Switched voltage max. 250V DC, max. 440V AC
    Coil resistance 1.44kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 16A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 16A / 250V AC
    Contact current max. 16A
    Relay variant miniature
    Coil voltage max. 36V DC
    Type of relay electromagnetic
    Coil voltage min. 16.8V DC
    Coil power consumption 480mW
    Operate time 15ms
    Release time 8ms
