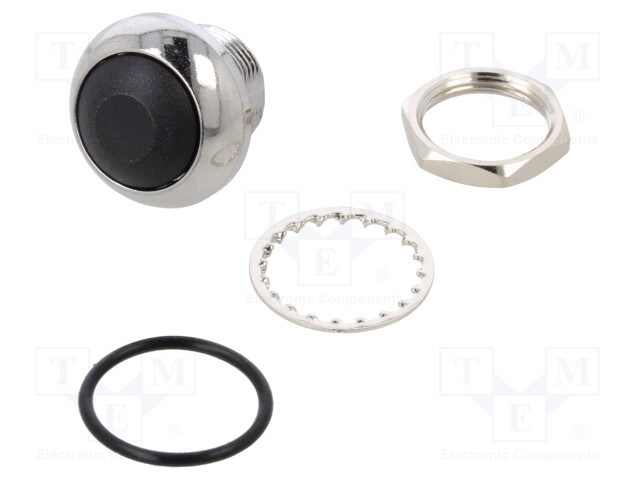

Switch: push-button; Pos: 2; SPST-NO; 0.2A/50VDC; 0.5A/48VAC; black

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: RP8300B2M1CECHRBLKNIL-1
    Manufacturer: E-SWITCH
    Manufacturer code: RP8300B2M1CECHRBLKNIL
    • Mounting
    • Operating temperature
    • Type of switch
    • Contact plating
    • Number of positions
    • Leads
    • Contact material
    • Max. contact resistance:
    • Terminal pitch
    • Mounting hole diameter
    • Body colour
    • Illumination
    • Min. insulation resistance
    • Electrical life
    • Key stroke
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Operating Force
    • Actuator colour
    • Button shape
    • Button height
    • Button marking

    8.63 € 8.63 € (wo VAT) 8.63 EUR

    8.63 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Switch: push-button; Pos: 2; SPST-NO; 0.2A/50VDC; 0.5A/48VAC; black

    Mounting on panel
    Operating temperature -30...85°C
    Type of switch push-button
    Contact plating gold-plated
    Number of positions 2
    Leads connectors
    Contact material silver
    Max. contact resistance: 50mΩ
    Terminal pitch 5.08mm
    Mounting hole diameter Ø13.6mm
    Body colour silver
    Illumination none
    Min. insulation resistance 1GΩ
    Electrical life 500000cycles
    Key stroke 1.5mm
    Contacts configuration SPST-NO
    DC contacts rating @R 0.2A / 50V DC
    AC contacts rating @R 0.5A / 48V AC
    Switching method OFF-(ON)
    Stable positions number 1
    Operating Force 3.5N
    Actuator colour black
    Button shape round
    Button height 7mm
    Button marking blank
