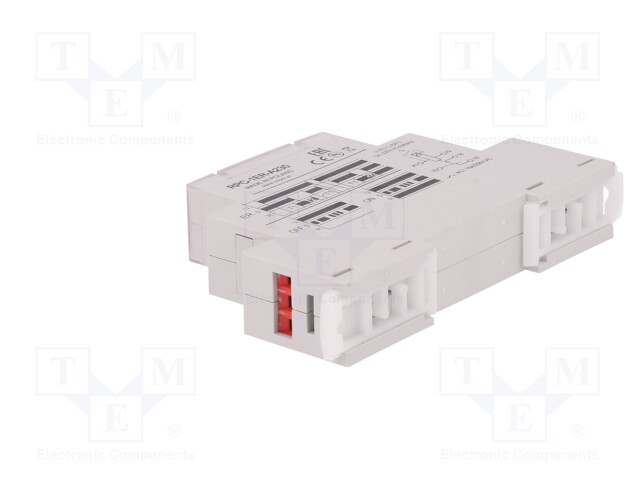

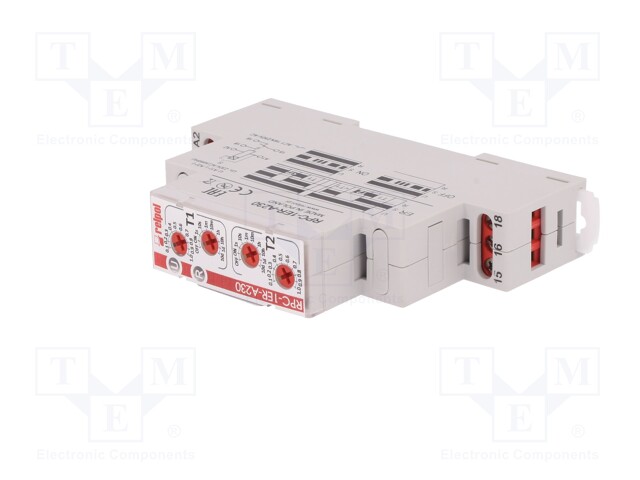

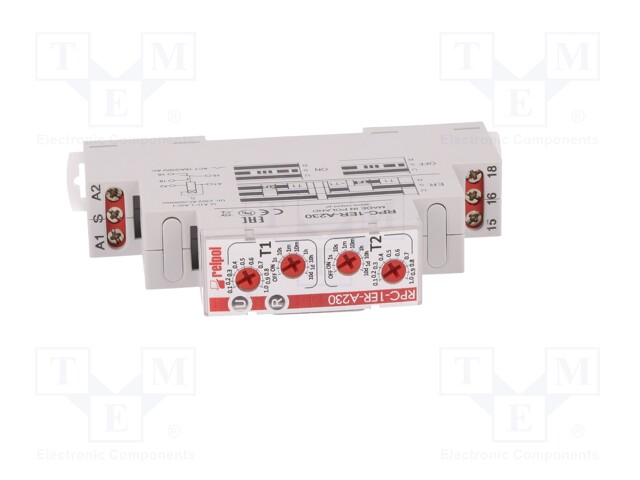

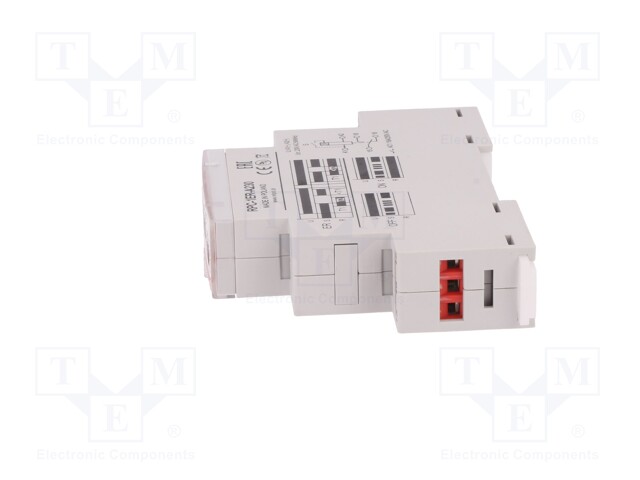

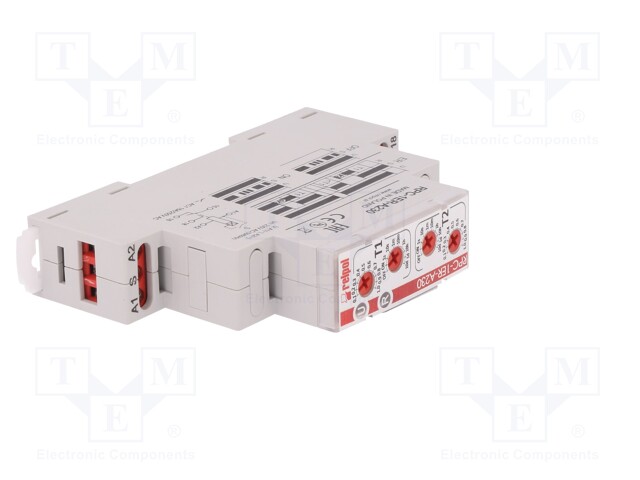

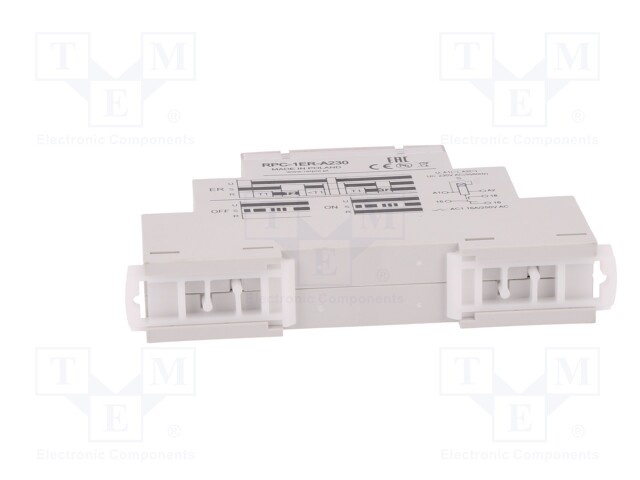

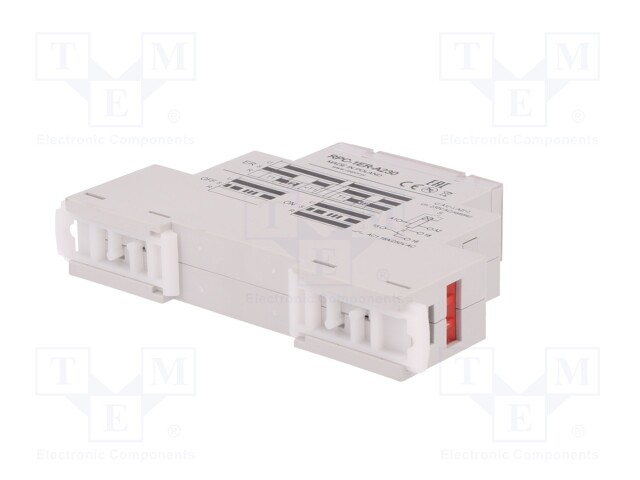

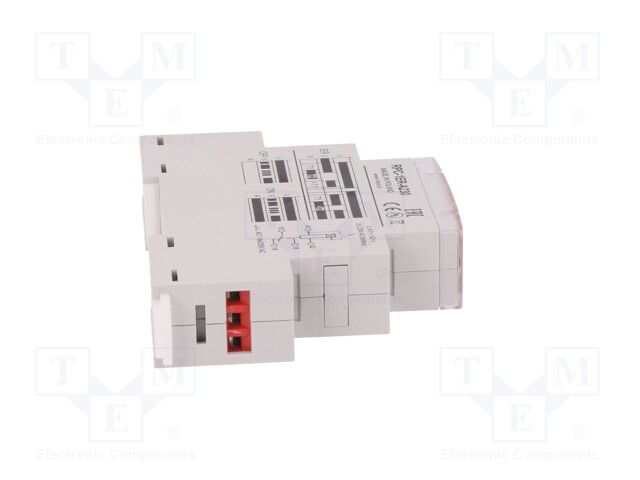

Timer; 1s÷10days; SPDT; 24VDC/16A,250VAC/16A; 230VAC; DIN; PIN: 6

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: RPC-1ER-A230
    Manufacturer: RELPOL
    Manufacturer code: RPC-1ER-A230
    • Mounting
    • Supply voltage
    • Operating temperature
    • IP rating
    • Number of pins
    • Contact material
    • Body dimensions
    • Kind of output
    • Indication
    • Electrical connection
    • Counting range
    • Counter operation modes
    • number of operation modes
    • OEM number
    • The additional control inputs

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Timer; 1s÷10days; SPDT; 24VDC/16A,250VAC/16A; 230VAC; DIN; PIN: 6

    Mounting for DIN rail mounting
    Supply voltage 230V AC
    Operating temperature -20...50°C
    IP rating IP20
    Number of pins 6
    Contact material AgSnO<sub>2</sub>
    Body dimensions 90x17.5x64.6mm
    Kind of output SPDT
    Indication LED
    Electrical connection screw terminals
    Counting range 1s...10days
    Counter operation modes cyclic work with independent T1 and T2 times controlled by the S contact
    number of operation modes 1
    OEM number 863203
    The additional control inputs STOP
