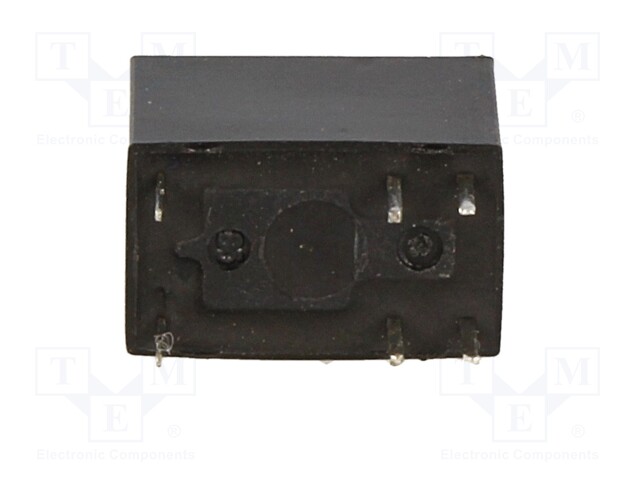

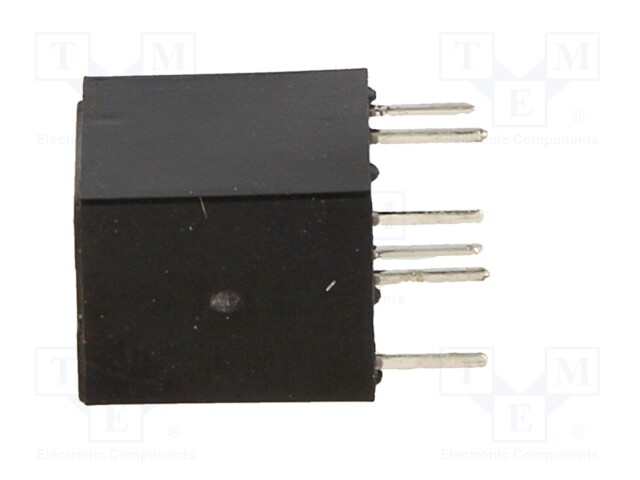

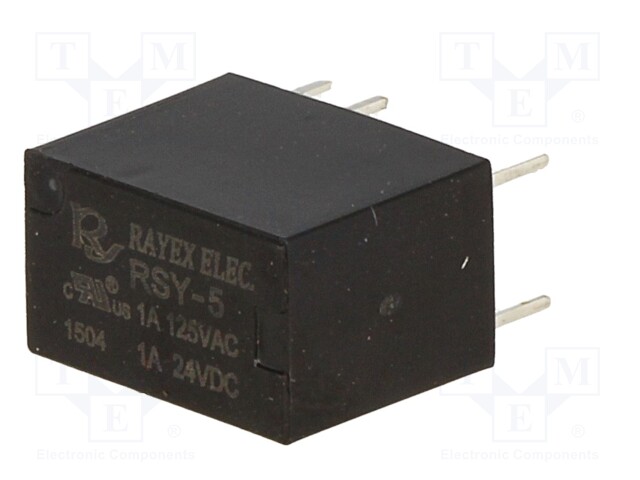

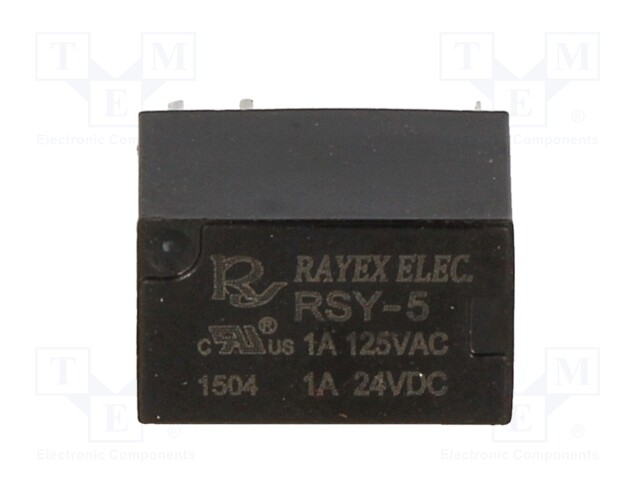

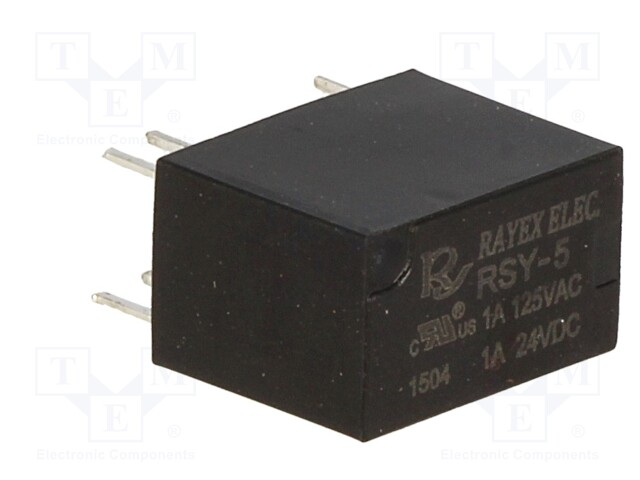

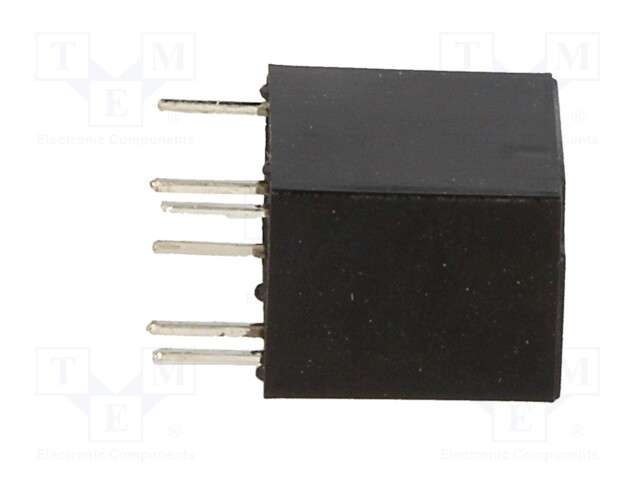

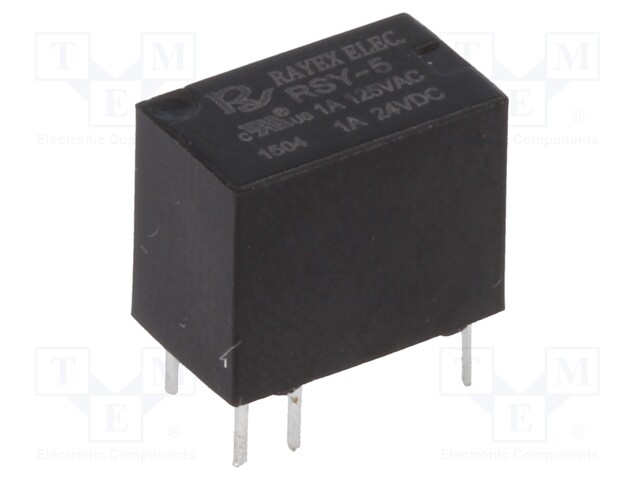

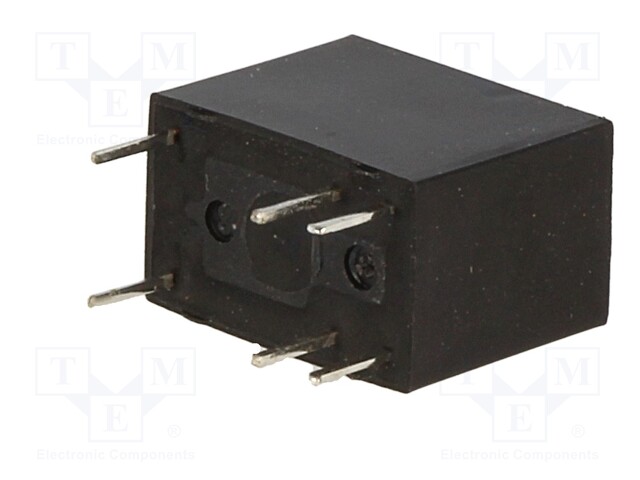

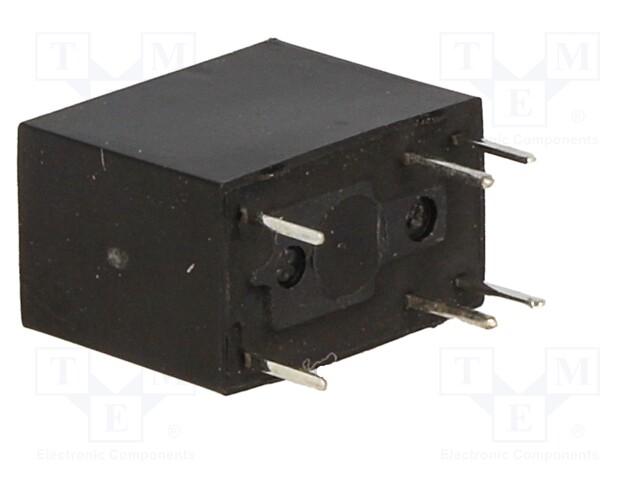

Relay: electromagnetic; SPDT; Ucoil: 5VDC; 0.5A/125VAC; 1A/24VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: RSY-5
    Manufacturer: RAYEX ELECTRONICS
    Manufacturer code: RSY-5
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Operate time
    • Release time
    • Coil current

    1.62 € 1.62 € (wo VAT) 1.62 EUR

    1.62 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 5VDC; 0.5A/125VAC; 1A/24VDC

    Mounting PCB
    Operating temperature -25...55°C
    Contact material AgCdO
    Terminal pitch 2.54mm
    Body dimensions 12.4x7.4x9.9mm
    Switched voltage max. 24V DC, max. 125V AC
    Coil resistance 167Ω
    Rated coil voltage 5V DC
    Contacts configuration SPDT
    DC contacts rating @R 1A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 0.5A / 125V AC
    Contact current max. 1A
    Relay variant subminiature
    Type of relay electromagnetic
    Operate time 4ms
    Release time 3ms
    Coil current 30mA
