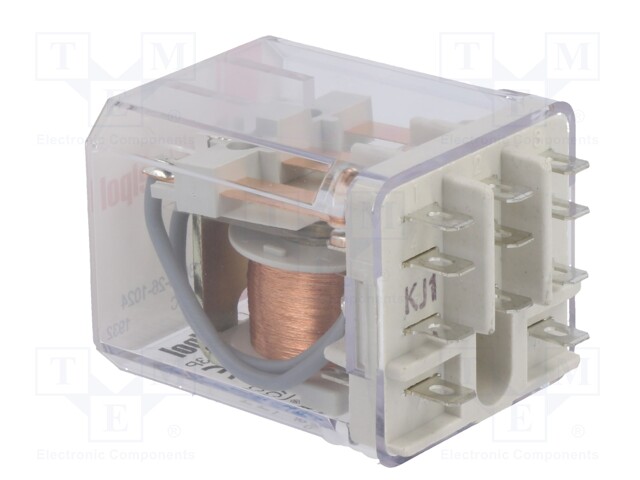

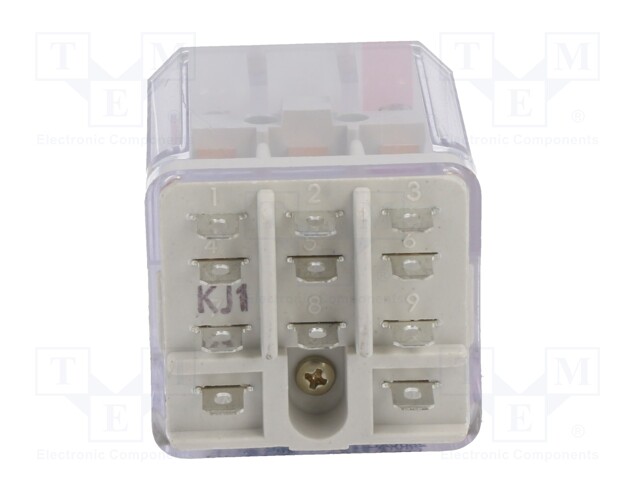

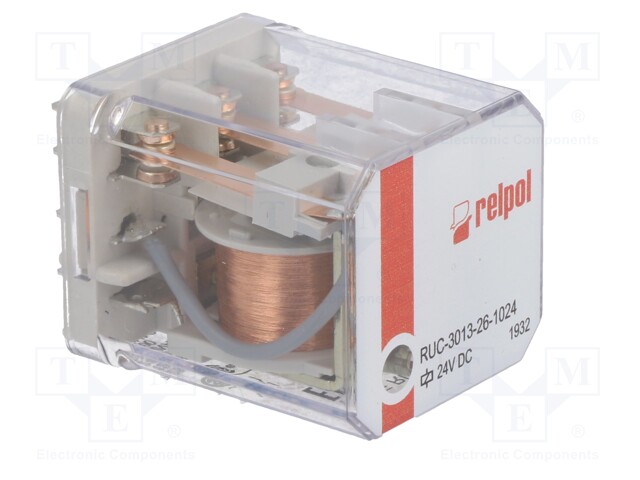

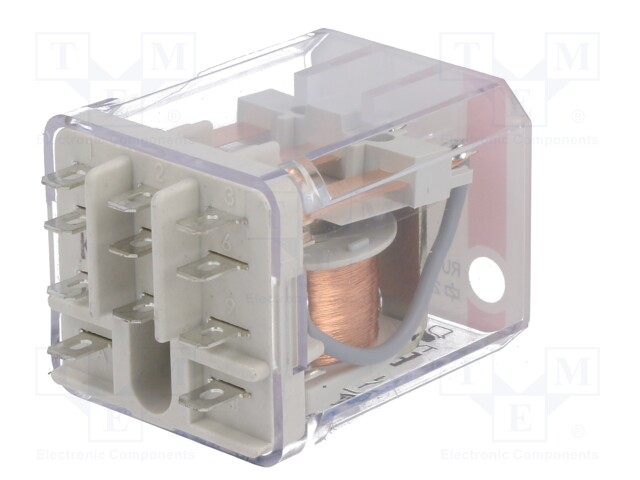

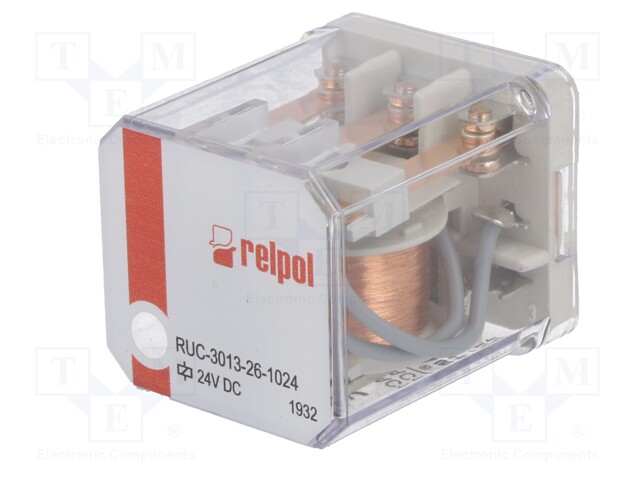

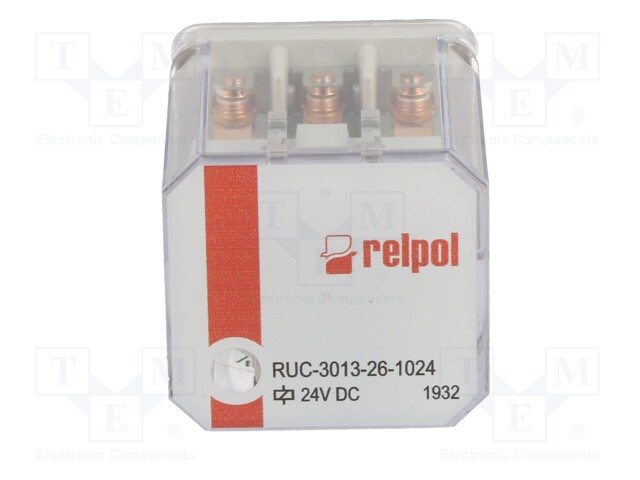

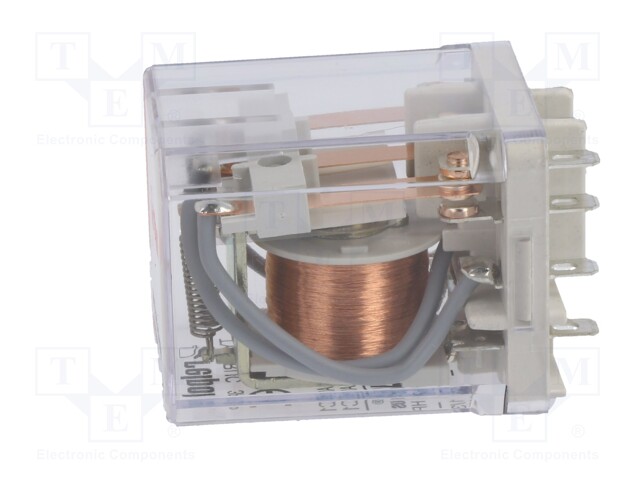

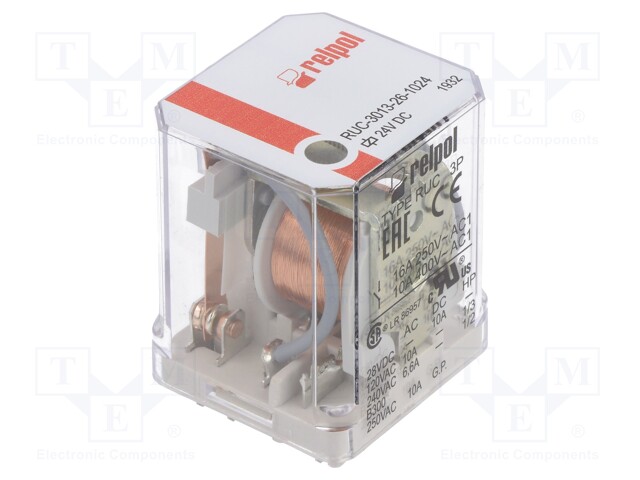

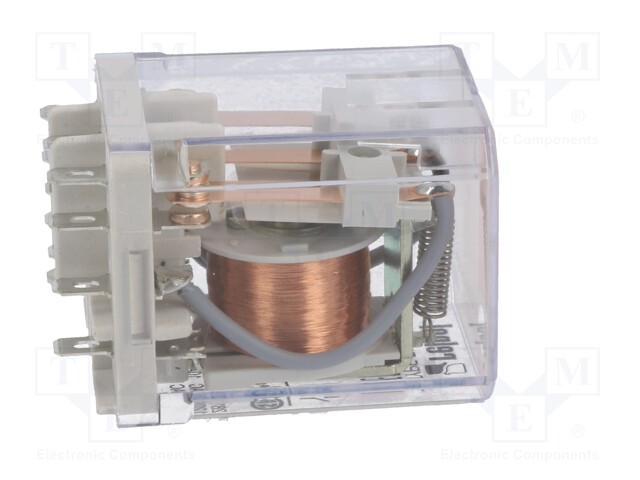

Relay: electromagnetic; 3PDT; Ucoil: 24VDC; 16A/250VAC; 16A/24VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: RUC-3013-26-1024
    Manufacturer: RELPOL
    Manufacturer code: RUC-3013-26-1024
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Max surge current
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • OEM number

    21.99 € 21.99 € (wo VAT) 21.990000000000002 EUR

    21.99 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; 3PDT; Ucoil: 24VDC; 16A/250VAC; 16A/24VDC

    Mounting socket
    Operating temperature -40...55°C
    Leads connectors
    Contact material AgSnO<sub>2</sub>

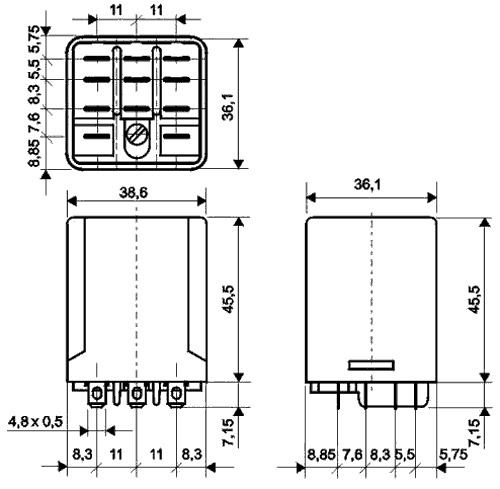

    Body dimensions 36.1x38.6x52.7mm
    Switched voltage max. 250V DC, max. 440V AC
    Max surge current 40A
    Coil resistance 430Ω
    Rated coil voltage 24V DC
    Contacts configuration 3PDT
    DC contacts rating @R 16A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 16A / 250V AC
    Contact current max. 16A
    Relay variant industrial
    Type of relay electromagnetic
    Coil power consumption 1.7W
    OEM number 862682
