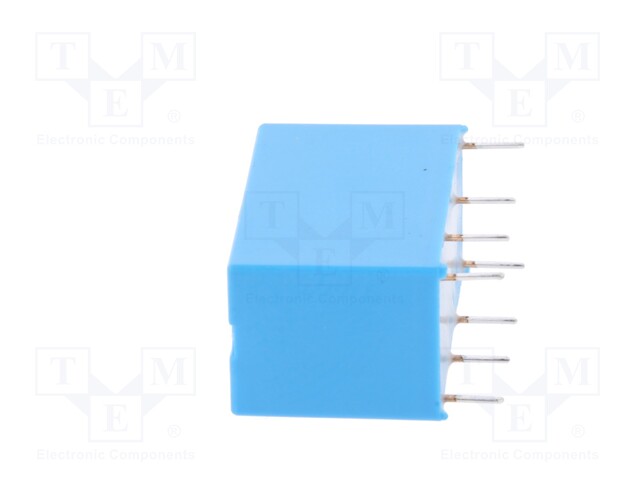

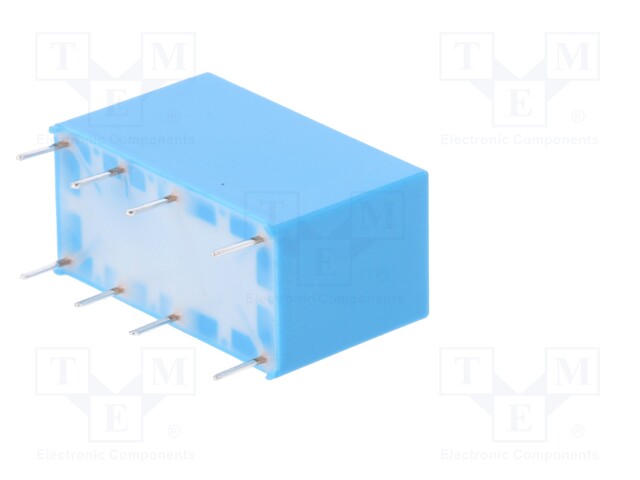

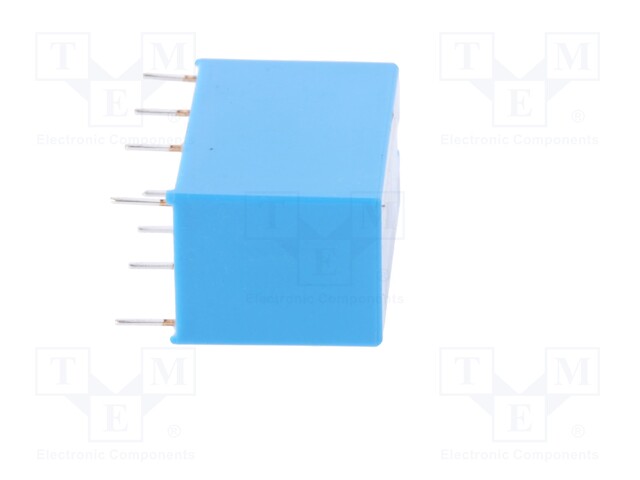

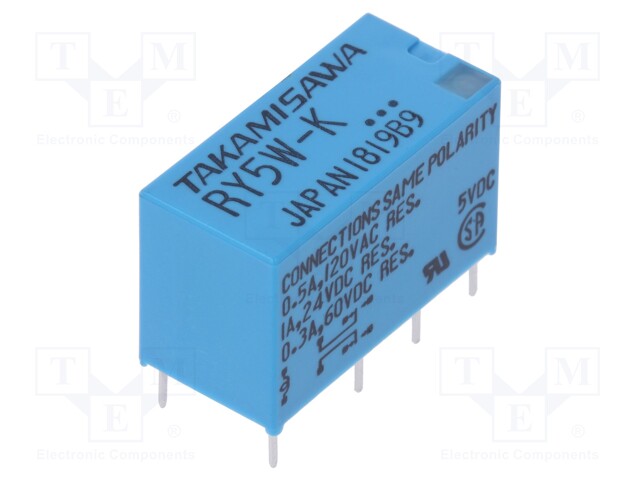

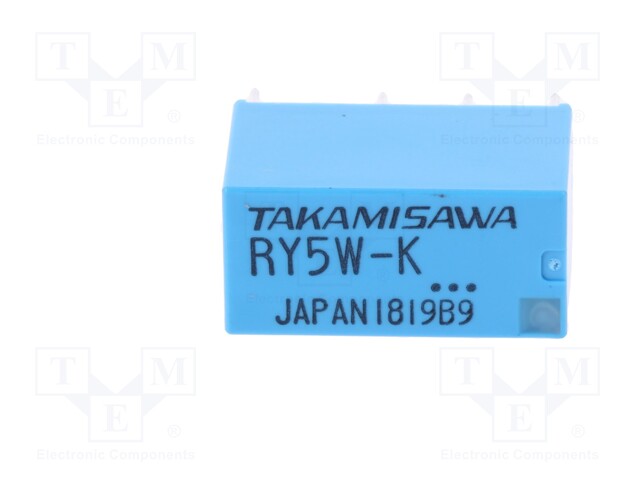

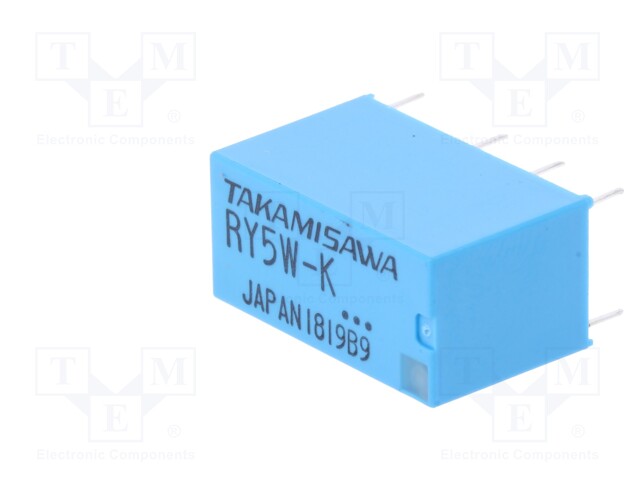

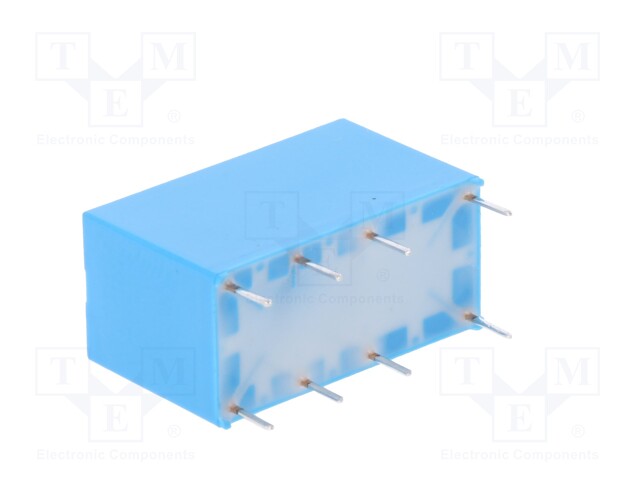

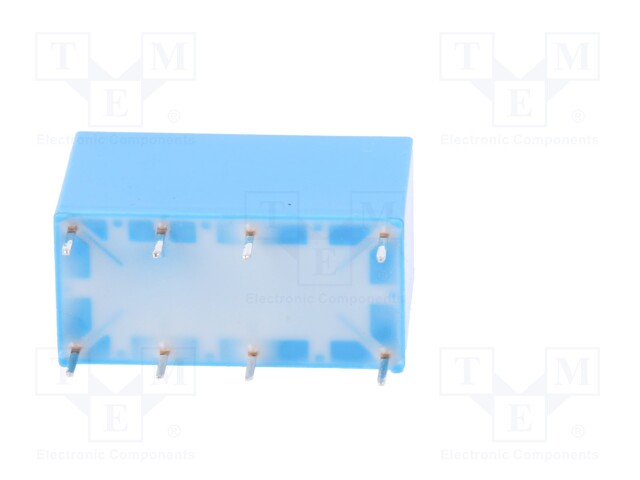

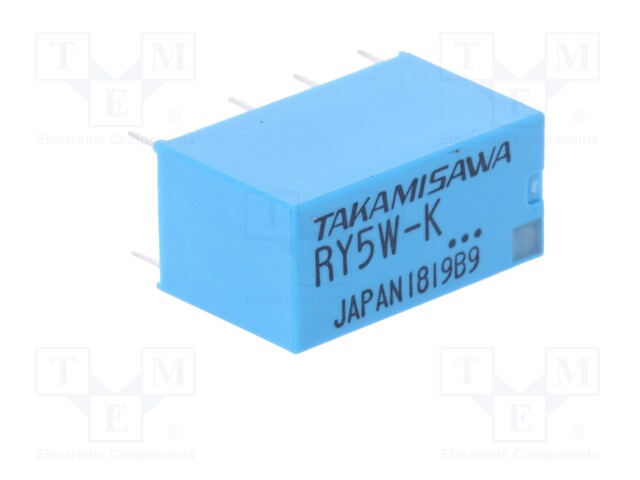

Relay: electromagnetic; DPDT; Ucoil: 5VDC; 0.5A/120VAC; 1A/24VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: RY-5W-K
    Manufacturer: FUJITSU
    Manufacturer code: RY-5W-K
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time

    2.97 € 2.97 € (wo VAT) 2.97 EUR

    2.97 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPDT; Ucoil: 5VDC; 0.5A/120VAC; 1A/24VDC

    Mounting PCB
    Operating temperature -30...90°C
    Contact plating gold-plated
    Contact material AgPd/Au 0,2μm

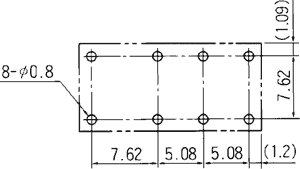

    Terminal pitch 5mm
    Body dimensions 20.2x9.8x12.5mm
    Switched voltage max. 60V DC, max. 120V AC
    Coil resistance 165Ω
    Rated coil voltage 5V DC

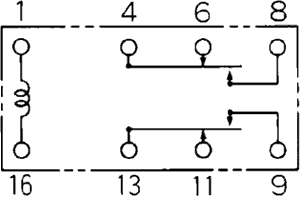

    Contacts configuration DPDT
    DC contacts rating @R 1A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 0.5A / 120V AC
    Contact current max. 1A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 150mW
    Operate time 6ms
    Release time 3ms
