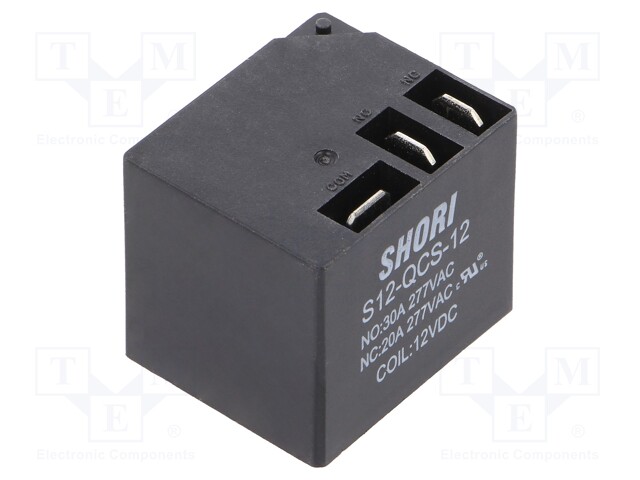

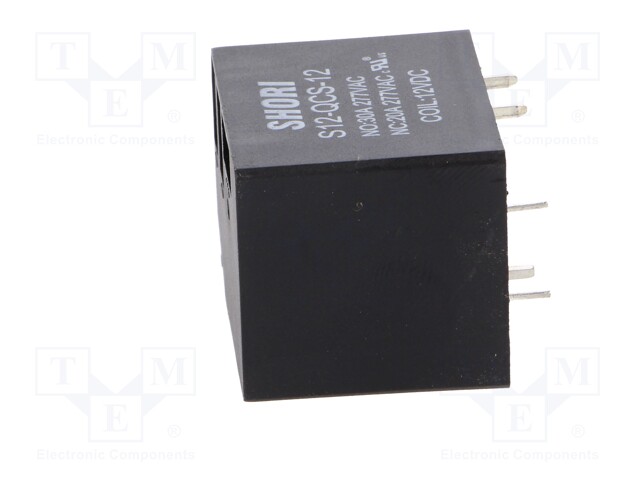

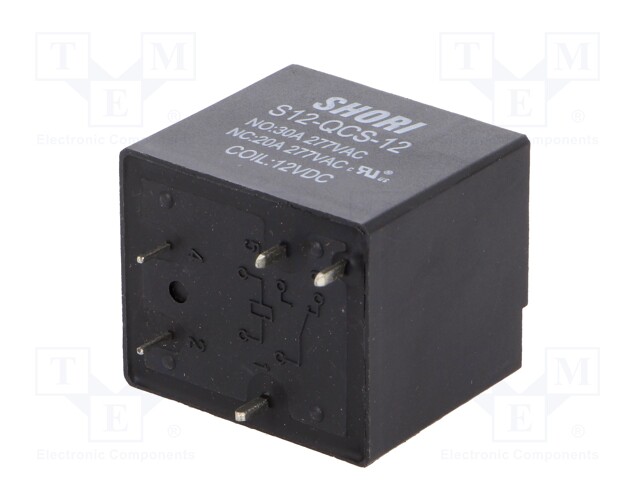

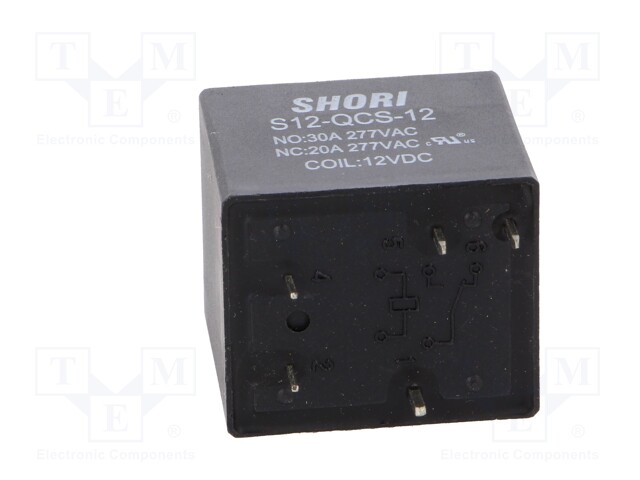

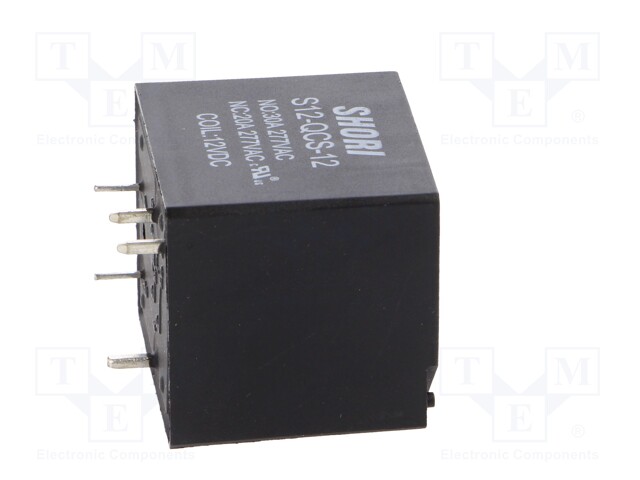

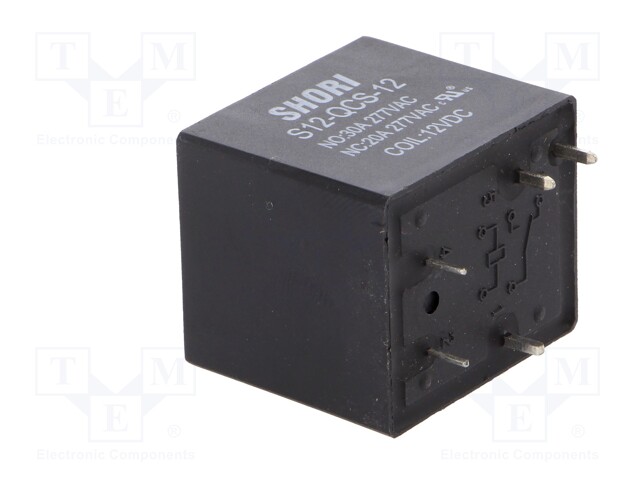

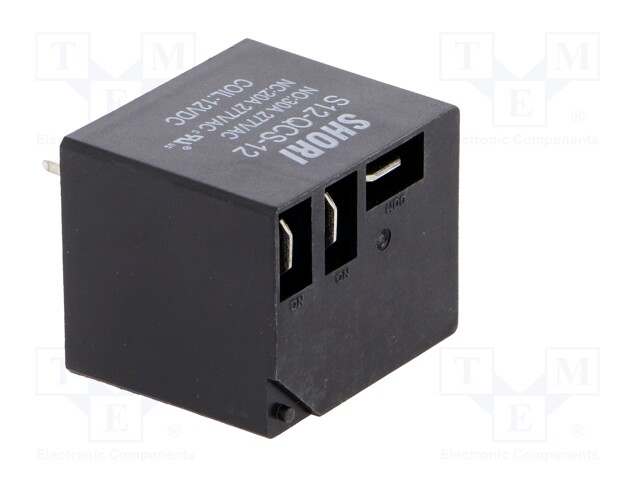

Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 20A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: S12-QCS-12
    Manufacturer: SHORI ELECTRIC
    Manufacturer code: S12-QCS-12
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Electrical life
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    1.77 € 1.77 € (wo VAT) 1.77 EUR

    1.77 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 20A

    Mounting PCB
    Operating temperature -30...85°C
    Contact material silver alloy
    Body dimensions 27.1x28.8x32mm
    Mechanical durability 10000000cycles
    Electrical life 10000cycles
    Coil resistance 155Ω
    Rated coil voltage 12V DC
    Contacts configuration SPDT
    Contact resistance 50mΩ
    Contact current max. 20A
    Relay variant power
    Type of relay electromagnetic
    Coil power consumption 930mW
    Operate time 15ms
    Release time 10ms
    Coil current 77mA
