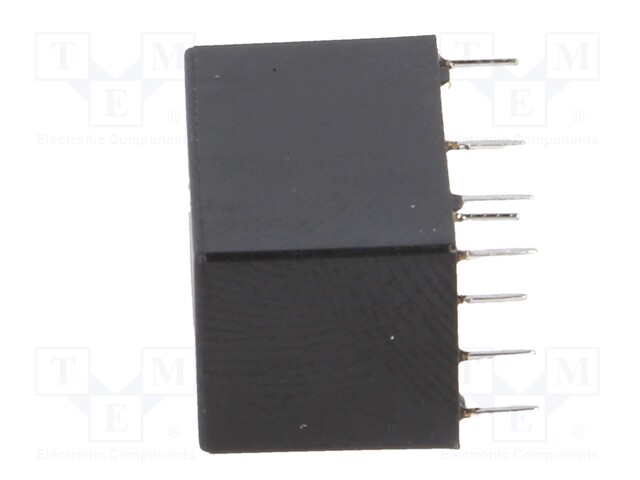

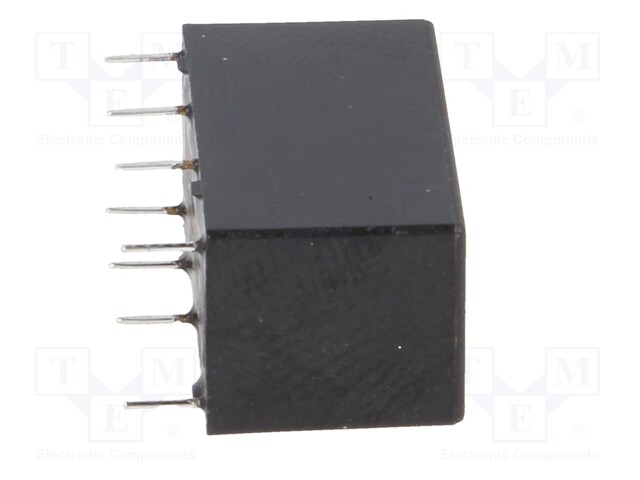

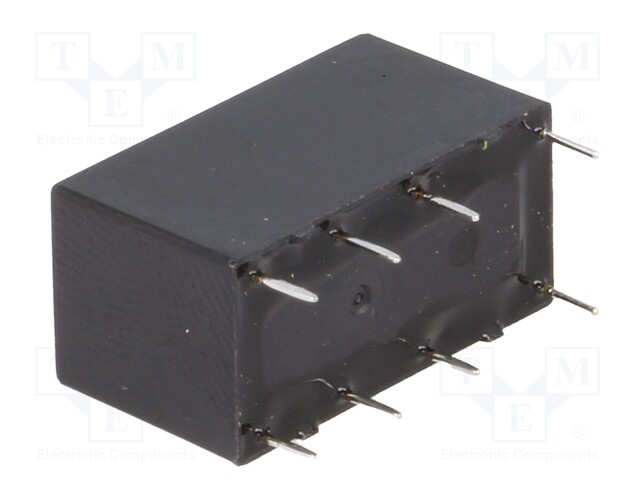

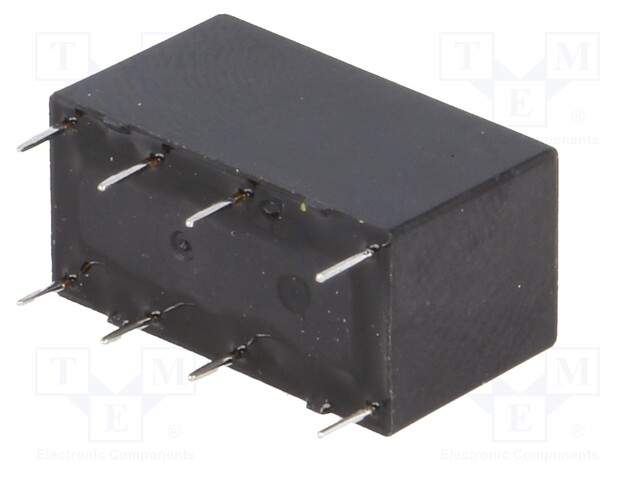

Relay: electromagnetic; DPDT; Ucoil: 12VDC; 0.5A/125VAC; 1A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: S13-12V-2C
    Manufacturer: SHORI ELECTRIC
    Manufacturer code: S13-12V-2C
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Electrical life
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Coil current

    1.94 € 1.94 € (wo VAT) 1.94 EUR

    1.94 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPDT; Ucoil: 12VDC; 0.5A/125VAC; 1A/30VDC

    Mounting PCB
    Operating temperature -25...70°C
    Terminal pitch 5mm

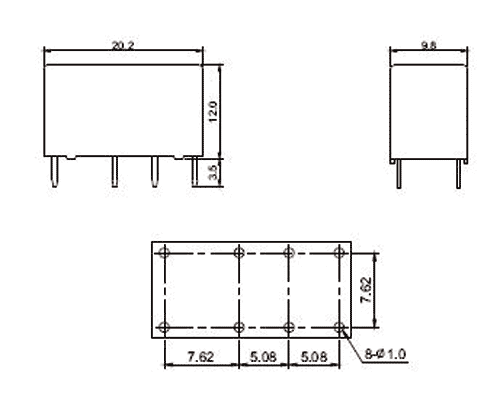

    Body dimensions 20.2x9.8x12mm
    Mechanical durability 15000000cycles
    Switched voltage max. 125V AC, max. 125V DC
    Electrical life 100000cycles
    Coil resistance 720Ω
    Rated coil voltage 12V DC

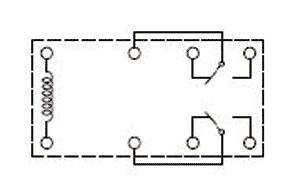

    Contacts configuration DPDT
    DC contacts rating @R 1A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 0.5A / 125V AC
    Contact current max. 2A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 200mW
    Coil current 16.7mA
