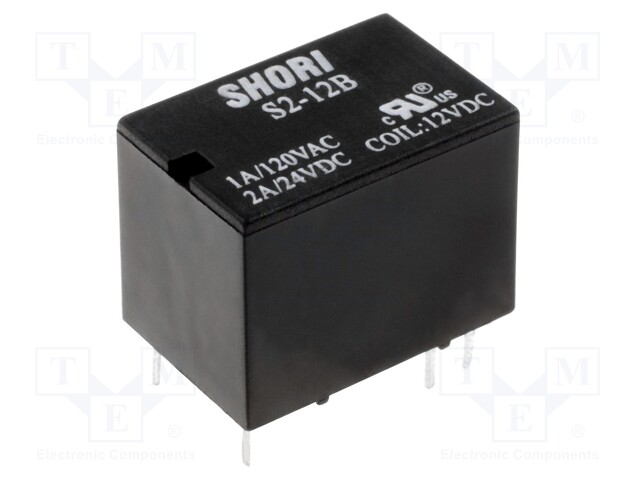

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 1A/120VAC; 2A/24VDC

    Multiples: 1.0
    Minimum quantity: 3.0
    Product code: S2-12B
    Manufacturer: SHORI ELECTRIC
    Manufacturer code: S2-12B
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Electrical life
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Coil current

    1.00 € 1.00 € (wo VAT) 1.0 EUR

    1.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 12VDC; 1A/120VAC; 2A/24VDC

    Mounting PCB
    Operating temperature -25...50°C
    Terminal pitch 2.54mm

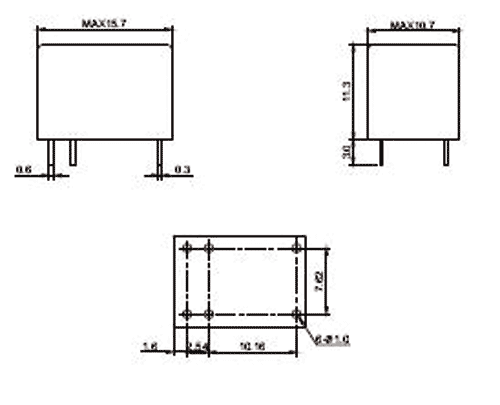

    Body dimensions 15.7x10.7x11.3mm
    Mechanical durability 10000000cycles
    Switched voltage max. 24V DC, max. 120V AC
    Electrical life 100000cycles
    Coil resistance 700Ω
    Rated coil voltage 12V DC

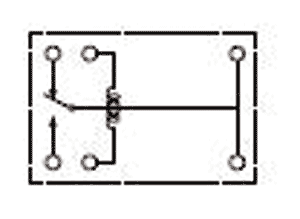

    Contacts configuration SPDT
    DC contacts rating @R 2A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 1A / 120V AC
    Contact current max. 3A
    Relay variant subminiature
    Type of relay electromagnetic
    Coil power consumption 200mW
    Coil current 17mA
