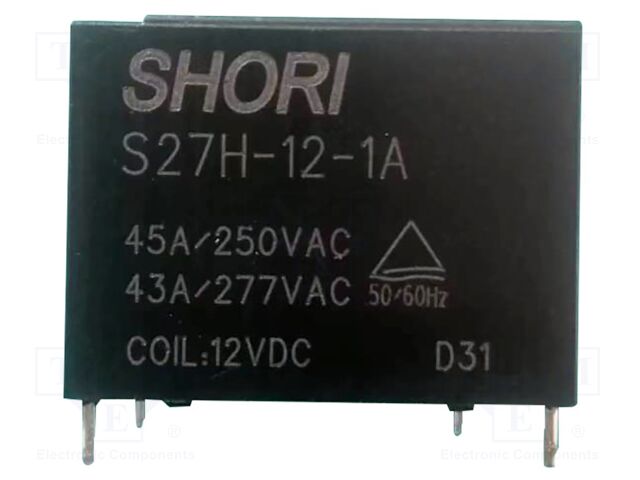

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 45A

    Multiples: 1000.0
    Minimum quantity: 1000.0
    Product code: S27H-12-1A
    Manufacturer: SHORI ELECTRIC
    Manufacturer code: S27H-12-1A
    • Mounting
    • Operating temperature
    • Contact material
    • Mechanical durability
    • Electrical life
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 45A

    Mounting PCB
    Operating temperature -40...85°C
    Contact material silver alloy
    Mechanical durability 10000000cycles
    Electrical life 30000cycles
    Coil resistance 90Ω
    Rated coil voltage 12V DC

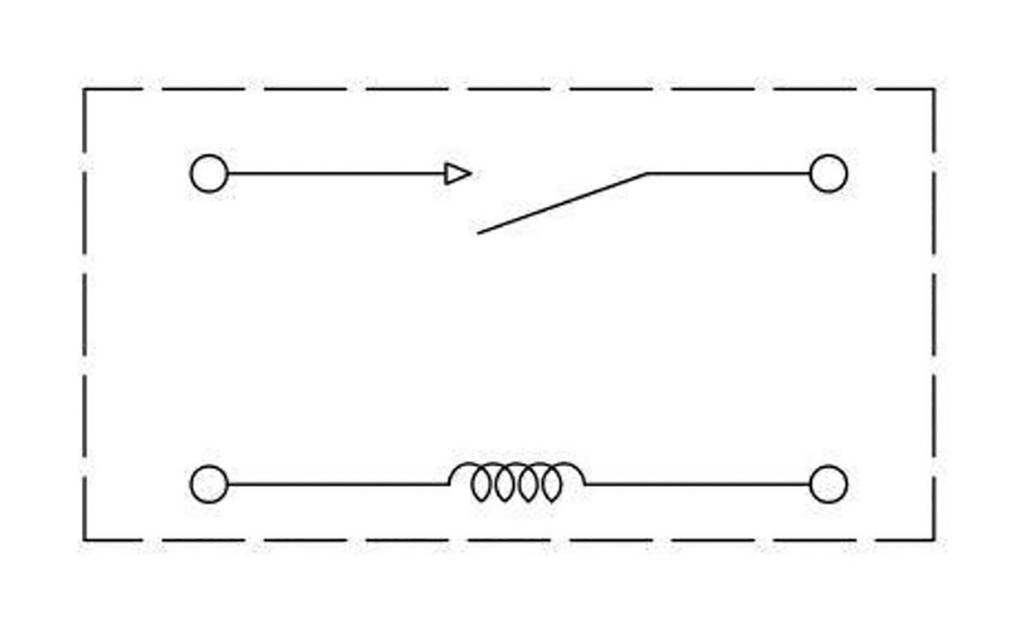

    Contacts configuration SPST-NO
    Contact resistance 100MΩ
    Contact current max. 45A
    Relay variant power
    Type of relay electromagnetic
    Coil power consumption 1.6W
    Operate time 20ms
    Release time 10ms
