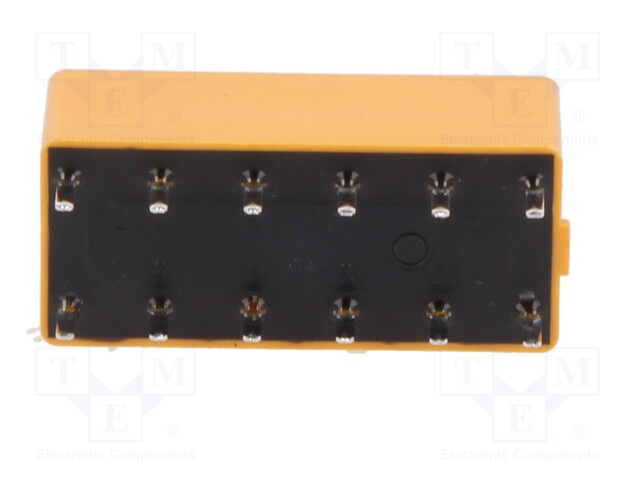

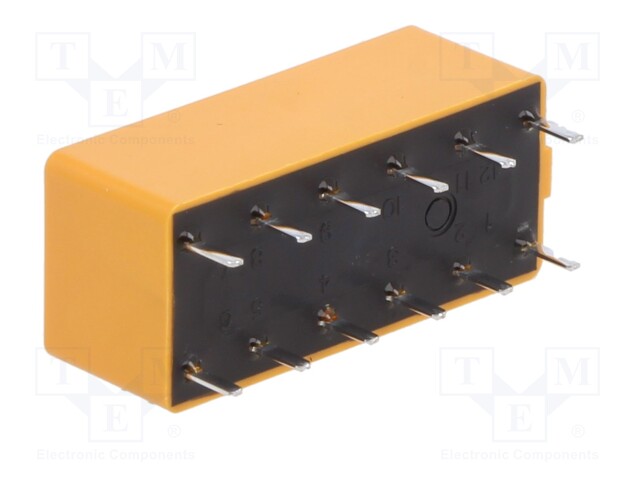

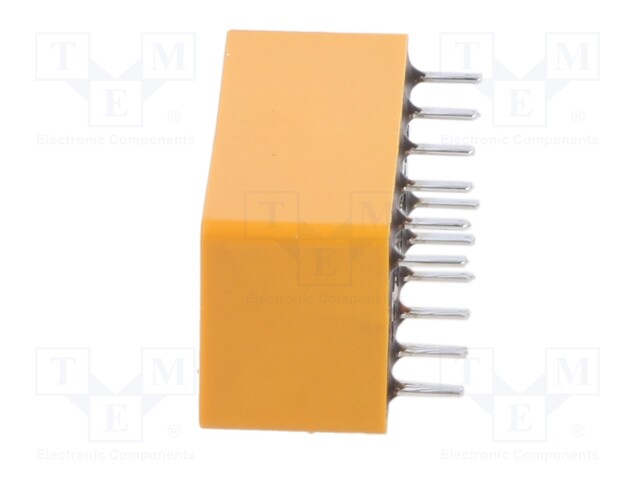

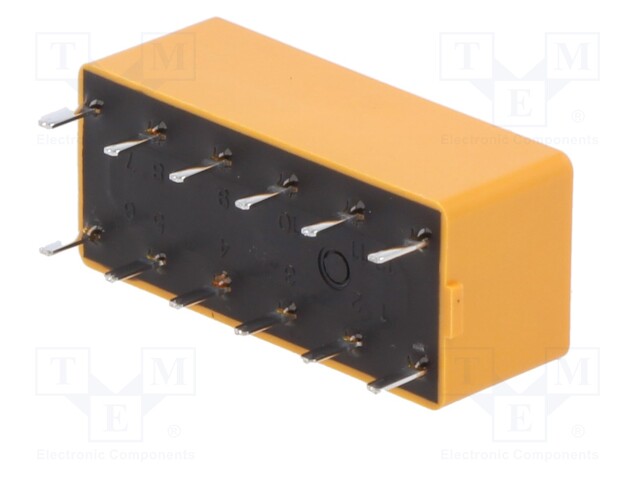

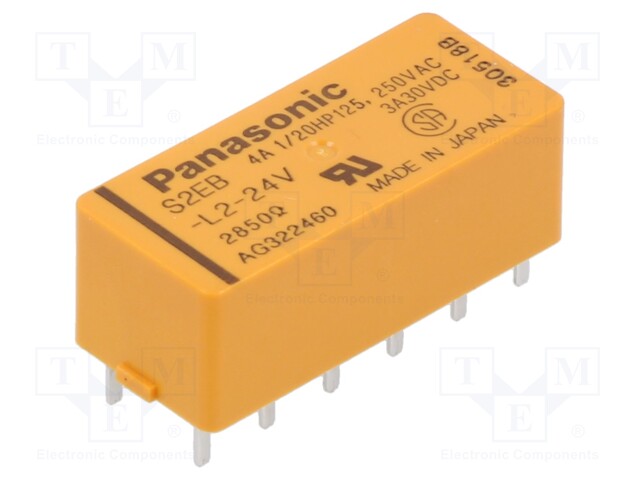

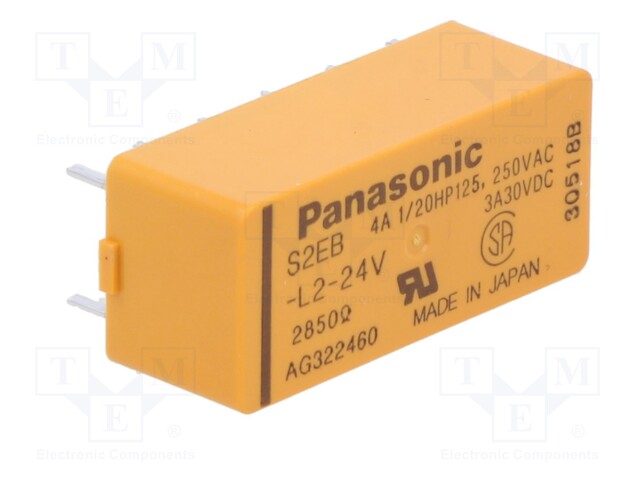

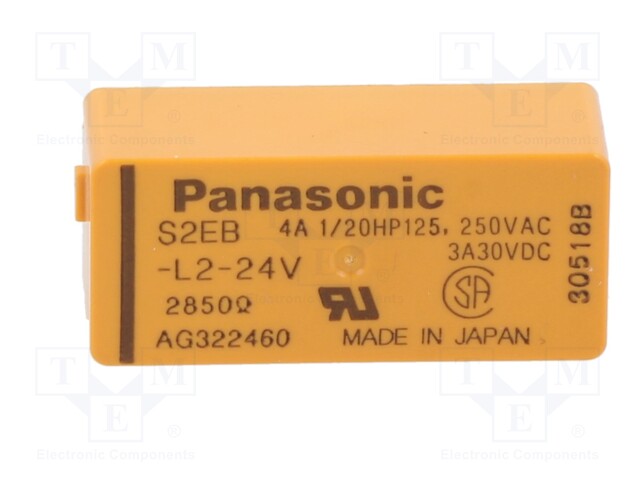

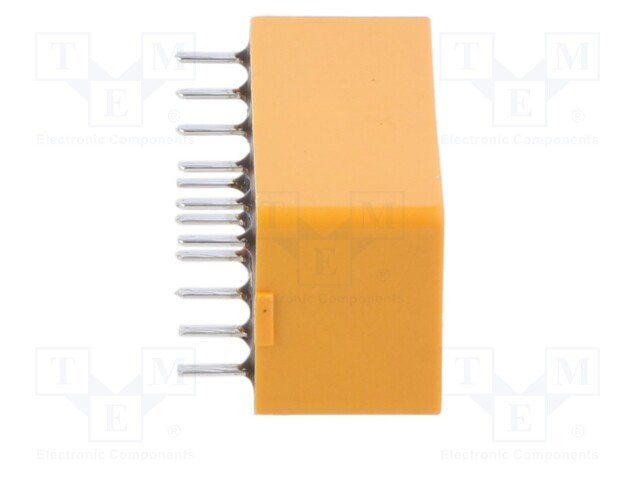

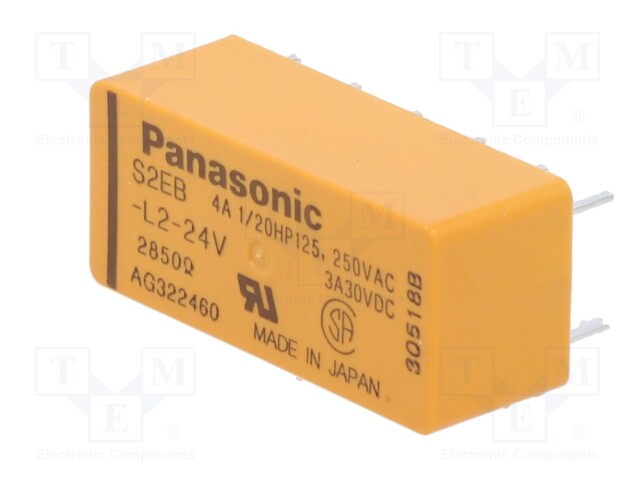

Relay: electromagnetic; Ucoil: 24VDC; 4A; max.250VAC; miniature

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: S2EB-L2-24V
    Manufacturer: PANASONIC
    Manufacturer code: S2EB-L2-24V
    • Mounting
    • Mounting
    • Operating temperature
    • Series
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Coil current

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; Ucoil: 24VDC; 4A; max.250VAC; miniature

    Mounting PCB, socket
    Operating temperature -55...65°C
    Series S
    Body dimensions 28x12x10mm
    Switched voltage max. 250V AC
    Coil resistance 2.85kΩ
    Rated coil voltage 24V DC
    Contacts configuration DPST-NO + DPST-NC
    Contact current max. 4A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 202mW
    Coil current 8.4mA
