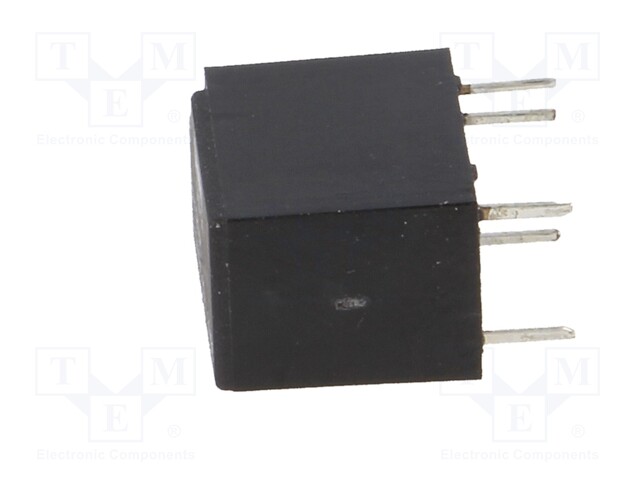

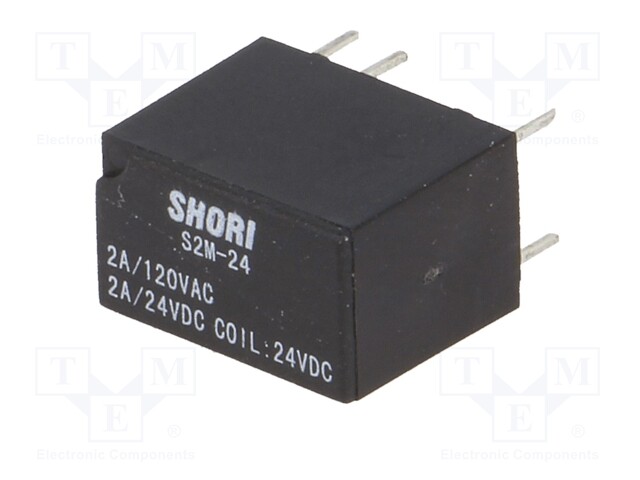

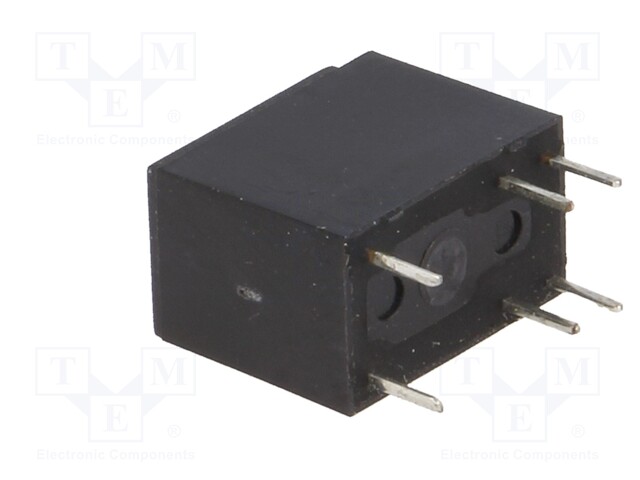

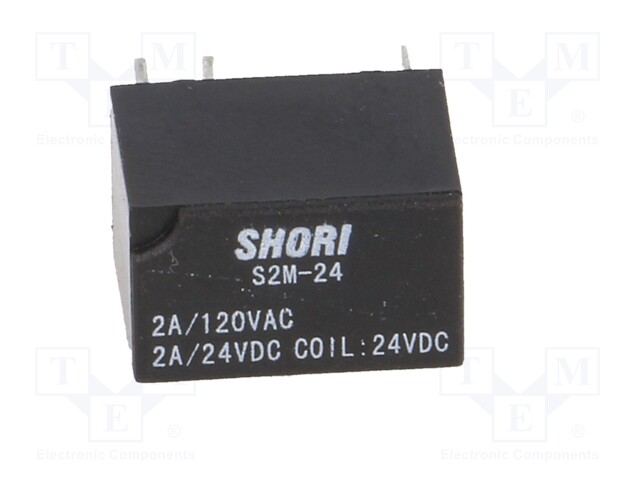

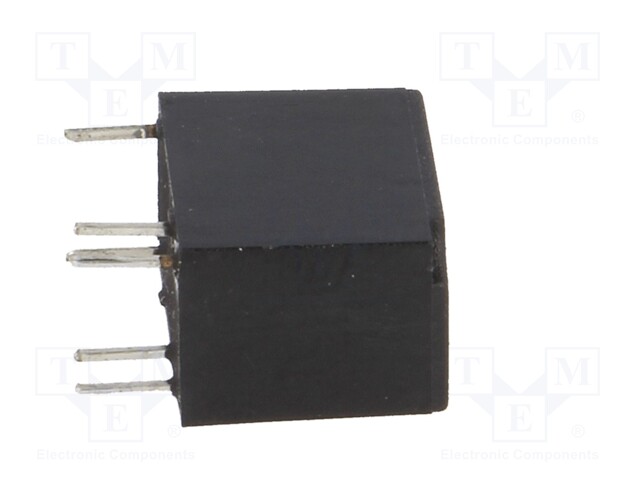

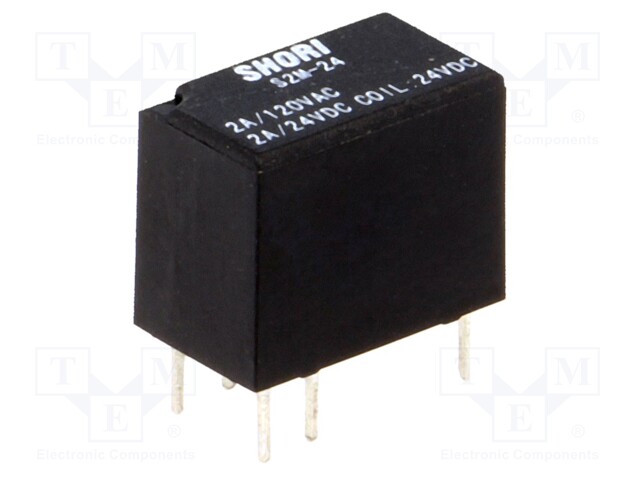

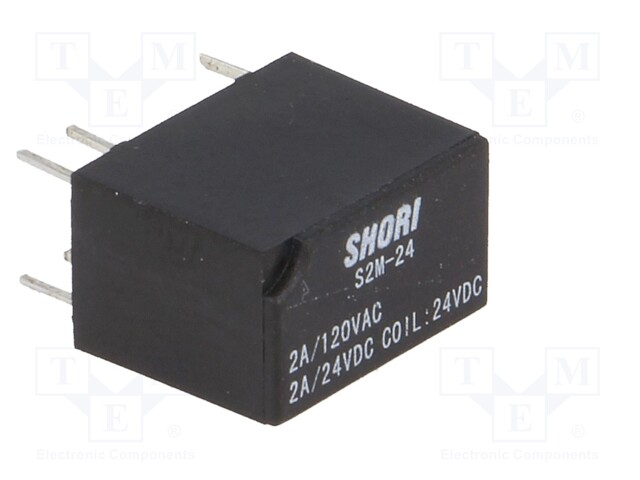

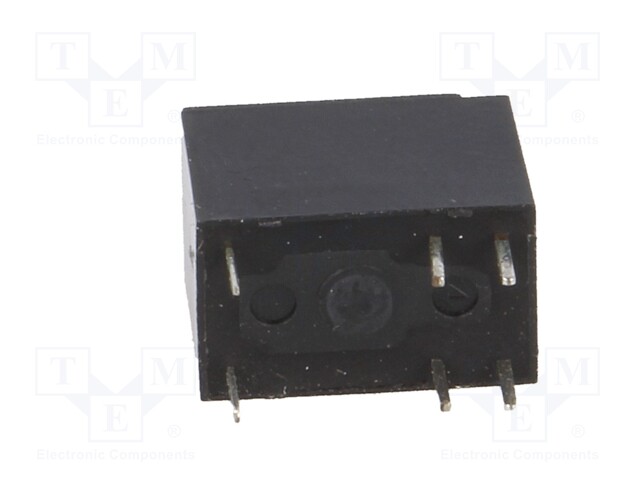

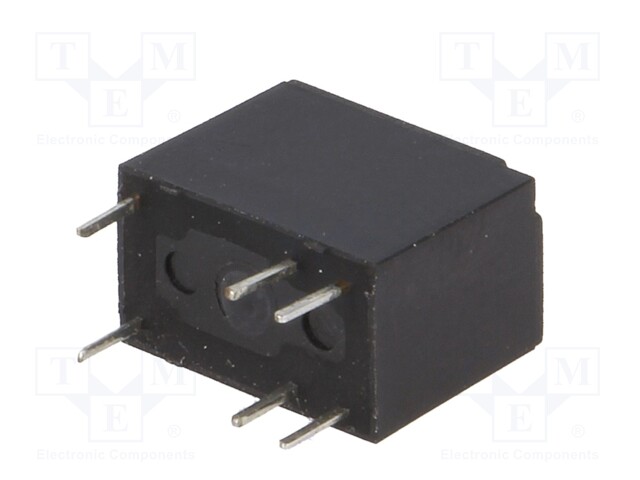

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 1A/120VAC; 2A/24VDC

    Multiples: 1.0
    Minimum quantity: 2.0
    Product code: S2M-24
    Manufacturer: SHORI ELECTRIC
    Manufacturer code: S2M-24
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Electrical life
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Coil current

    1.15 € 1.15 € (wo VAT) 1.1500000000000001 EUR

    1.15 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 24VDC; 1A/120VAC; 2A/24VDC

    Mounting PCB
    Operating temperature -30...70°C
    Terminal pitch 2.54mm

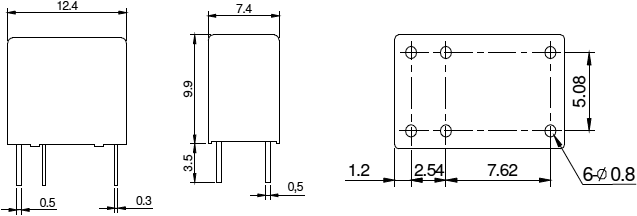

    Body dimensions 12.4x9.9x7.4mm
    Mechanical durability 10000000cycles
    Switched voltage max. 24V DC, max. 120V AC
    Electrical life 100000cycles
    Coil resistance 1.6kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 2A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 1A / 120V AC
    Contact current max. 1A
    Relay variant subminiature
    Type of relay electromagnetic
    Coil power consumption 360mW
    Coil current 15mA
