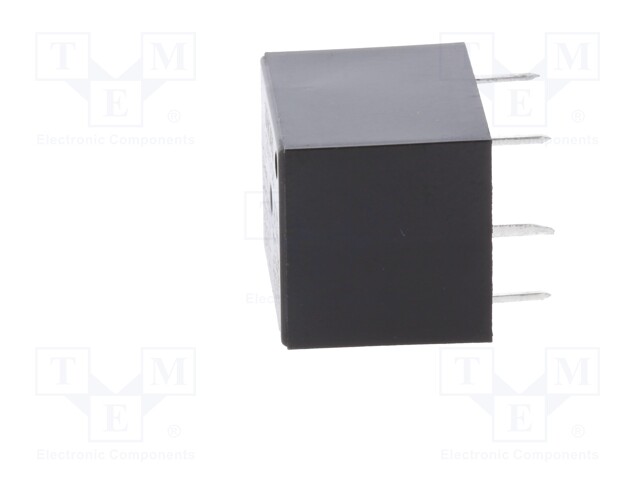

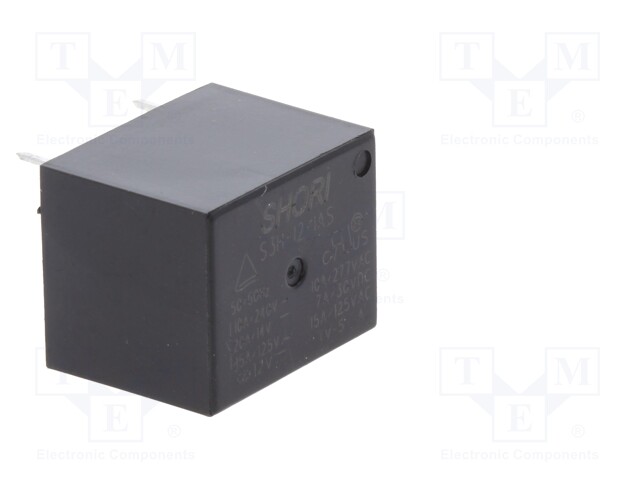

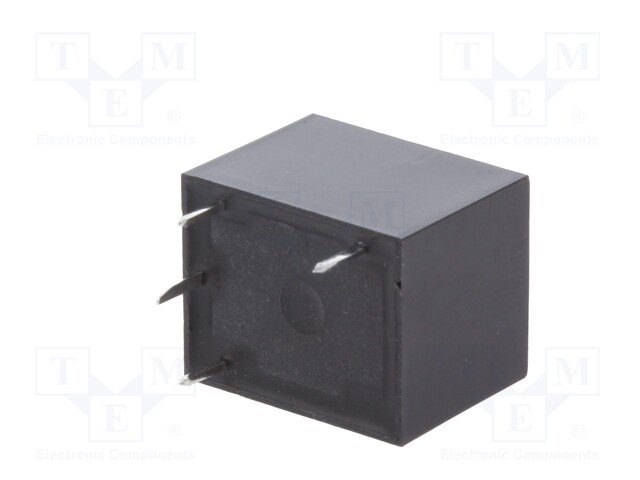

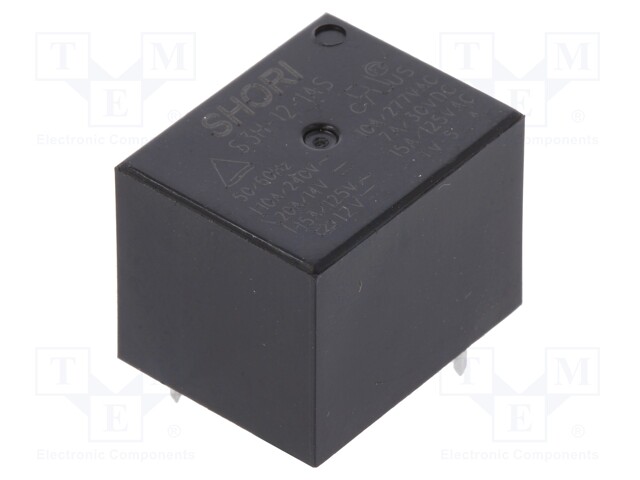

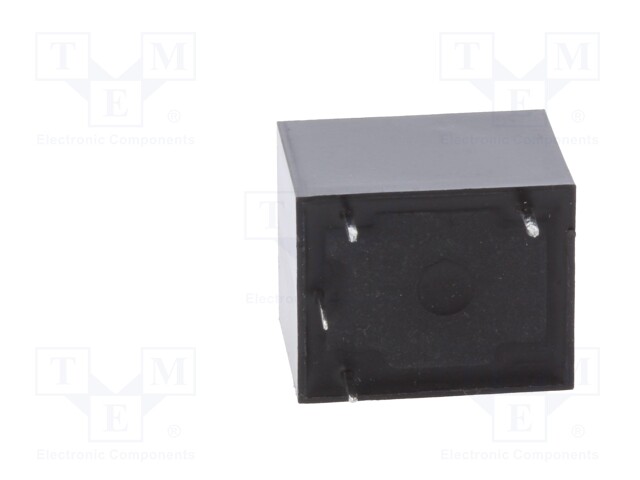

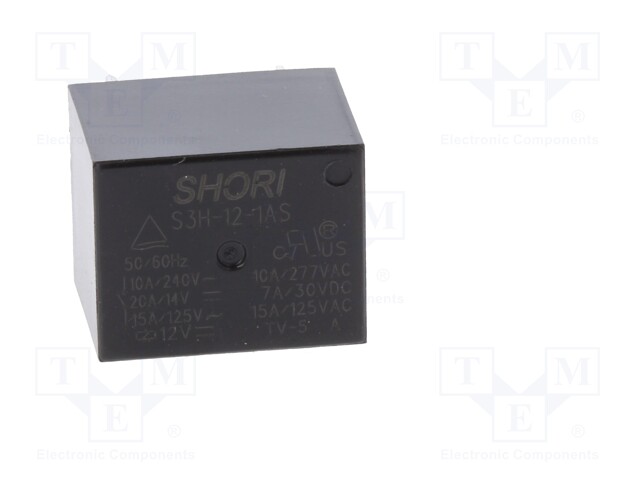

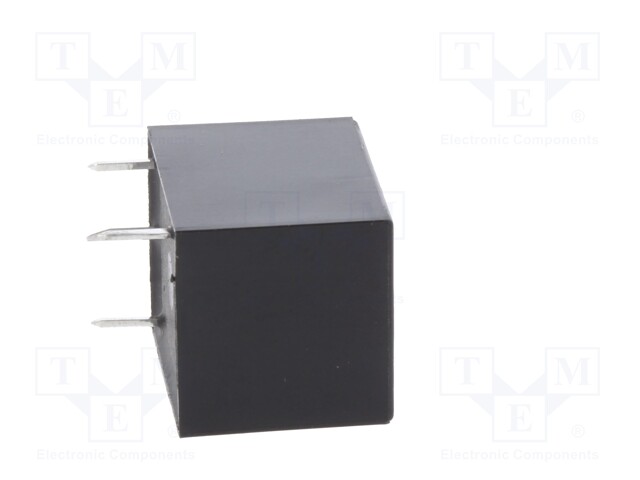

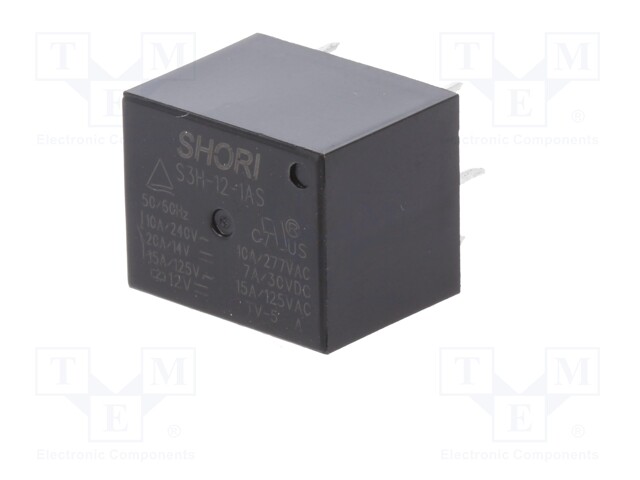

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A/240VAC; 360mW

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: S3H-12-1AS
    Manufacturer: SHORI ELECTRIC
    Manufacturer code: S3H-12-1AS
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    1.20 € 1.20 € (wo VAT) 1.2 EUR

    1.20 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A/240VAC; 360mW

    Mounting PCB
    Operating temperature -30...85°C
    Terminal pitch 2mm
    Body dimensions 19.6x15.6x15mm
    Switched voltage max. 30V DC, max. 277V AC
    Coil resistance 400Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 20A / 14V DC
    Contact resistance 100MΩ
    AC contacts rating @R 10A / 240V AC
    Contact current max. 15A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 360mW
    Operate time 10ms
    Release time 5ms
    Coil current 30mA
