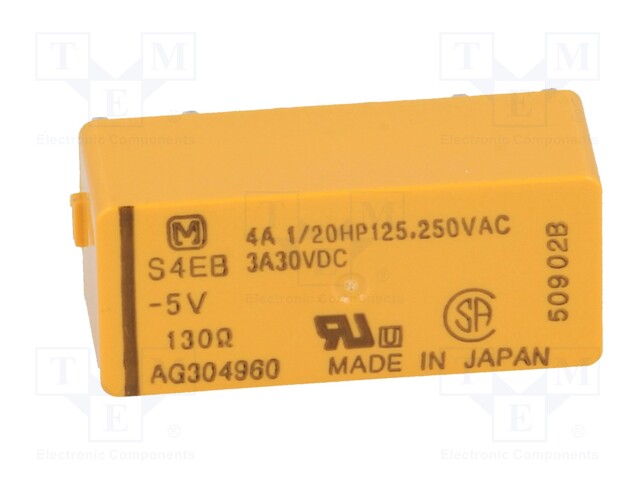

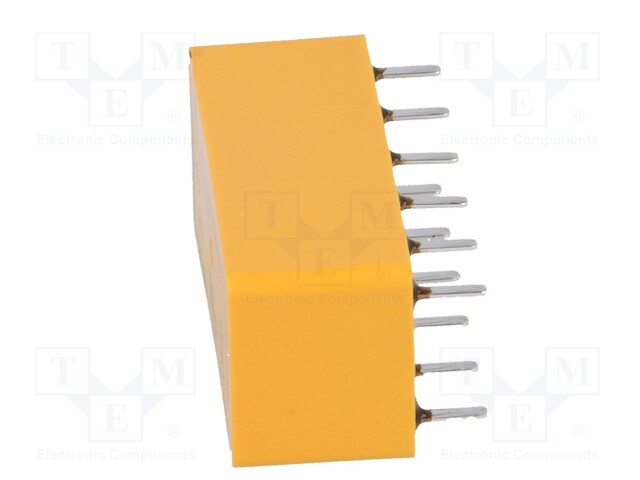

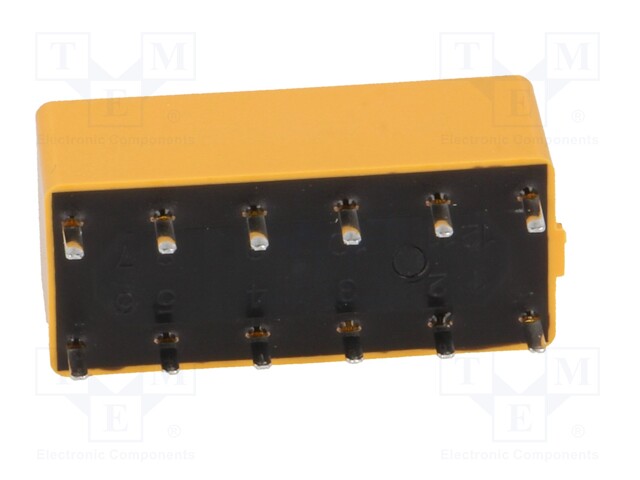

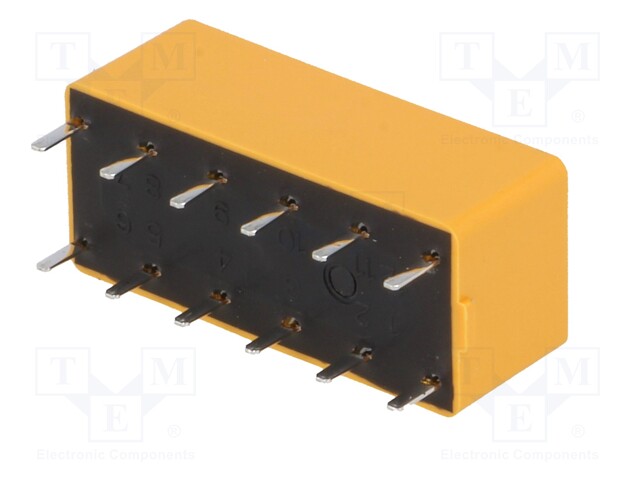

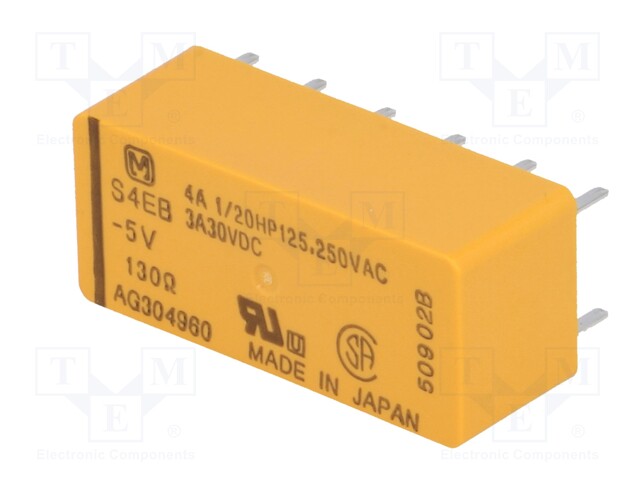

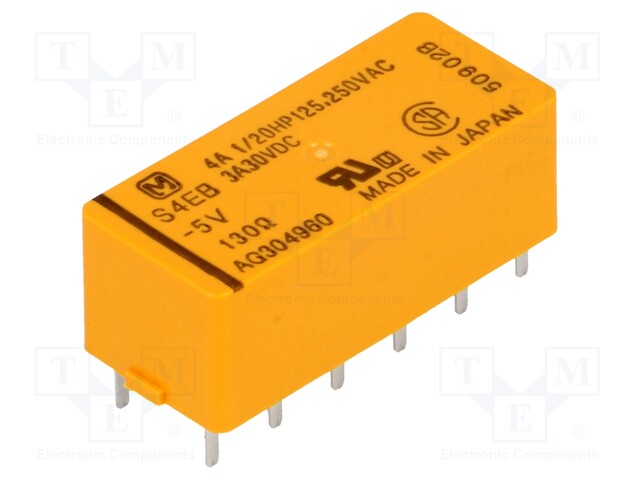

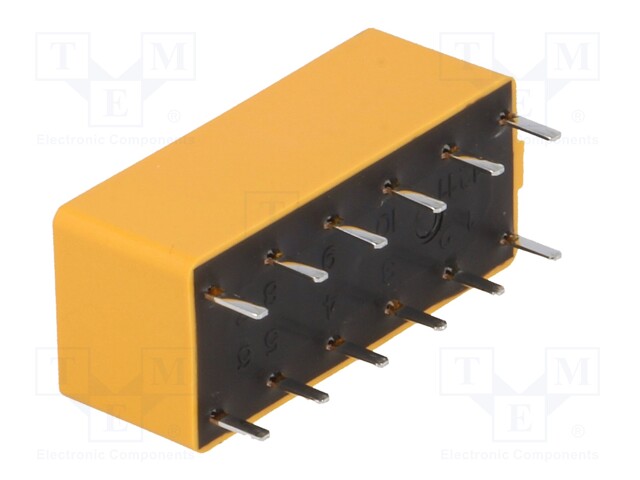

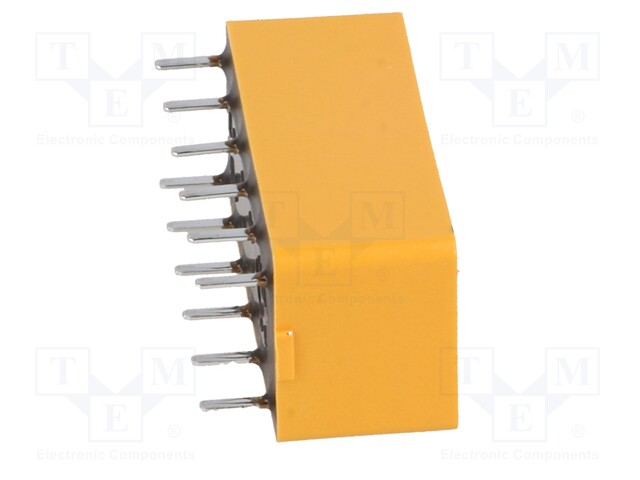

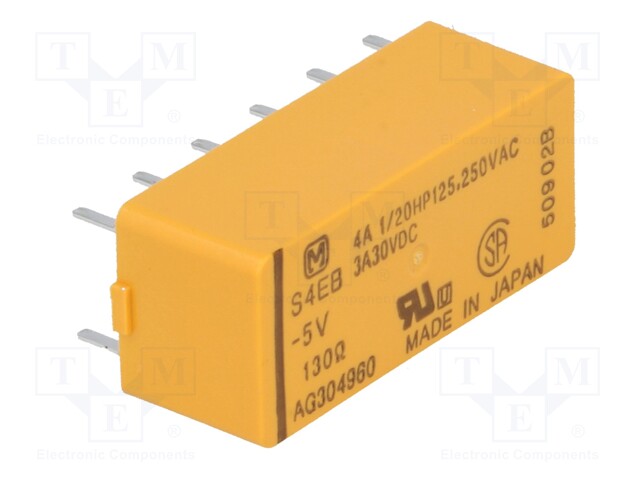

Relay: electromagnetic; 4PST; Ucoil: 5VDC; 4A/250VAC; 3A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: S4EB-5V
    Manufacturer: PANASONIC
    Manufacturer code: S4EB-5V
    • Mounting
    • Mounting
    • Operating temperature
    • Series
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Electrical life
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    25.83 € 25.83 € (wo VAT) 25.830000000000002 EUR

    25.83 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; 4PST; Ucoil: 5VDC; 4A/250VAC; 3A/30VDC

    Mounting PCB, socket
    Operating temperature -55...65°C
    Series S
    Terminal pitch 5mm

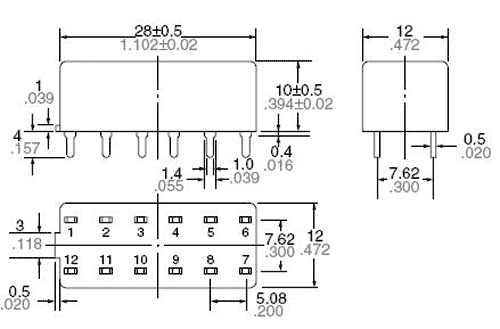

    Body dimensions 28x12x10mm
    Mechanical durability 100000000cycles
    Switched voltage max. 30V DC, max. 250V AC
    Electrical life 100000cycles
    Coil resistance 130Ω
    Rated coil voltage 5V DC

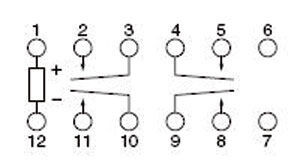

    Contacts configuration 4PST
    DC contacts rating @R 3A / 30V DC
    Contact resistance 50mΩ
    AC contacts rating @R 4A / 250V AC
    Contact current max. 4A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 192mW
    Operate time 15ms
    Release time 10ms
    Coil current 38.5mA
