Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 5A; PCB

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: S4M-12B-2CS
    Manufacturer: SHORI ELECTRIC
    Manufacturer code: S4M-12B-2CS
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Electrical life
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Coil current

    2.52 € 2.52 € (wo VAT) 2.52 EUR

    2.52 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 5A; PCB

    Mounting PCB
    Operating temperature -40...70°C

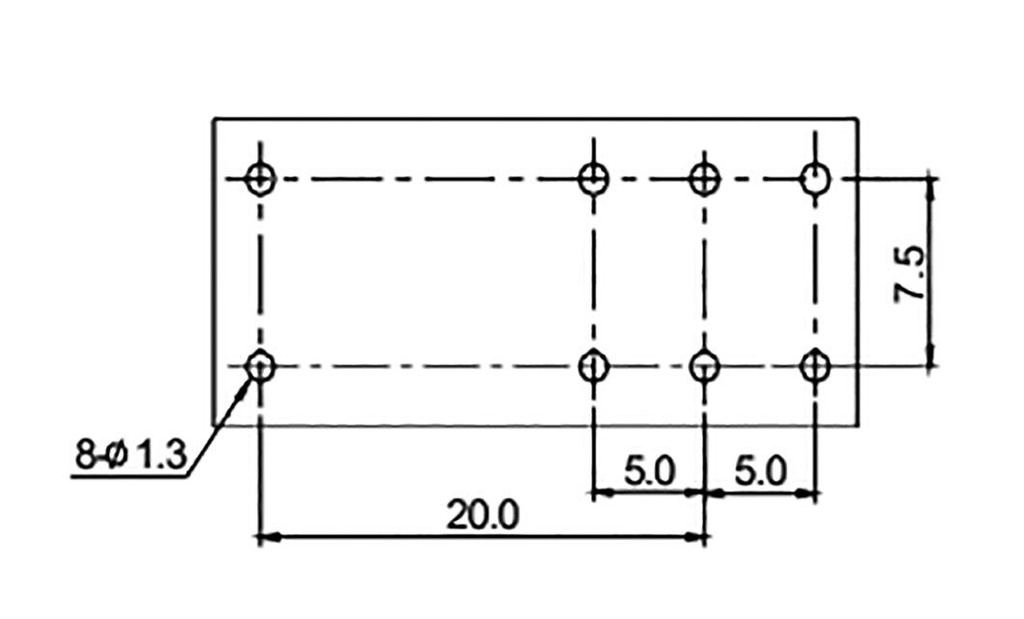

    Terminal pitch 5mm
    Mechanical durability 10000000cycles
    Switched voltage max. 30V DC, max. 250V AC
    Electrical life 100000cycles
    Coil resistance 270Ω
    Rated coil voltage 12V DC

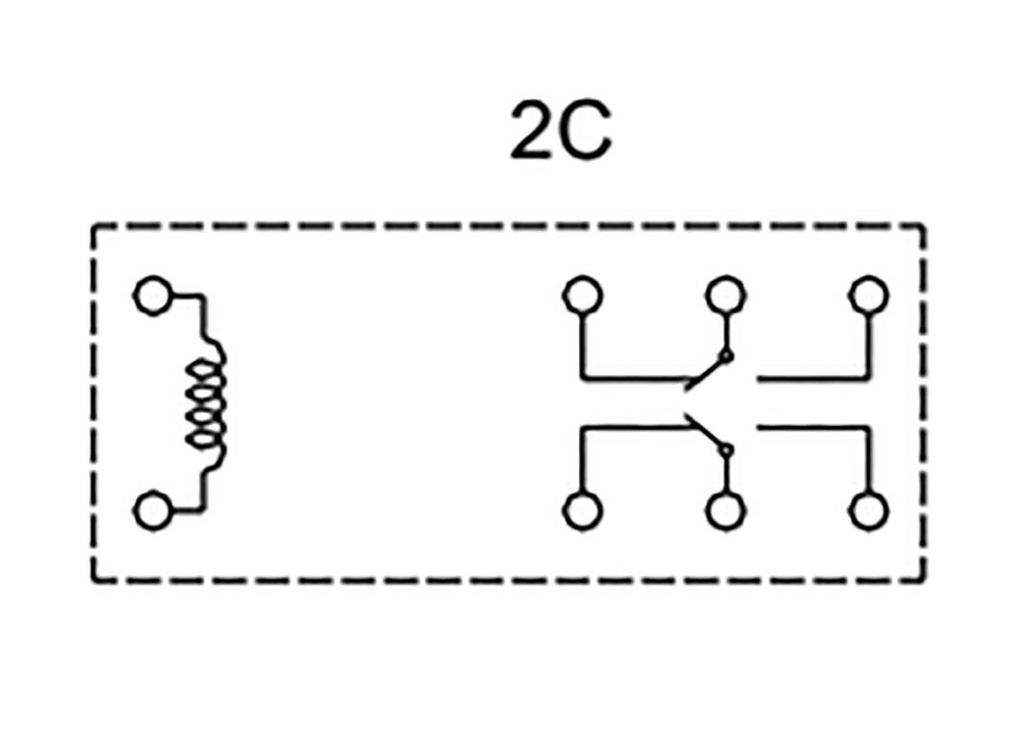

    Contacts configuration DPDT
    DC contacts rating @R 5A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 5A / 250V AC
    Contact current max. 5A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 540mW
    Coil current 45mA
