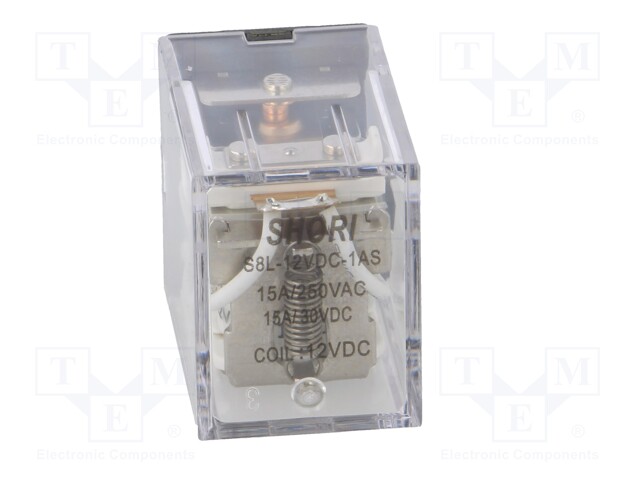

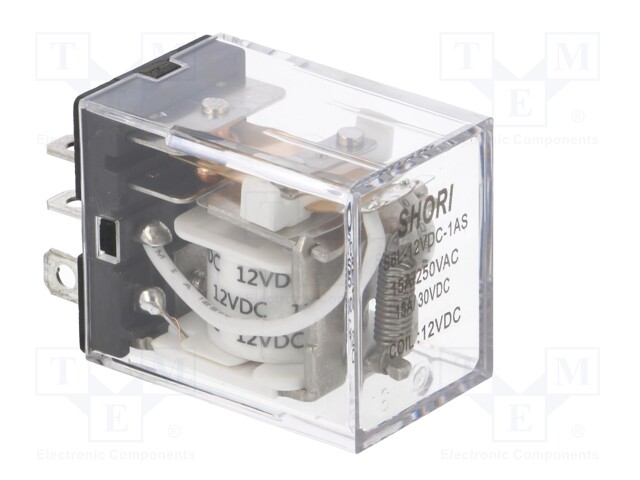

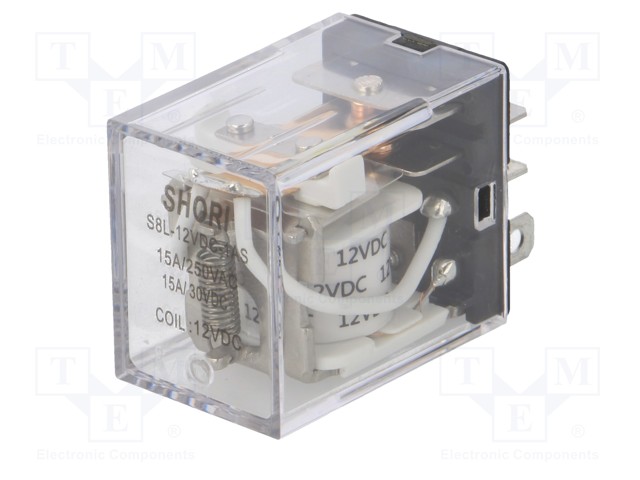

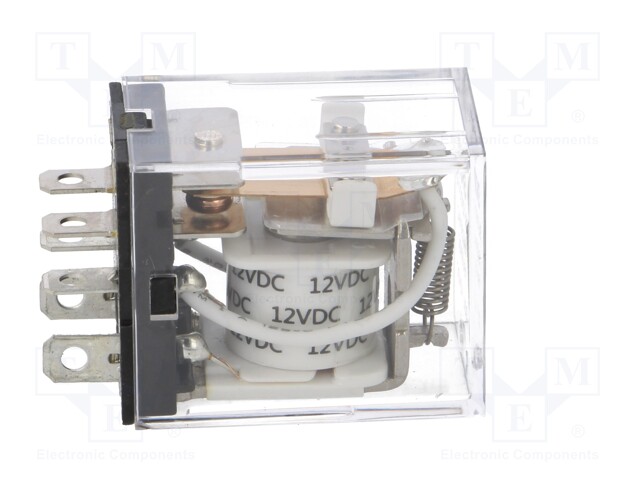

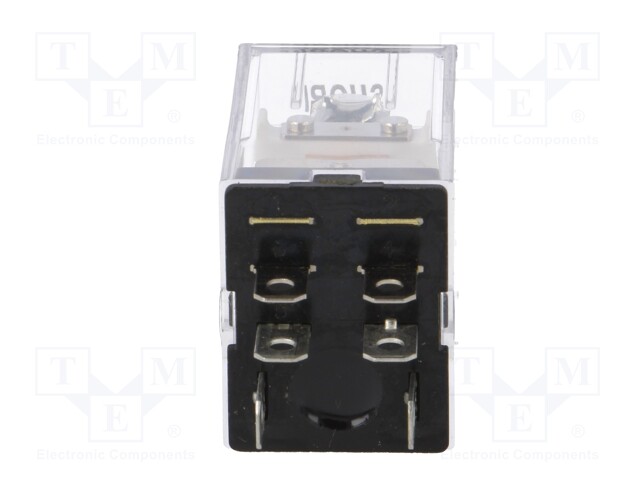

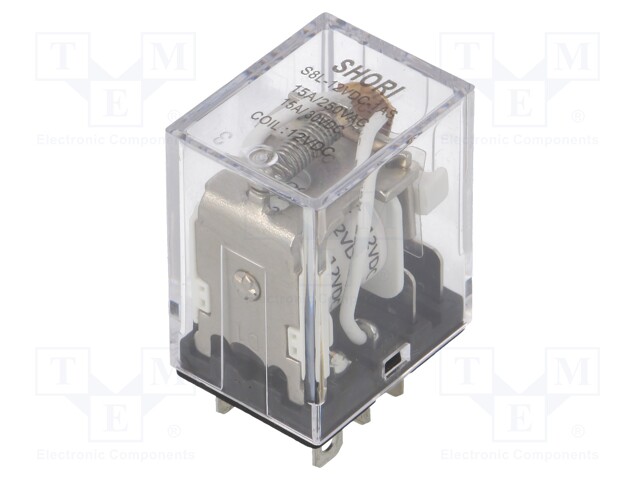

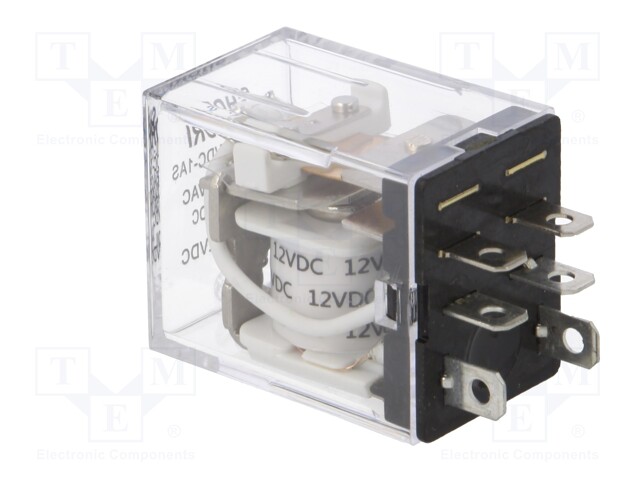

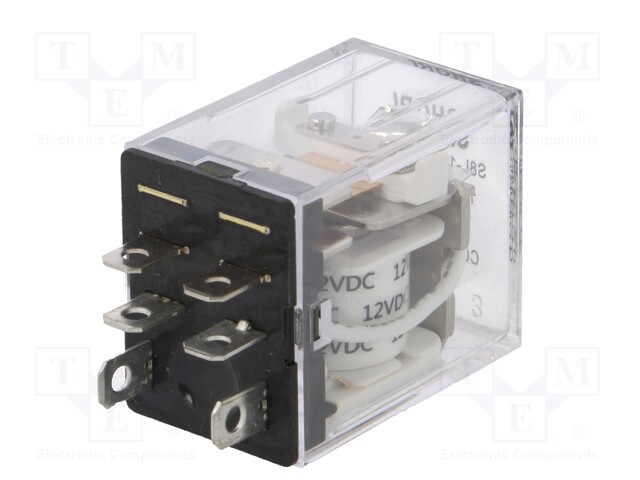

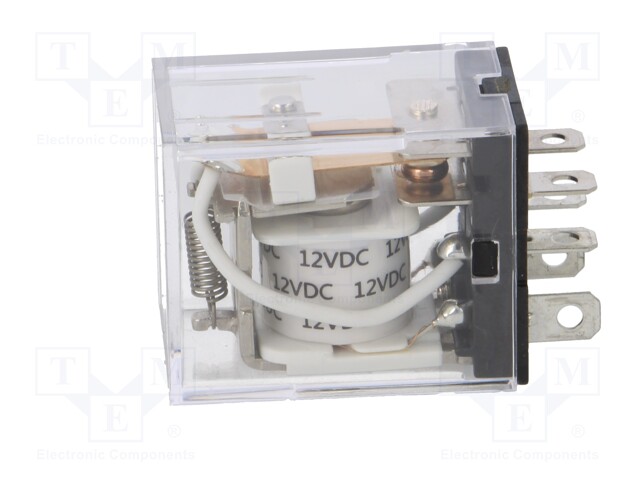

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 15A/277VAC; 900mW

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: S8L-12VDC-1AS
    Manufacturer: SHORI ELECTRIC
    Manufacturer code: S8L-12VDC-1AS
    • Mounting
    • Operating temperature
    • Leads
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    3.59 € 3.59 € (wo VAT) 3.59 EUR

    3.59 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 15A/277VAC; 900mW

    Mounting socket
    Operating temperature -40...70°C
    Leads connectors
    Body dimensions 35.2x27.2x21.5mm
    Mechanical durability 10000000cycles
    Switched voltage max. 30V DC, max. 277V AC
    Coil resistance 160Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 15A / 30V DC
    Contact resistance 30mΩ
    AC contacts rating @R 15A / 277V AC
    Contact current max. 15A
    Relay variant industrial
    Type of relay electromagnetic
    Coil voltage min. 9V DC
    Coil power consumption 0.9W
    Operate time 25ms
    Release time 25ms
    Coil current 75mA
