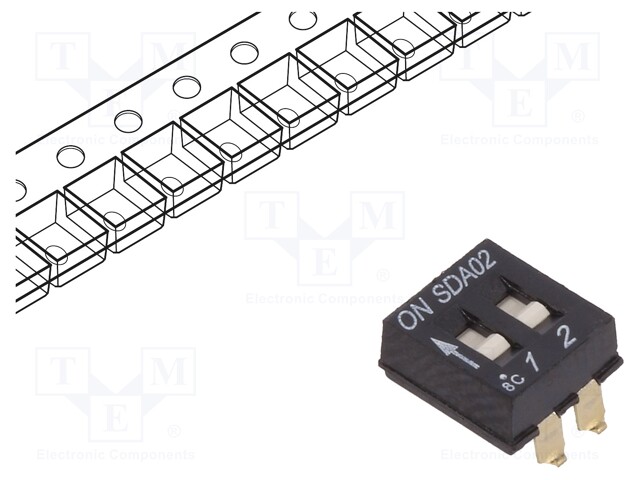

Switch: DIP-SWITCH; Poles number: 2; OFF-ON; 0.025A/24VDC; Pos: 2

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: SDA02H0SBR
    Manufacturer: C&K
    Manufacturer code: SDA02H0SBR
    • Mounting
    • Operating temperature
    • Type of switch
    • Switches features
    • Switches features
    • Contact plating
    • Number of positions
    • Row pitch
    • Contact material
    • Max. contact resistance:
    • Terminal pitch
    • Body dimensions
    • Overall length
    • Electrical life
    • Poles number
    • Contacts configuration
    • Switching method
    • Stable positions number

    2.39 € 2.39 € (wo VAT) 2.39 EUR

    2.39 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Switch: DIP-SWITCH; Poles number: 2; OFF-ON; 0.025A/24VDC; Pos: 2

    Mounting SMT
    Operating temperature -40...85°C
    Type of switch DIP-SWITCH
    Switches features flat actuator, with seal tape
    Contact plating gold-plated
    Number of positions 2
    Row pitch 6.1mm
    Contact material copper
    Max. contact resistance: 50mΩ
    Terminal pitch 2.54mm
    Body dimensions 7.49x4.65x7.06mm
    Overall length 7.06mm
    Electrical life 1000cycles
    Poles number 2
    Contacts configuration SPST
    Switching method OFF-ON
    Stable positions number 2
