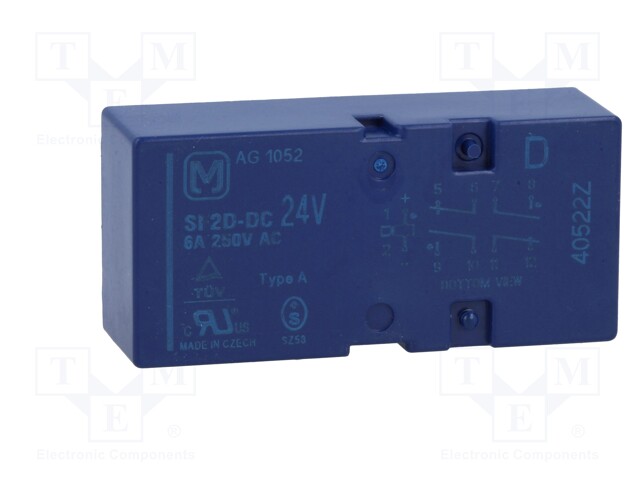

Relay: electromagnetic; SPST-NO x2 + SPST-NC x2; Ucoil: 24VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: SF2D-DC24V
    Manufacturer: PANASONIC
    Manufacturer code: SF2D-DC24V
    • Operating temperature
    • Contact plating
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Coil current

    29.86 € 29.86 € (wo VAT) 29.86 EUR

    29.86 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO x2 + SPST-NC x2; Ucoil: 24VDC

    Operating temperature -40...70°C
    Contact plating gold-plated
    Contact material AgSnO<sub>2</sub>
    Body dimensions 53.3x25x16mm
    Mechanical durability 1000000cycles
    Switched voltage max. 30V DC, max. 250V AC
    Coil resistance 1152Ω
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO x2 + SPST-NC x2
    Contact current max. 6A
    Relay variant safety
    Type of relay electromagnetic
    Coil power consumption 0.5W
    Coil current 20.8mA
