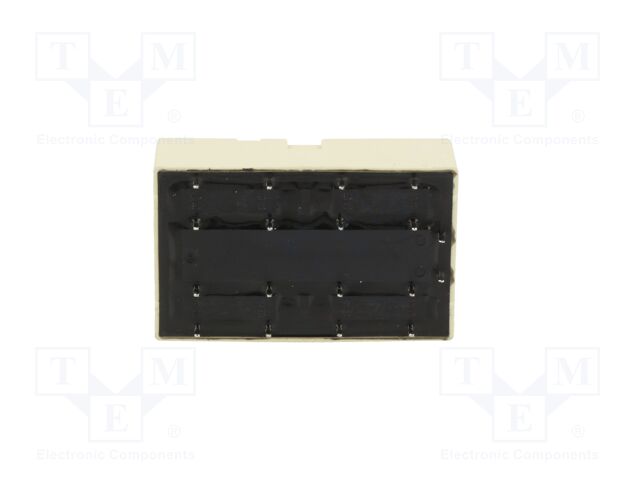

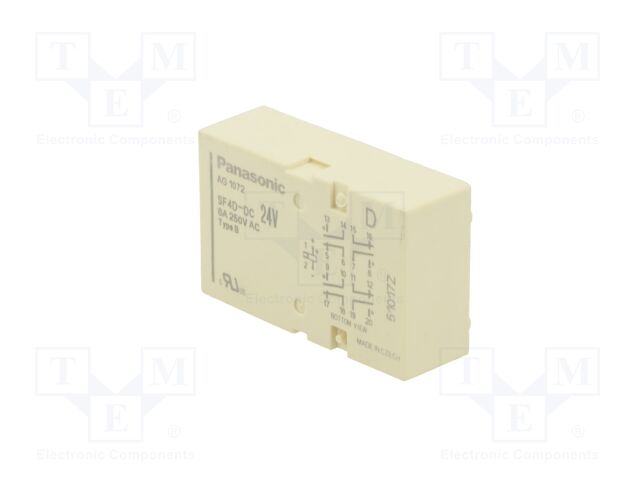

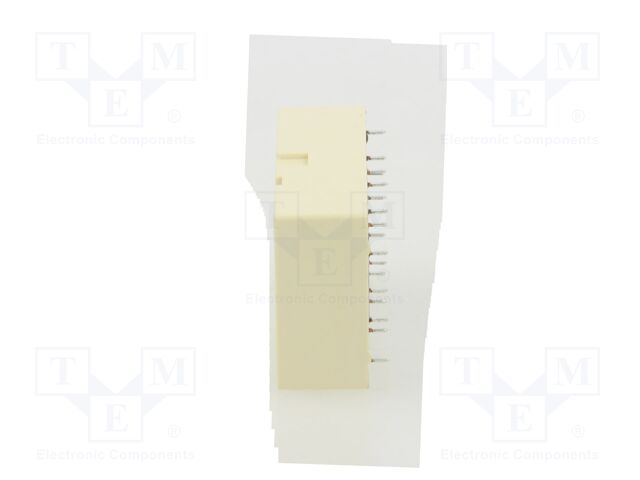

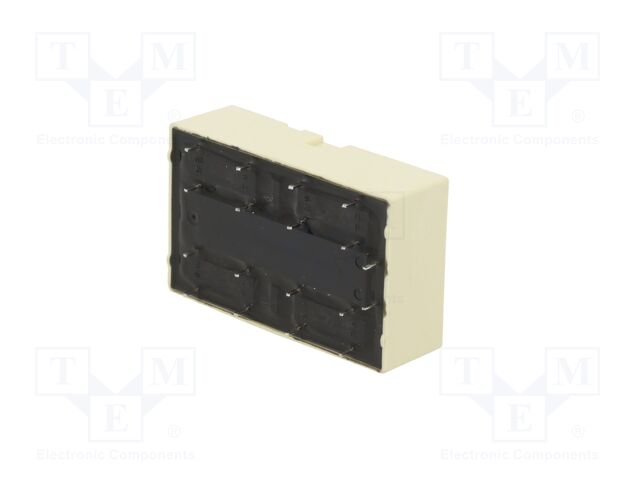

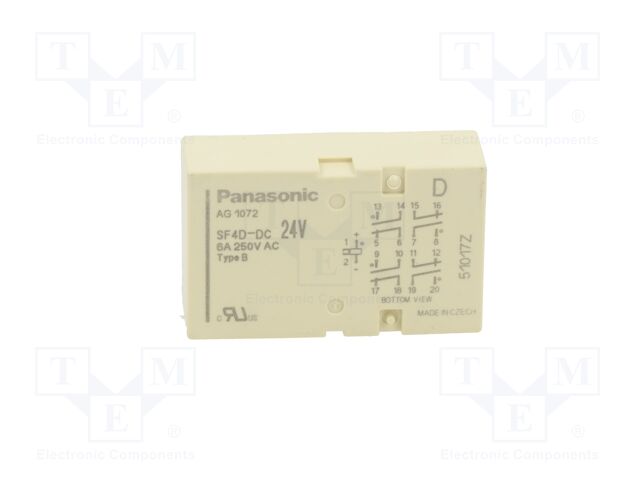

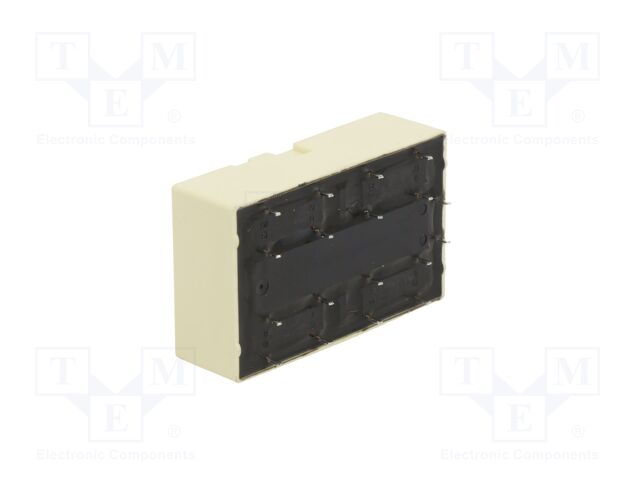

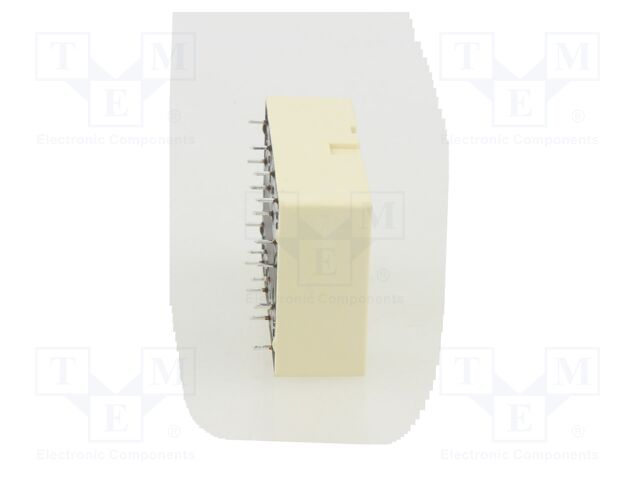

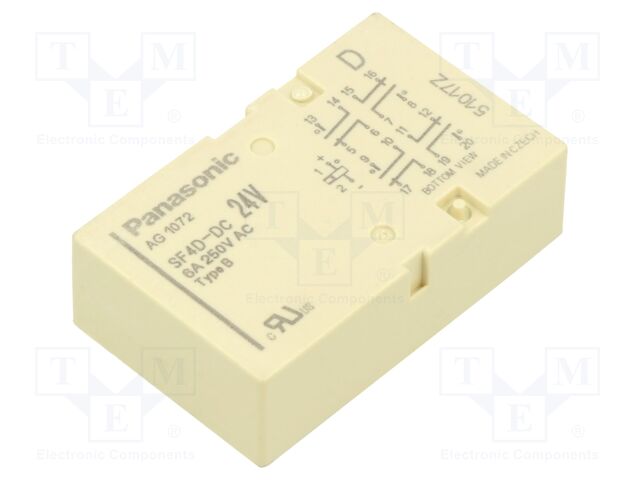

Relay: electromagnetic; SPST-NO x4 + SPST-NC x4; Ucoil: 24VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: SF4D-DC24V
    Manufacturer: PANASONIC
    Manufacturer code: SF4D-DC24V
    • Mounting
    • Operating temperature
    • Contact plating
    • Series
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption

    39.56 € 39.56 € (wo VAT) 39.56 EUR

    39.56 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO x4 + SPST-NC x4; Ucoil: 24VDC

    Mounting PCB
    Operating temperature -40...70°C
    Contact plating gold-plated
    Series SF4D
    Contact material AgSnO<sub>2</sub>
    Terminal pitch 10.16mm

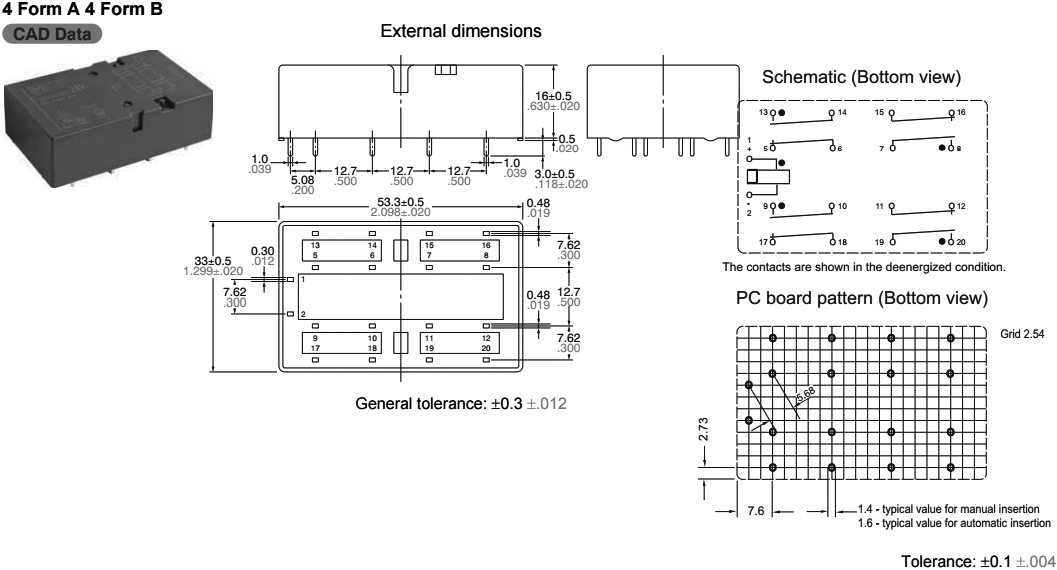

    Body dimensions 53.3x33x16.5mm
    Switched voltage max. 220V DC, max. 400V AC
    Coil resistance 1152Ω
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO x4 + SPST-NC x4
    DC contacts rating @R 3A / 24V DC
    Contact resistance 30mΩ
    AC contacts rating @R 6A / 250V AC
    Contact current max. 6A
    Relay variant safety
    Type of relay electromagnetic
    Coil power consumption 0.5W
