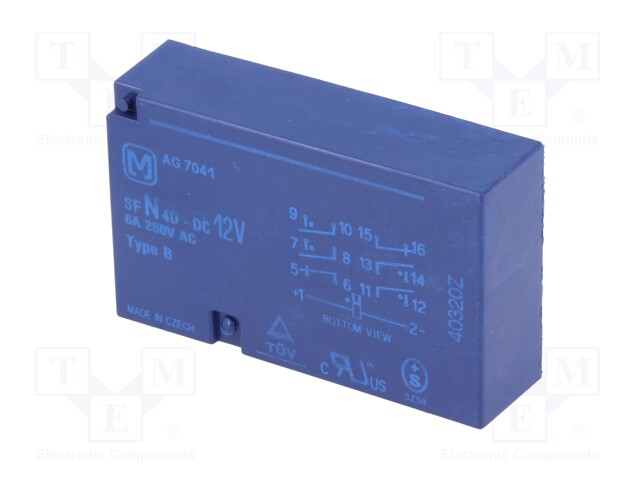

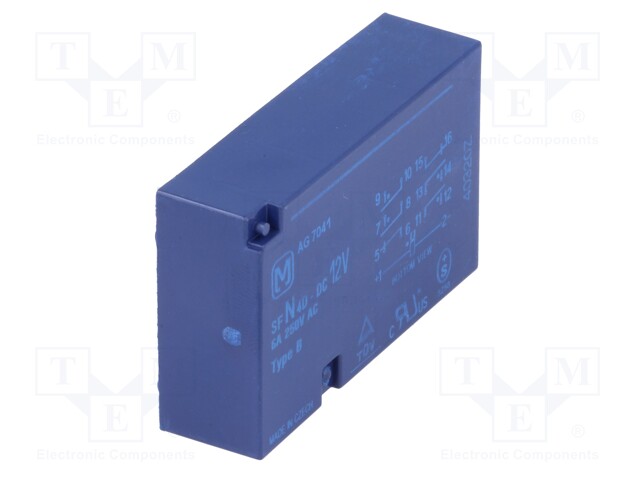

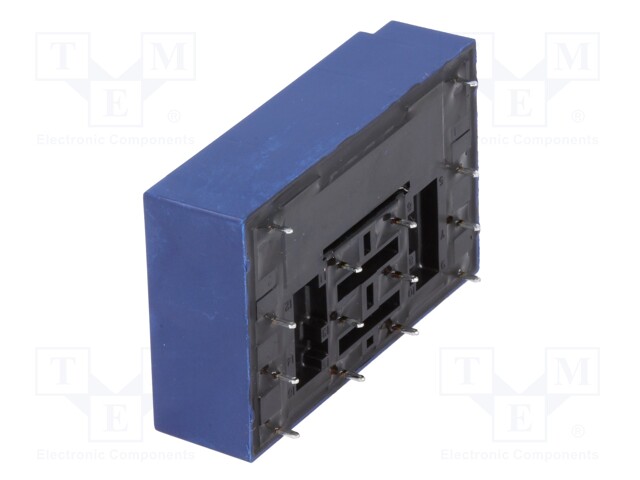

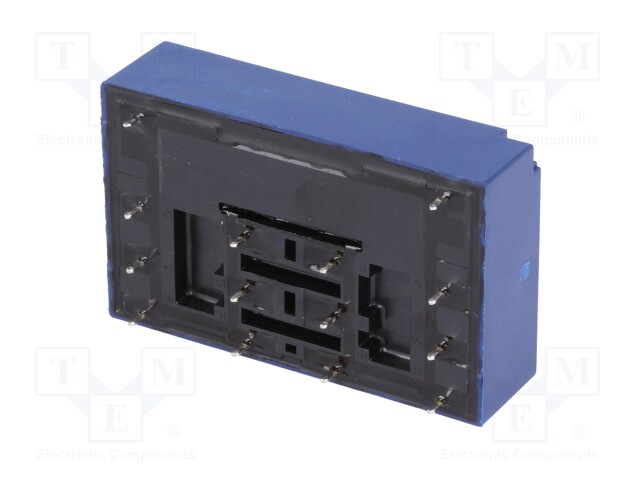

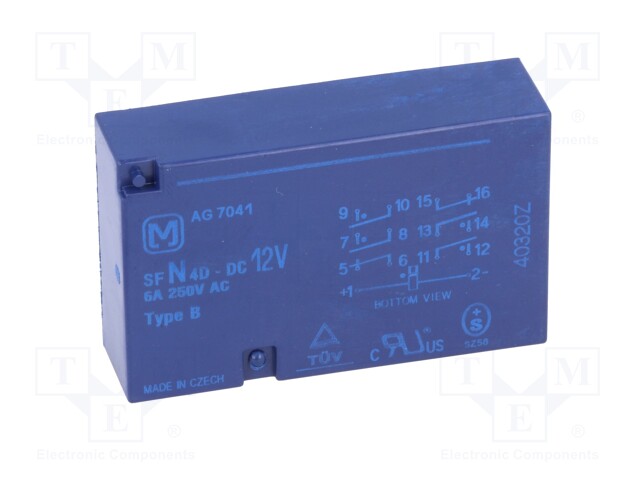

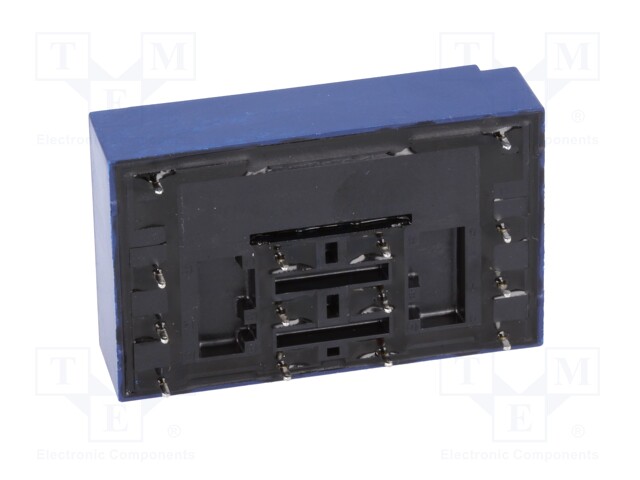

Relay: electromagnetic; SPST-NO x4 + SPST-NC x2; Ucoil: 12VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: SFN4D-DC12V
    Manufacturer: PANASONIC
    Manufacturer code: SFN4D-DC12V
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption

    28.32 € 28.32 € (wo VAT) 28.32 EUR

    28.32 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO x4 + SPST-NC x2; Ucoil: 12VDC

    Mounting PCB
    Operating temperature -25...90°C
    Contact plating gold-plated
    Contact material AgSnO<sub>2</sub>

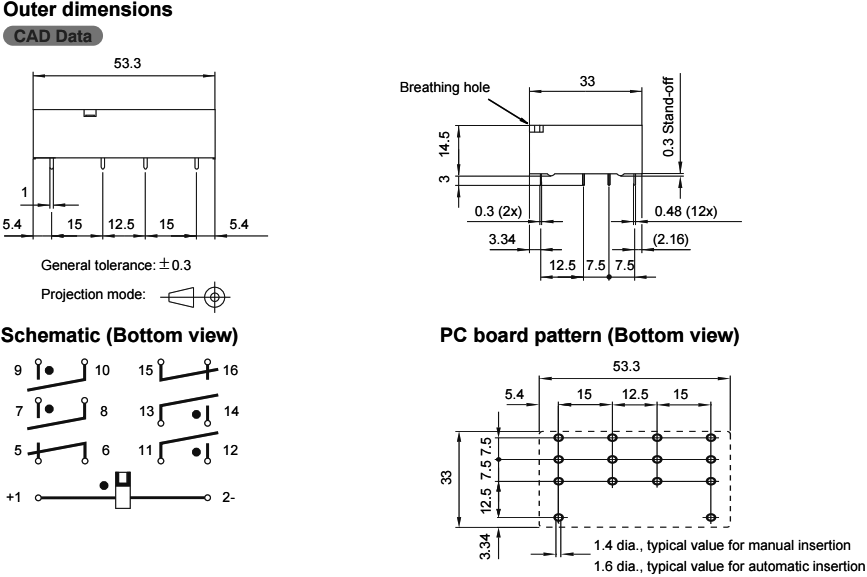

    Body dimensions 53.3x33x14.5mm
    Switched voltage max. 500V AC, max. 500V DC
    Coil resistance 370Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO x4 + SPST-NC x2
    DC contacts rating @R 6A / 24V DC
    Contact resistance 30mΩ
    AC contacts rating @R 6A / 250V AC
    Contact current max. 6A
    Relay variant safety
    Type of relay electromagnetic
    Coil power consumption 420mW
