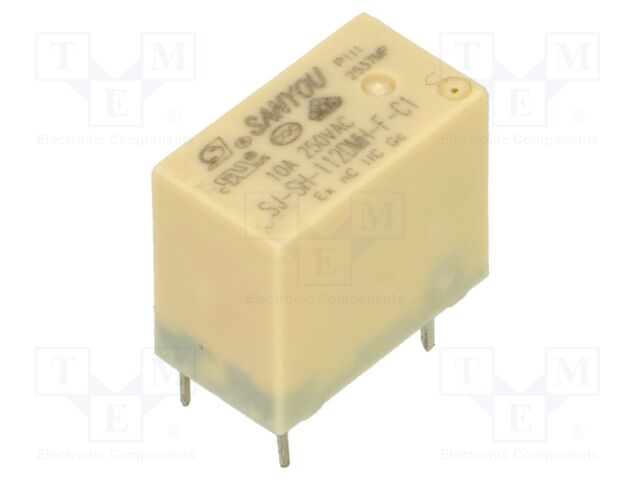

Relay: electromagnetic

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: SJ-SH-112DMH-F-C1(EX)
    Manufacturer: SANYOU
    Manufacturer code: SJ-SH-112DMH-F-C1(EX)
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Terminal pitch
    • Mechanical durability
    • Switched voltage
    • Electrical life
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Specification for Relay: electromagnetic

    Mounting THT
    Operating temperature -40...105°C
    Leads for PCB
    Contact material AgSnO<sub>2</sub>
    Terminal pitch 2.54mm
    Mechanical durability 10000000cycles
    Switched voltage max. 277V AC
    Electrical life 100000cycles
    Switching capacity 2.5kVA
    Coil resistance 320Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    AC contacts rating @R 10A / 250V AC
    Contact current max. 12A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 9V DC
    Coil power consumption 450mW
    Operate time 10ms
