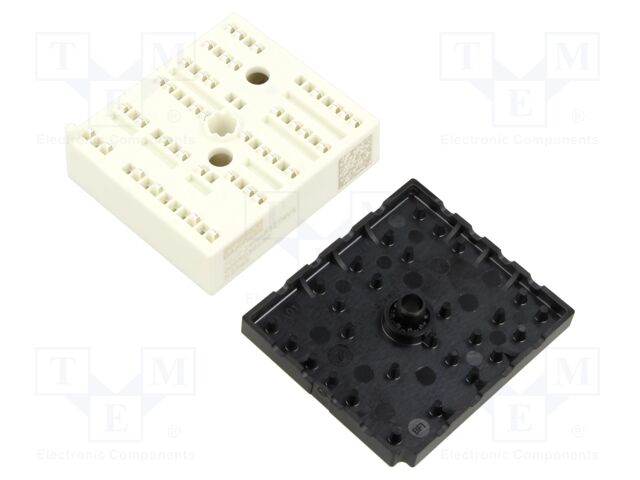

    Module: IGBT; MiniSKiiP® 2

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: SKIIP24NAB12T4V1
    Manufacturer: SEMIKRON DANFOSS
    Manufacturer code: SKIIP 24NAB12T4V1 25231420
    Certificates:
    • Case
    • Power
    • Electrical mounting
    • Mechanical mounting
    • Semiconductor structure
    • Max. off-state voltage
    • Application
    • Application
    • Gate-emitter voltage
    • Pulsed collector current
    • Topology
    • Topology
    • Topology
    • Topology
    • Collector current

    91.00 € 91.00 € (wo VAT) 91.0 EUR

    91.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Module: IGBT; MiniSKiiP® 2

    Case MiniSKiiP® 2
    Power 11kW
    Electrical mounting Press-Fit
    Mechanical mounting screw
    Semiconductor structure diode/transistor
    Max. off-state voltage 1.2kV
    Application for UPS, Inverter
    Gate-emitter voltage ±20V
    Pulsed collector current 105A
    Topology boost chopper, IGBT three-phase bridge, NTC thermistor, three-phase diode bridge
    Collector current 35A
