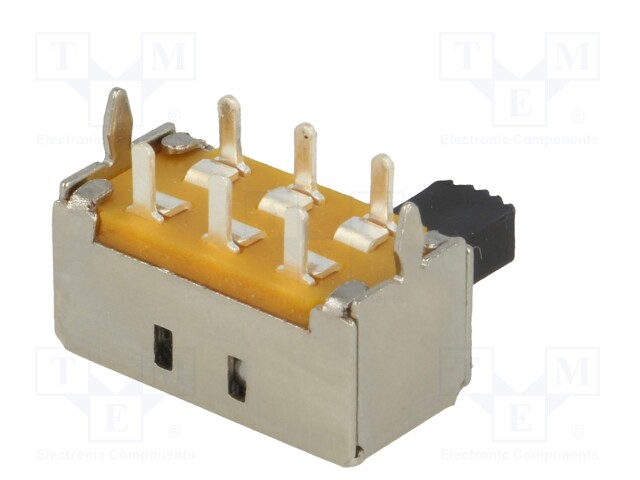

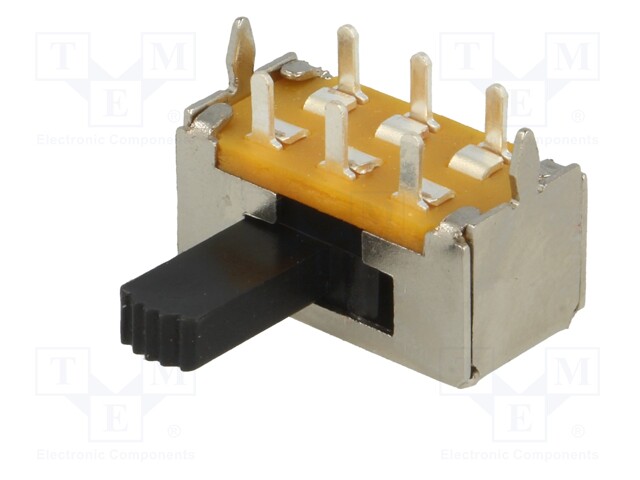

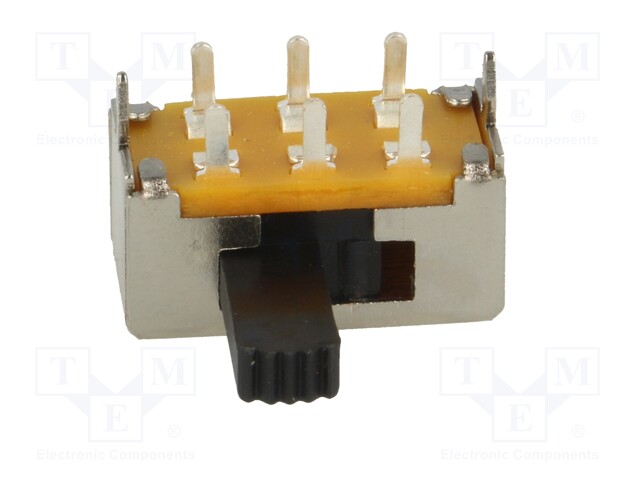

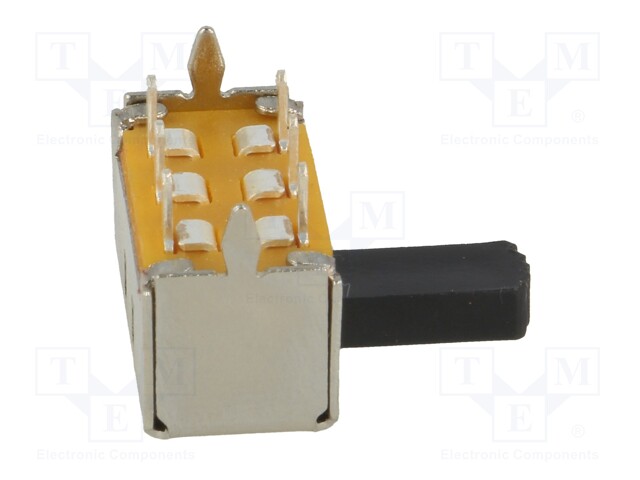

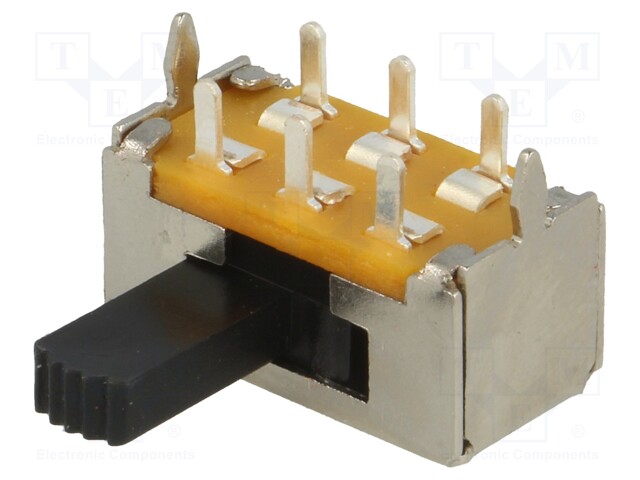

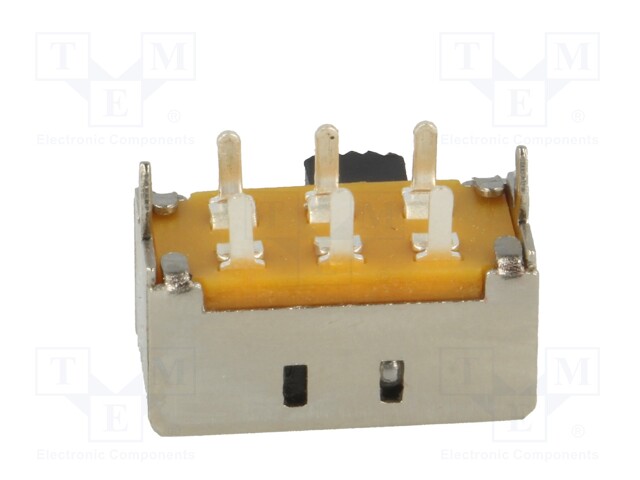

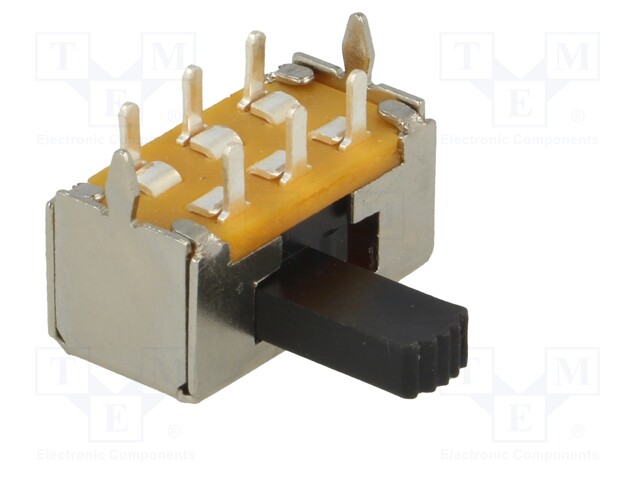

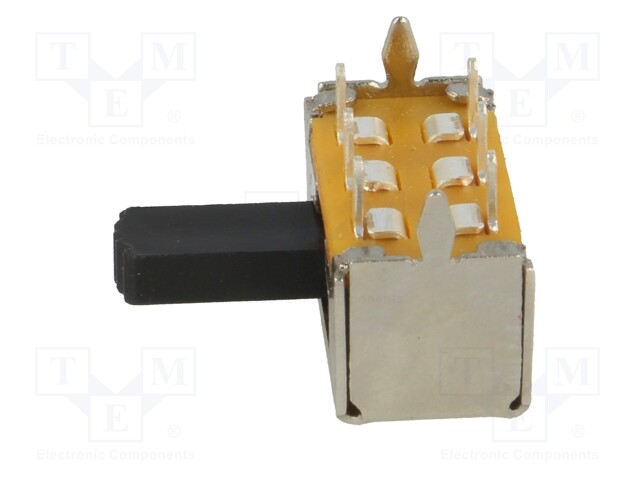

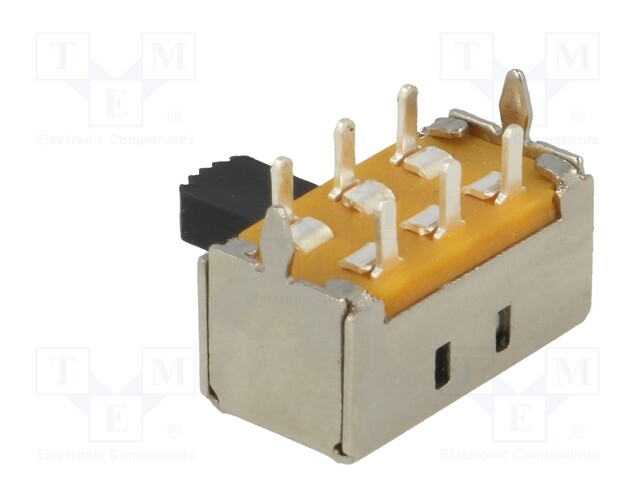

Switch: slide; Pos: 2; DPDT; 1A/125VDC; ON-ON; Mounting: THT; 50mΩ

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: SL13-212C
    Manufacturer: CANAL ELECTRONIC
    Manufacturer code: SL13-212C
    • Mounting
    • Operating temperature
    • Type of switch
    • Contact plating
    • Number of positions
    • Leads
    • Leads
    • Row pitch
    • Contact material
    • Max. contact resistance:
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Terminals plating
    • Contacts configuration
    • DC contacts rating @R
    • Switching method
    • Stable positions number
    • Terminals material

    1.92 € 1.92 € (wo VAT) 1.92 EUR

    1.92 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Switch: slide; Pos: 2; DPDT; 1A/125VDC; ON-ON; Mounting: THT; 50mΩ

    Mounting THT
    Operating temperature -20...60°C
    Type of switch slide
    Contact plating silver plated
    Number of positions 2
    Leads angled, for PCB
    Row pitch 6.9mm
    Contact material copper alloy
    Max. contact resistance: 50mΩ
    Terminal pitch 5mm

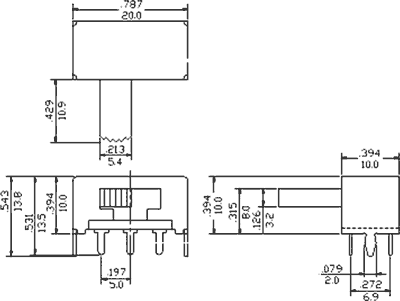

    Body dimensions 20x10x10mm
    Mechanical durability 10000cycles
    Terminals plating silver plated
    Contacts configuration DPDT
    DC contacts rating @R 1A / 125V DC
    Switching method ON-ON
    Stable positions number 2
    Terminals material copper alloy
