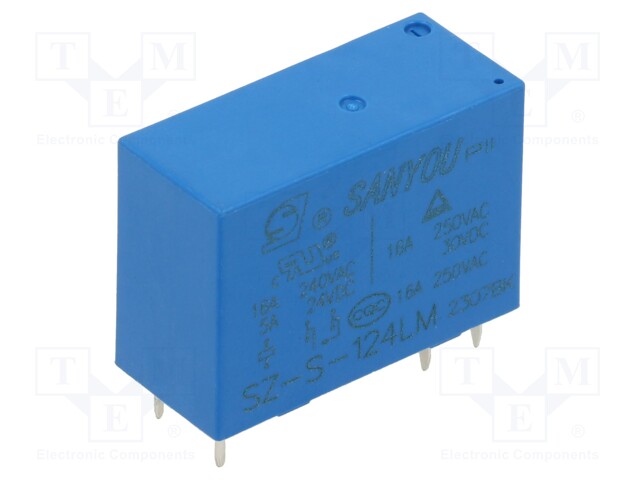

Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 16A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: SZ-S-124LM
    Manufacturer: SANYOU
    Manufacturer code: SZ-S-124LM
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    1.83 € 1.83 € (wo VAT) 1.83 EUR

    1.83 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 16A

    Mounting THT
    Operating temperature -40...85°C
    Contact material AgSnO<sub>2</sub>
    Body dimensions 29.2x12.8x20.6mm
    Switched voltage max. 30V DC, max. 250V AC
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO
    Contact resistance 100MΩ
    AC contacts rating @R 16A
    Contact current max. 16A
    Coil voltage max. 31.2V DC
    Type of relay electromagnetic
    Coil voltage min. 18V DC
    Coil power consumption 540mW
