Converter: DC/DC; 60W; Uin: 36÷75V; Uout: 15VDC; Uout2: -15VDC; 2"x1"

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: TEN 60-4823WIR
    Manufacturer: TRACO POWER
    Manufacturer code: TEN 60-4823WIR
    • Output current
    • Mounting
    • Case
    • Power
    • Operating temperature
    • Protection
    • Series
    • Body dimensions
    • Output voltage
    • Insulation voltage
    • Efficiency
    • Output current 2
    • Output voltage 2
    • Number of outputs
    • Conform to the norm
    • Switching frequency

    132.68 € 132.68 € (wo VAT) 132.68 EUR

    132.68 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Converter: DC/DC; 60W; Uin: 36÷75V; Uout: 15VDC; Uout2: -15VDC; 2"x1"

    Output current 2A
    Mounting THT
    Case 2"x1"
    Power 60W
    Operating temperature -40...90°C
    Protection voltage drop
    Series TEN 60WIR

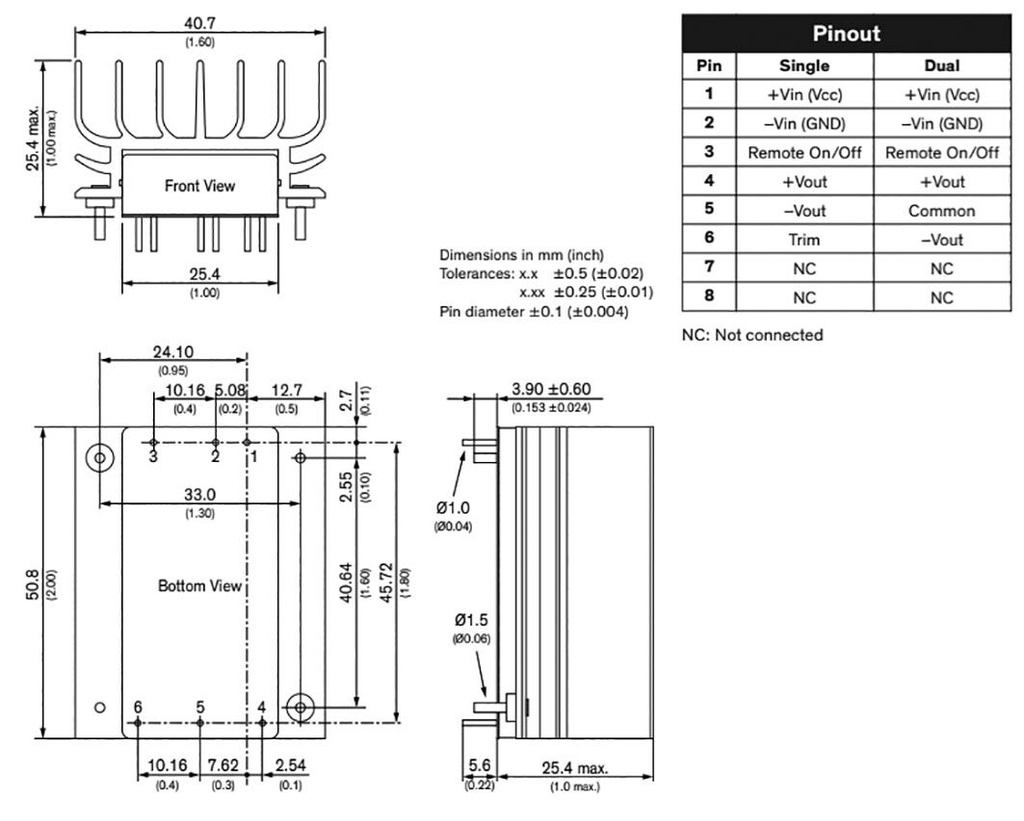

    Body dimensions 50.8x40.7x25.4mm
    Output voltage 15V DC
    Insulation voltage 3kV
    Efficiency 92%
    Output current 2 2A
    Output voltage 2 -15V DC
    Number of outputs 2
    Conform to the norm EN 50155
    Switching frequency 250kHz
