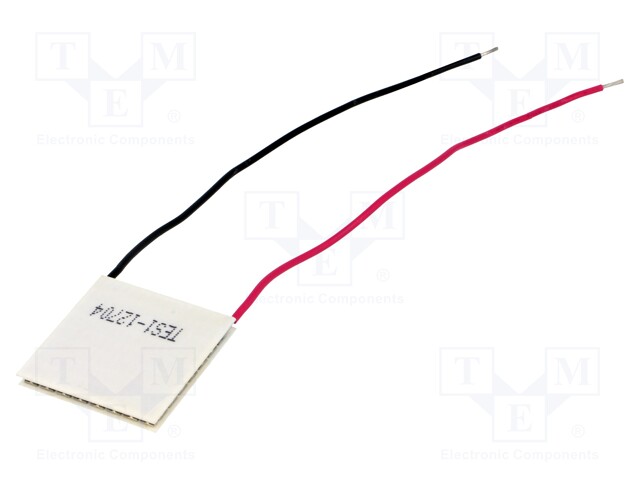

Module: Peltier; 14.6V; 4.3A; 30x30x3.3mm; 36W; Mat: Al2O3; 16AWG

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: TES1-12704
    Manufacturer: STONECOLD
    Manufacturer code: TES1-12704
    • Resistance
    • Max. operating current
    • Operating temperature
    • Material
    • Contact material
    • Body dimensions
    • Max. operating voltage
    • Max. temperature difference
    • Wire insulation material
    • Max. heat pump capacity
    • Cable length

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Module: Peltier; 14.6V; 4.3A; 30x30x3.3mm; 36W; Mat: Al2O3; 16AWG

    Resistance 3.1Ω
    Max. operating current 4.3A
    Operating temperature max. 138°C
    Material Al<sub>2</sub>O<sub>3</sub>
    Contact material BiSn
    Body dimensions 30x30x3.3mm
    Max. operating voltage 14.6V
    Max. temperature difference 68°C
    Wire insulation material teflon
    Max. heat pump capacity 36W
    Cable length 150mm
