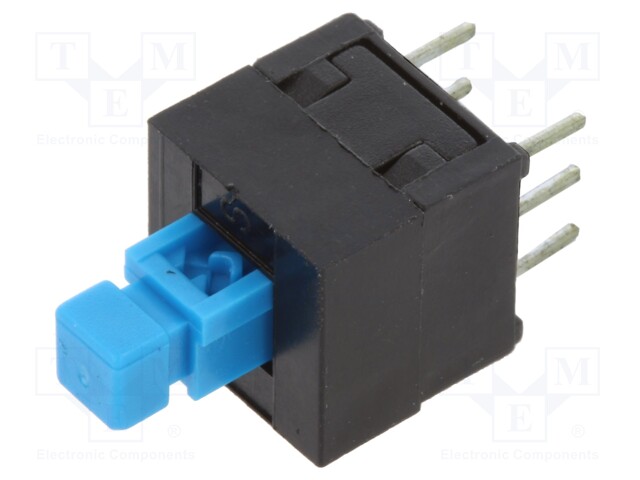

Switch: push-button; Pos: 2; DPDT; 0.1A/30VDC; ON-(ON); Pitch: 2.5mm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: TL2202OAYA
    Manufacturer: E-SWITCH
    Manufacturer code: TL2202OAYA
    • Mounting
    • Operating temperature
    • Type of switch
    • Contact plating
    • Number of positions
    • Leads
    • Contact material
    • Max. contact resistance:
    • Terminal pitch
    • Mechanical durability
    • Illumination
    • Contacts configuration
    • DC contacts rating @R
    • Switching method
    • Stable positions number
    • Button shape

    0.74 € 0.74 € (wo VAT) 0.74 EUR

    0.74 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Switch: push-button; Pos: 2; DPDT; 0.1A/30VDC; ON-(ON); Pitch: 2.5mm

    Mounting THT
    Operating temperature -20...70°C
    Type of switch push-button
    Contact plating silver plated
    Number of positions 2
    Leads for PCB
    Contact material phosphor bronze
    Max. contact resistance: 100mΩ
    Terminal pitch 2.5mm
    Mechanical durability 10000cycles
    Illumination none
    Contacts configuration DPDT
    DC contacts rating @R 0.1A / 30V DC
    Switching method ON-(ON)
    Stable positions number 1
    Button shape square
