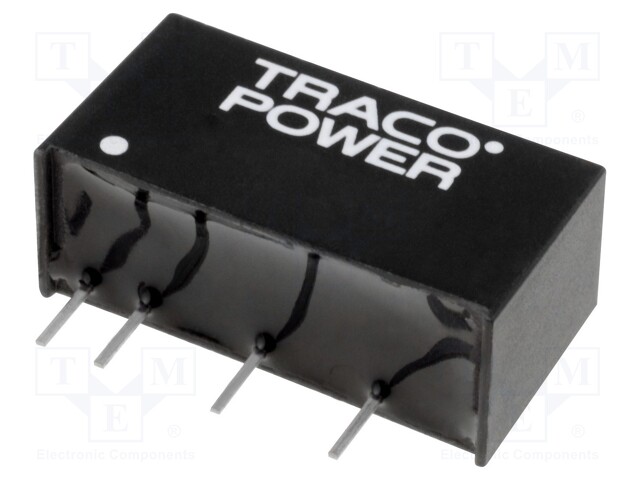

Converter: DC/DC; 2W; Uin: 10.8÷13.2V; Uout: 12VDC; Uout2: -12VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: TMH1212D
    Manufacturer: TRACO POWER
    Manufacturer code: TMH1212D
    • Output current
    • Mounting
    • Case
    • Power
    • Operating temperature
    • Protection
    • Series
    • Body dimensions
    • Output voltage
    • Insulation voltage
    • Efficiency
    • Output current 2
    • Output voltage 2
    • Number of outputs
    • Switching frequency

    8.19 € 8.19 € (wo VAT) 8.19 EUR

    8.19 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Converter: DC/DC; 2W; Uin: 10.8÷13.2V; Uout: 12VDC; Uout2: -12VDC

    Output current 80mA
    Mounting THT
    Case SIP7
    Power 2W
    Operating temperature -40...85°C
    Protection short circuit protection
    Series TMH

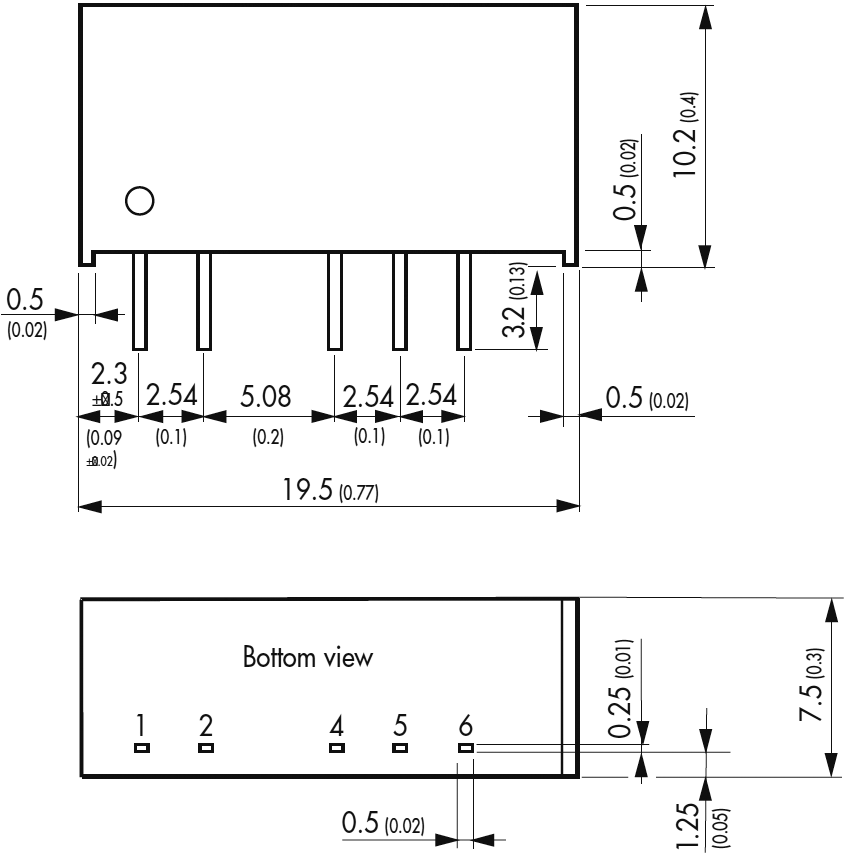

    Body dimensions 19.5x10.2x7.5mm
    Output voltage 12V DC
    Insulation voltage 1kV
    Efficiency 82%
    Output current 2 -80mA
    Output voltage 2 -12V DC
    Number of outputs 2
    Switching frequency 80kHz
