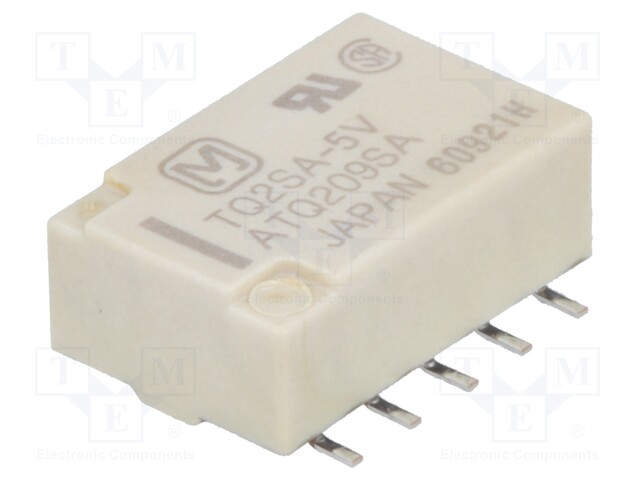

Relay: electromagnetic; DPDT; Ucoil: 5VDC; 0.5A/125VAC; 1A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: TQ2SA-5V
    Manufacturer: PANASONIC
    Manufacturer code: TQ2SA-5V
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Coil current

    5.06 € 5.06 € (wo VAT) 5.0600000000000005 EUR

    5.06 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPDT; Ucoil: 5VDC; 0.5A/125VAC; 1A/30VDC

    Mounting SMD
    Operating temperature -40...85°C
    Contact plating gold-plated
    Contact material silver alloy
    Mechanical durability 100000000cycles
    Switched voltage max. 110V DC, max. 125V AC
    Coil resistance 178Ω
    Rated coil voltage 5V DC
    Contacts configuration DPDT
    DC contacts rating @R 1A / 30V DC
    AC contacts rating @R 0.5A / 125V AC
    Contact current max. 2A
    Relay variant signal, subminiature
    Type of relay electromagnetic
    Coil power consumption 140mW
    Coil current 28.1mA
