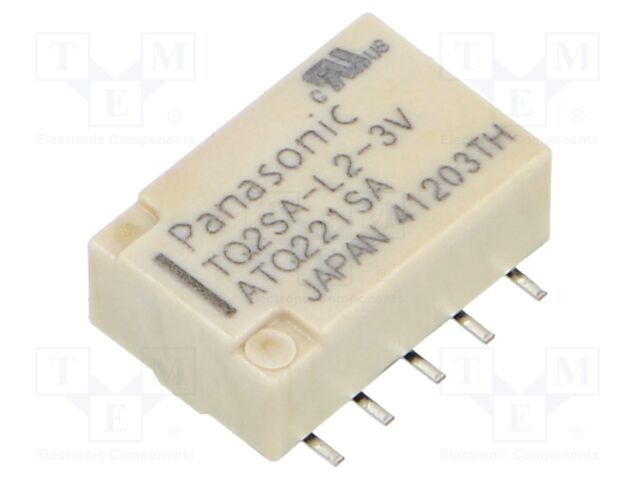

Relay: electromagnetic; DPDT; Ucoil: 3VDC; Icontacts max: 2A; SMD

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: TQ2SAL23ULCSAJ
    Manufacturer: PANASONIC
    Manufacturer code: TQ2SAL23ULCSAJ
    • Mounting
    • Operating temperature
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Coil current

    4.59 € 4.59 € (wo VAT) 4.59 EUR

    4.59 €

    This combination does not exist.

    Add to Cart

    Specification for Relay: electromagnetic; DPDT; Ucoil: 3VDC; Icontacts max: 2A; SMD

    Mounting SMD
    Operating temperature -40...85°C
    Mechanical durability 100000000cycles
    Switched voltage max. 110V DC, max. 125V AC
    Coil resistance 45Ω
    Rated coil voltage 3V DC
    Contacts configuration DPDT
    DC contacts rating @R 1A / 30V DC
    AC contacts rating @R 0.5A / 125V AC
    Contact current max. 2A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 200mW
    Coil current 66.7mA
