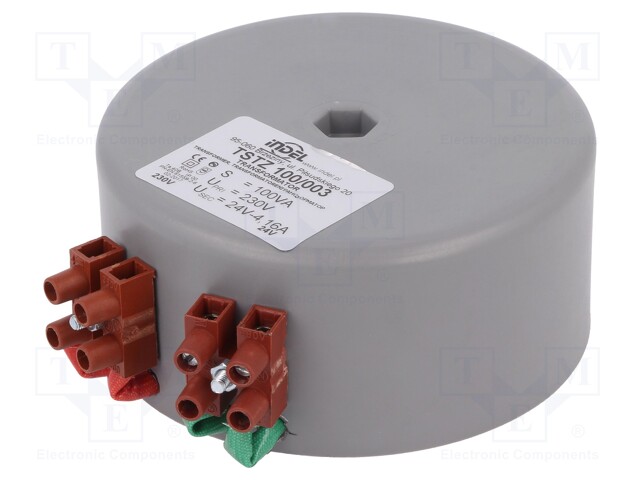

Transformer: toroidal; 100VA; 230VAC; 24V; 4.16A; 1.4kg; Ø: 95mm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: TSTZ 100/003
    Manufacturer: INDEL
    Manufacturer code: TSTZ 100/003
    • IP rating
    • Leads
    • Height
    • Diameter
    • Insulation class
    • A dimension
    • C dimension
    • E dimension
    • Dimension G
    • Type of transformer
    • Primary voltage
    • Secondary voltage 1
    • Thermal class
    • Secondary winding current 1
    • Power VA

    55.09 € 55.09 € (wo VAT) 55.09 EUR

    55.09 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Transformer: toroidal; 100VA; 230VAC; 24V; 4.16A; 1.4kg; Ø: 95mm

    IP rating IP00
    Leads terminal block
    Height 44mm
    Diameter 95mm
    Insulation class II

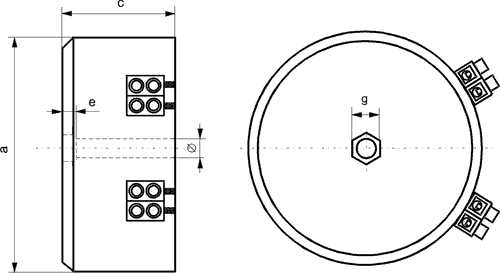

    A dimension 95mm
    C dimension 44mm
    E dimension 5.6mm
    Dimension G 10mm
    Type of transformer toroidal
    Primary voltage 230V AC
    Secondary voltage 1 24V
    Thermal class Ta40B
    Secondary winding current 1 4.16A
    Power VA 100VA
