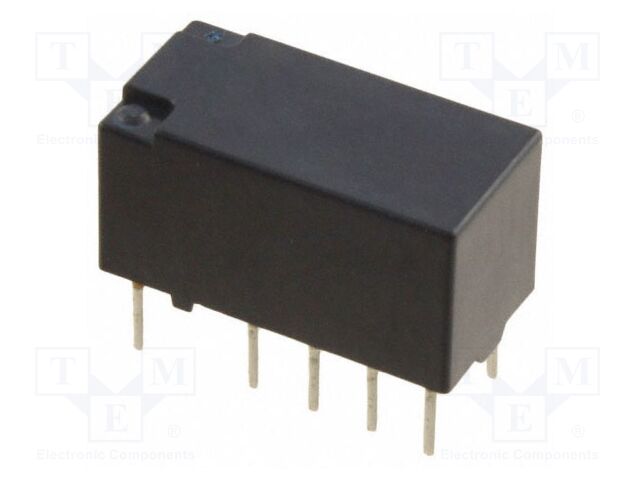

Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 2A; TX

    Multiples: 1000.0
    Minimum quantity: 1000.0
    Product code: TX2-LT-5V-TH
    Manufacturer: PANASONIC
    Manufacturer code: TX2-LT-5V-TH
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Electrical life
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Coil current

    3.00 € 3.00 € (wo VAT) 3.0 EUR

    3.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 2A; TX

    Mounting THT
    Operating temperature -40...85°C
    Leads for PCB
    Contact material Ag/Au
    Terminal pitch 2.54mm
    Body dimensions 15x7.4x8.2mm
    Mechanical durability 100000000cycles
    Electrical life 100000cycles
    Coil resistance 125Ω
    Rated coil voltage 5V DC
    Contacts configuration DPDT
    DC contacts rating @R 2A / 30V DC
    AC contacts rating @R 2A / 250V AC
    Contact current max. 2A
    Relay variant bistable, signal
    Type of relay electromagnetic
    Coil power consumption 200mW
    Operate time 4ms
    Coil current 40mA
