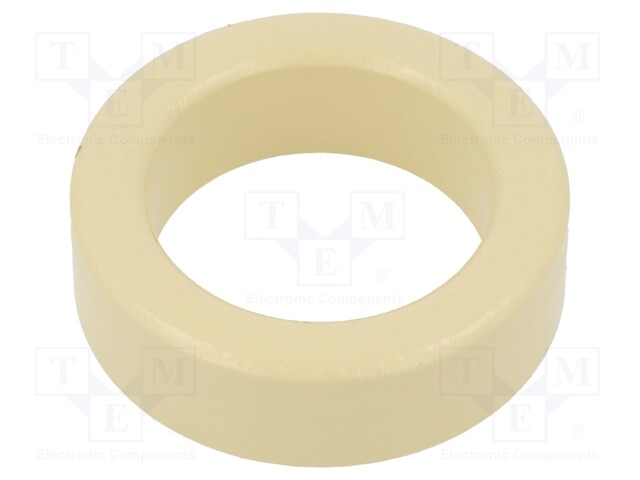

Ferrite: toroidal; L: 17.9mm; Øint: 40.5mm; Øout: 58.7mm; 6900nH

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: TX58/41/18-3E25
    Manufacturer: FERROXCUBE
    Manufacturer code: TX58/41/18-3E25
    • Internal diameter
    • Outside diameter
    • Type of ferrite
    • Ferrite application
    • Ferrite application
    • Ferrite application
    • Core material
    • Inductance factor Al
    • Ferrite features
    • Effective core volume (Ve)
    • Effective core cross-section (Ae)

    16.24 € 16.24 € (wo VAT) 16.240000000000002 EUR

    16.24 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Ferrite: toroidal; L: 17.9mm; Øint: 40.5mm; Øout: 58.7mm; 6900nH

    Internal diameter 40.5mm
    Outside diameter 58.7mm
    Type of ferrite toroidal
    Ferrite application impulse transformers, RFI filters, wideband transformers
    Core material 3E25
    Inductance factor Al 6900nH
    Ferrite features rounded edges eliminate risk of wire damage
    Effective core volume (Ve) 23200mm<sup>3</sup>
    Effective core cross-section (Ae) 152.4mm<sup>2</sup>
