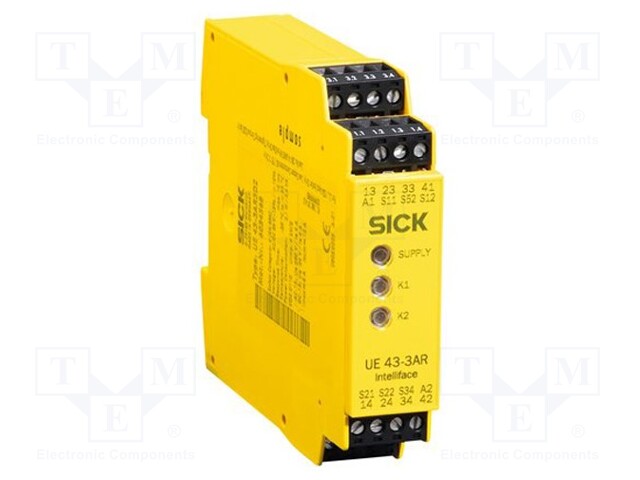

Module: safety relay; Series: UE43-3AR; IN: 2; OUT: 4; Mounting: DIN

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: UE43-3AR3D2
    Manufacturer: SICK
    Manufacturer code: UE43-3AR3D2
    • Mounting
    • Supply voltage
    • Supply voltage
    • Operating temperature
    • IP rating
    • Series
    • Body dimensions
    • Number of inputs
    • Number of outputs
    • Electrical connection
    • Safety category
    • Input 1 properties
    • Safety outputs
    • Auxiliary outputs

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Module: safety relay; Series: UE43-3AR; IN: 2; OUT: 4; Mounting: DIN

    Mounting for DIN rail mounting
    Supply voltage 24V AC, 24V DC
    Operating temperature -25...55°C
    IP rating IP20
    Series UE43-3AR
    Body dimensions 22.5x96.5x114mm
    Number of inputs 2
    Number of outputs 4
    Electrical connection screw pin
    Safety category 4
    Input 1 properties 2 channel
    Safety outputs 3x NO
    Auxiliary outputs 1x NC
