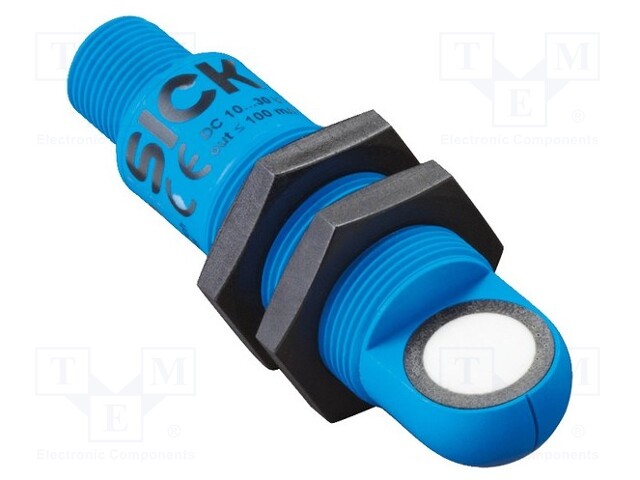

Sensor: ultrasonic; angular; Range: 20÷150mm; NPN / NO / NC; PIN: 4

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: UM18-217165102
    Manufacturer: SICK
    Manufacturer code: UM18-217165102
    • Supply voltage
    • Max. operating current
    • Operating temperature
    • IP rating
    • Number of pins
    • Body material
    • Range
    • Output configuration
    • Kind of sensor
    • Type of sensor
    • Connection
    • Switch housing
    • Switching frequency max

    281.58 € 281.58 € (wo VAT) 281.58 EUR

    281.58 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Sensor: ultrasonic; angular; Range: 20÷150mm; NPN / NO / NC; PIN: 4

    Supply voltage 10...30V DC
    Max. operating current 200mA
    Operating temperature -25...70°C
    IP rating IP67
    Number of pins 4
    Body material PBT
    Range 20...150mm
    Output configuration NPN / NO / NC
    Kind of sensor angular
    Type of sensor ultrasonic
    Connection connector M12
    Switch housing M18
    Switching frequency max 25Hz
