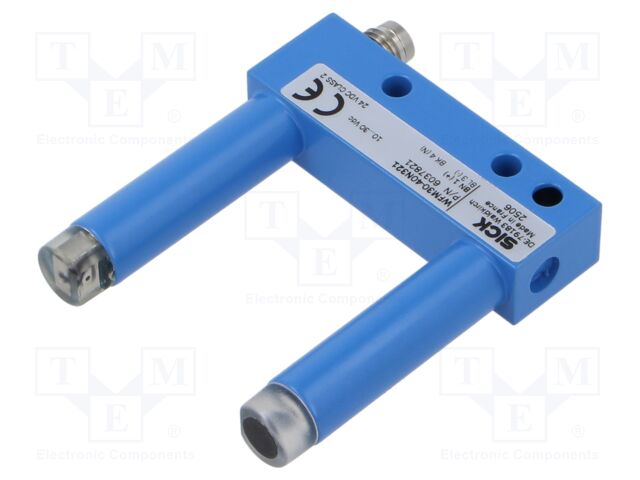

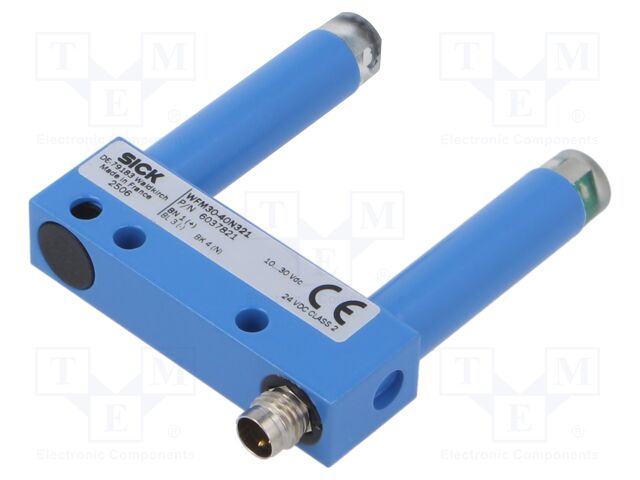

Sensor: photoelectric; Range: 30mm; NPN; DARK-ON; Usup: 10÷30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: WFM30-40N321
    Manufacturer: SICK
    Manufacturer code: WFM30-40N321
    • Supply voltage
    • Max. operating current
    • Operating temperature
    • IP rating
    • Number of pins
    • Body material
    • Body material
    • Range
    • Output configuration
    • Type of sensor
    • Depth
    • Connection
    • Operation mode
    • Switching frequency max
    • Operation modes

    174.24 € 174.24 € (wo VAT) 174.24 EUR

    174.24 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Sensor: photoelectric; Range: 30mm; NPN; DARK-ON; Usup: 10÷30VDC

    Supply voltage 10...30V DC
    Max. operating current 100mA
    Operating temperature -10...60°C
    IP rating IP67
    Number of pins 3
    Body material aluminium, metal
    Range 30mm
    Output configuration NPN
    Type of sensor photoelectric

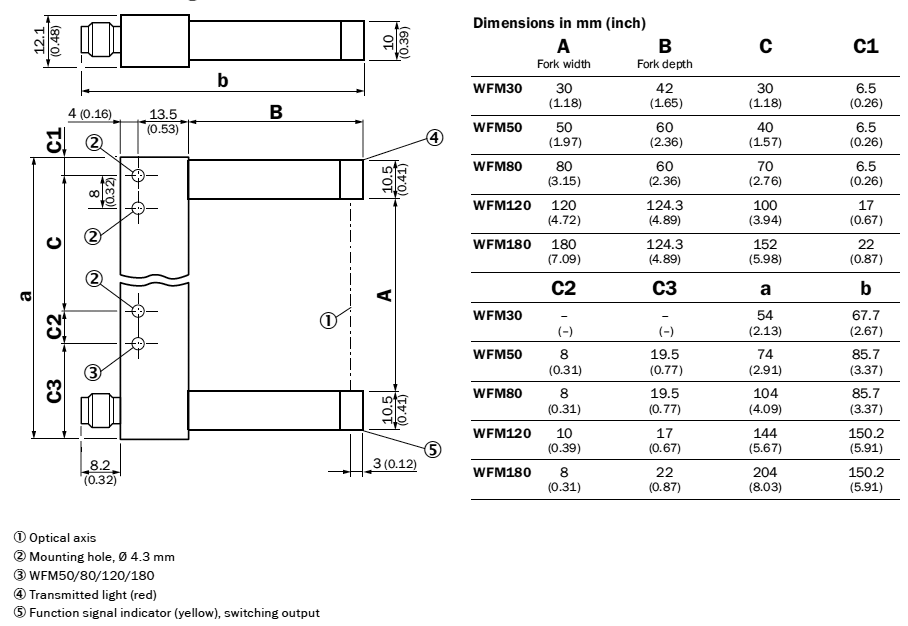

    Depth 42mm
    Connection connector M8
    Operation mode through-beam (with slot)
    Switching frequency max 4kHz
    Operation modes DARK-ON
