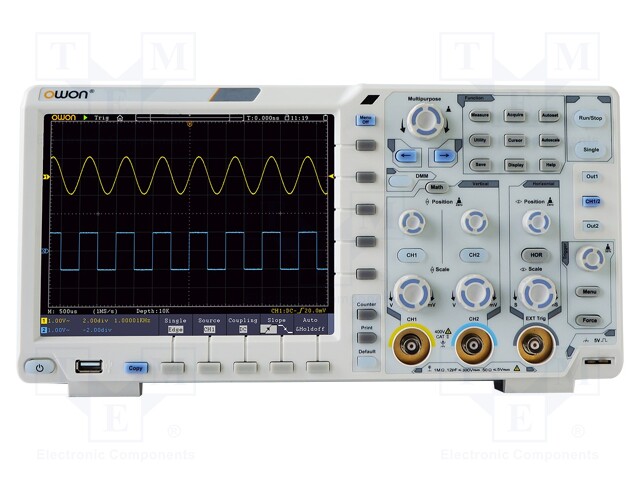

Oscilloscope: digital; Channels: 2; 1Gsps; 40Mpts; Series: XDS; 15W

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: XDS3062A/B
    Manufacturer: Owon
    Manufacturer code: XDS3062A/B
    • Supply voltage
    • Number of channels
    • Kind of connector
    • Kind of connector
    • Series
    • Power consumption
    • Display resolution
    • Power supply
    • Max. input voltage
    • Trigger
    • Trigger
    • Trigger
    • Trigger
    • Trigger
    • Measuring instrument features
    • Measuring instrument features
    • Measuring instrument features
    • Measuring instrument features
    • Standard equipment
    • Standard equipment
    • Standard equipment
    • Standard equipment
    • Sampling
    • Type of oscilloscope
    • Trigger modes
    • Trigger modes
    • Trigger modes
    • Vertical resolution
    • Input coupling

    528.20 € 528.20 € (wo VAT) 528.2 EUR

    528.20 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Oscilloscope: digital; Channels: 2; 1Gsps; 40Mpts; Series: XDS; 15W

    Supply voltage 100...240V AC
    Number of channels 2
    Kind of connector RJ45, USB
    Series XDS
    Power consumption 15W
    Display resolution 800x600
    Power supply Li-Ion 3,7V rechargeable battery
    Max. input voltage 300V
    Trigger falling-edge, logic, rising-edge, video signal, window
    Measuring instrument features AUTOSET function for setting display parameters (time base, gain), mathematical functions: addition, subtraction, division, multiplication and FFT, measurements by means of cursors, protocols analyse: I2C, CAN, SPI, RS232/UART
    Standard equipment mains cable, oscilloscope probe (1 per channel), USB cable, user's manual
    Sampling 1Gsps
    Type of oscilloscope digital
    Trigger modes automatic, normal, single
    Vertical resolution 12bit
    Input coupling AC, DC, GND
