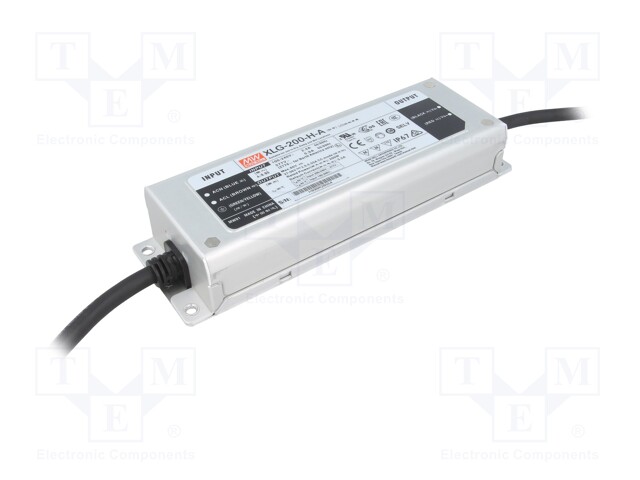

Power supply: switched-mode; LED; 200W; 27÷56VDC; 1750÷5550mA

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: XLG-200-H-A
    Manufacturer: MEAN WELL
    Manufacturer code: XLG-200-H-A
    • Supply voltage
    • Operating temperature
    • IP rating
    • Protection
    • Protection
    • Protection
    • Protection
    • Type of power supply
    • Application
    • Body dimensions
    • Output voltage
    • Additional functions
    • Additional functions
    • Operating modes
    • Efficiency
    • Number of outputs
    • Electrical connection

    37.98 € 37.98 € (wo VAT) 37.980000000000004 EUR

    37.98 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Power supply: switched-mode; LED; 200W; 27÷56VDC; 1750÷5550mA

    Supply voltage 100...305V AC
    Operating temperature -40...90°C
    IP rating IP67
    Protection overheating, anti-overload, anti-overvoltage, short circuit protection
    Type of power supply switched-mode
    Application LED

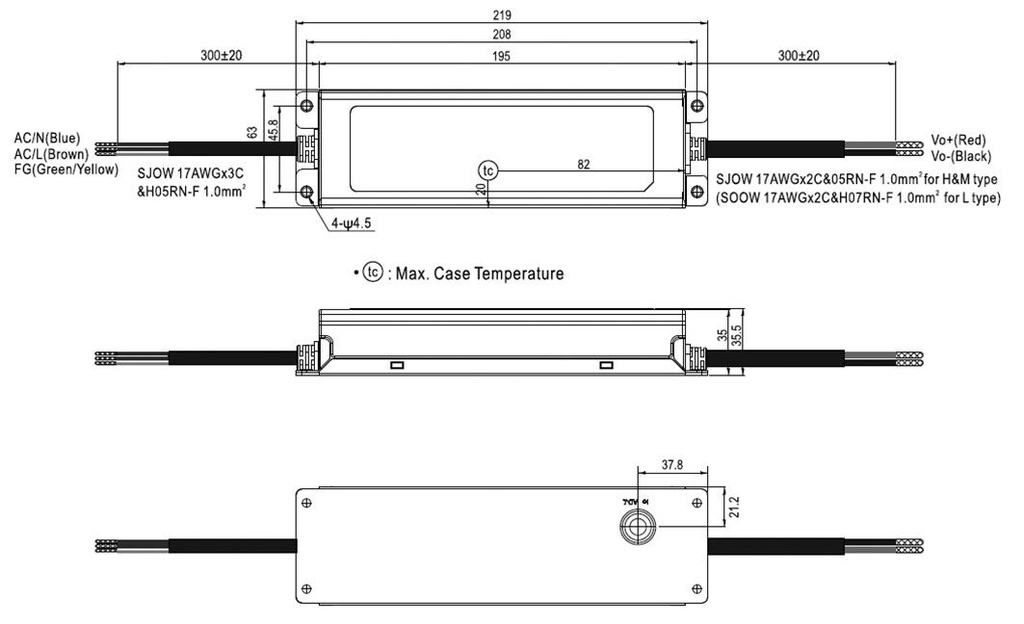

    Body dimensions 199x63x35.5mm
    Output voltage 27...56V DC
    Additional functions active PFC, adjustable output current level
    Operating modes constant power
    Efficiency 93%
    Number of outputs 1
    Electrical connection wires
