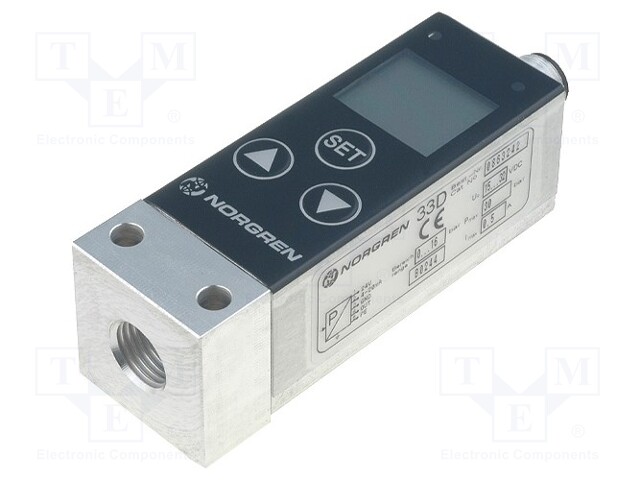

Module: transducer; pressure; 0÷16 bar; OUT: 2; OUT 1: PNP; 15÷32VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 0863242000000000
    Tootja: NORGREN HERION
    Tootja tootekood: 0863242000000000
    • Mounting
    • Supply voltage
    • Operating temperature
    • IP rating
    • Series
    • Kind of display used
    • Additional functions
    • Additional functions
    • Additional functions
    • Additional functions
    • Measurement accuracy
    • Number of outputs
    • Electrical connection
    • Electrical connection
    • Controlled parameter
    • Kind of output 1
    • The programming method
    • Kind of output 2
    • Regulation for output 1

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Module: transducer; pressure; 0÷16 bar; OUT: 2; OUT 1: PNP; 15÷32VDC

    Mounting G 1/4"
    Supply voltage 15...32V DC
    Operating temperature -10...60°C
    IP rating IP65
    Series 33D
    Kind of display used LCD
    Additional functions designed for aggressive, neutral, non-flammable gases and water, LED status indicator, Programmable measurement units - bar, psi, MPa, switch ON and OFF thresholds are adjustable independently 0-100% of the range
    Measurement accuracy 0.2%
    Number of outputs 2
    Electrical connection 4pin, M12 x 1
    Controlled parameter pressure
    Kind of output 1 PNP
    The programming method foil keypad
    Kind of output 2 analogue
    Regulation for output 1 ON-OFF
