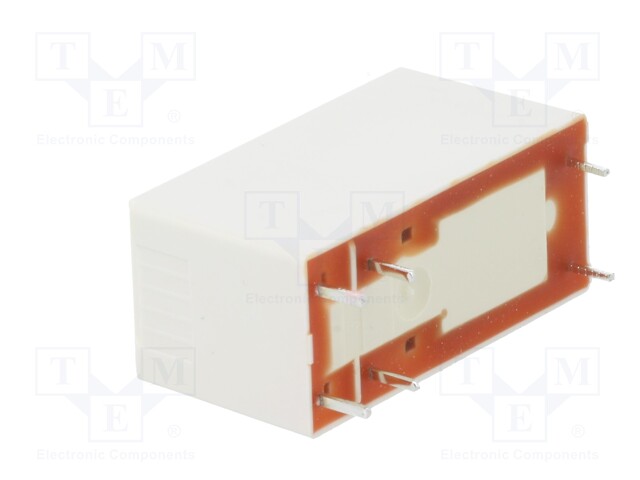

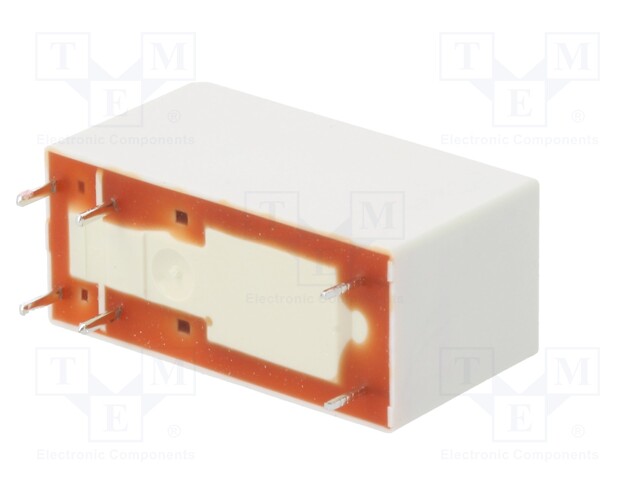

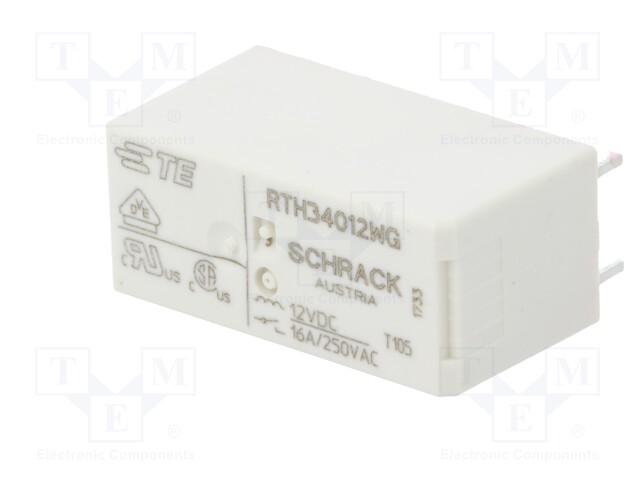

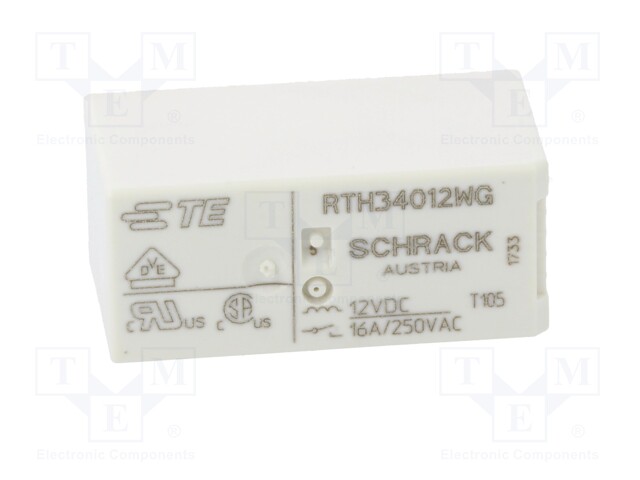

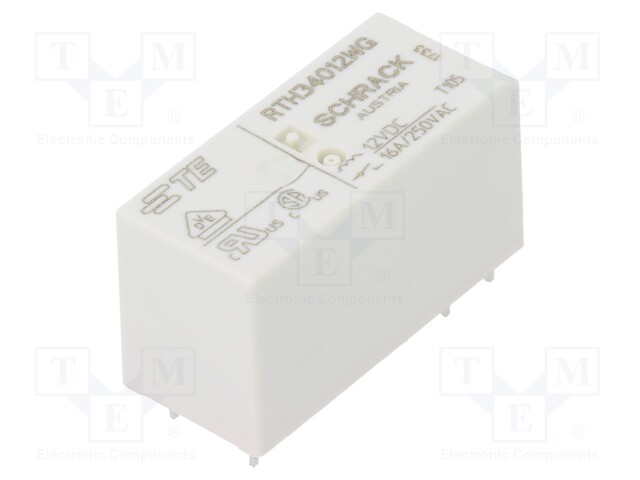

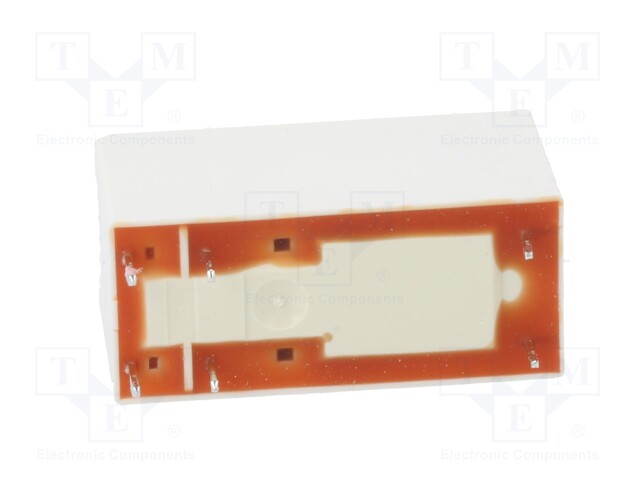

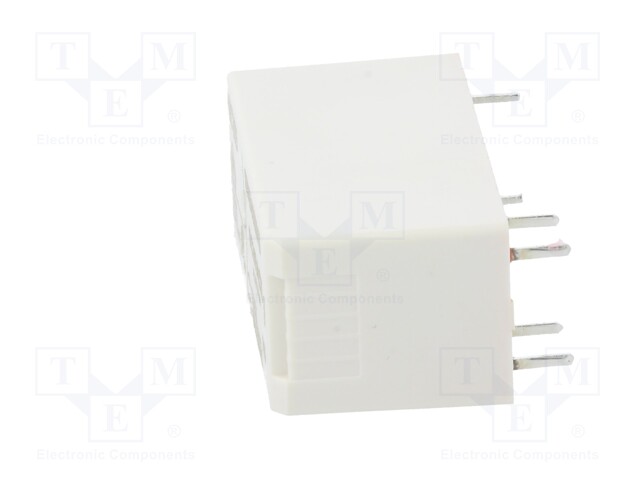

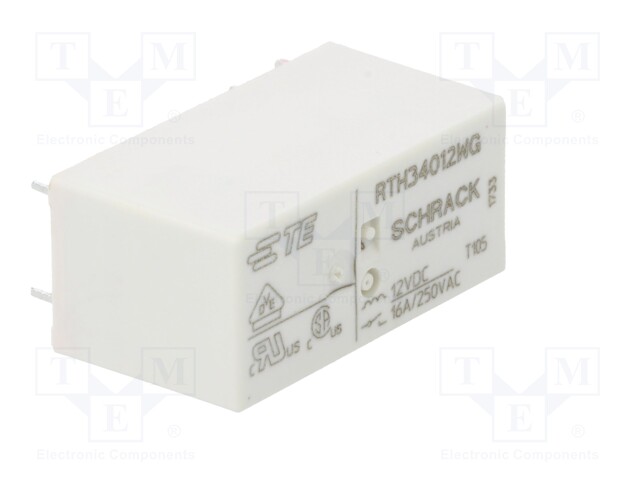

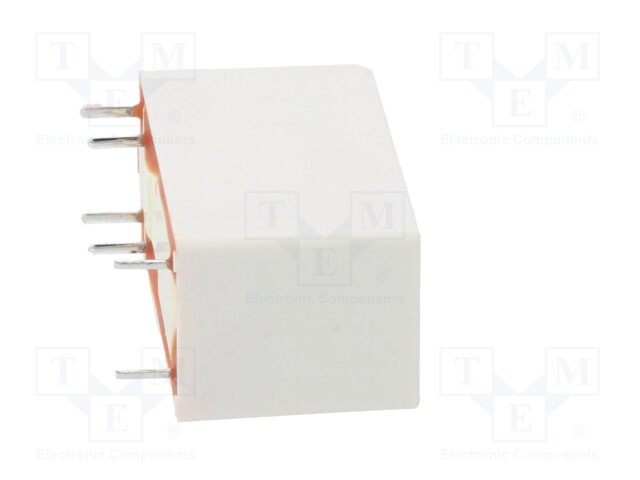

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 16A/250VAC; 360Ω

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 1-1415536-9-1
    Tootja: TE Connectivity
    Tootja tootekood: 1-1415536-9
    • Mounting
    • Operating temperature
    • Number of pins
    • Contact material
    • Terminal pitch
    • Height
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    5,76 € 5,76 € (KM-TA) 5.76 EUR

    5,76 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 16A/250VAC; 360Ω

    Mounting THT
    Operating temperature -40...105°C
    Number of pins 6
    Contact material AgNi 90/10

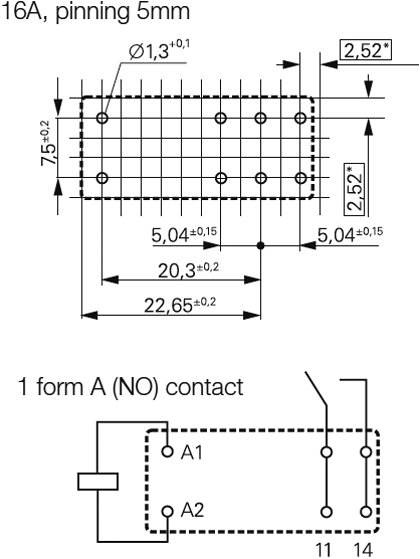

    Terminal pitch 5mm
    Height 15.7mm

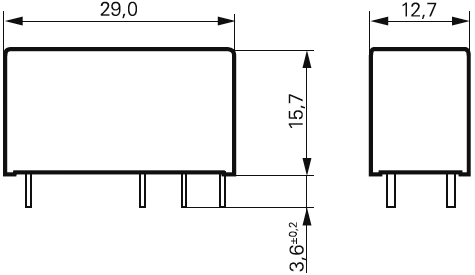

    Body dimensions 29x15.7x12.7mm
    Mechanical durability 30000000cycles
    Switched voltage ≤ 300V DC, ≤ 400V AC
    Coil resistance 360Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 16A / 30V DC
    AC contacts rating @R 16A / 250V AC
    Contact current max. 16A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 8.4V DC
    Coil power consumption 400mW
    Operate time 8ms
    Release time 6ms
    Coil current 33mA
