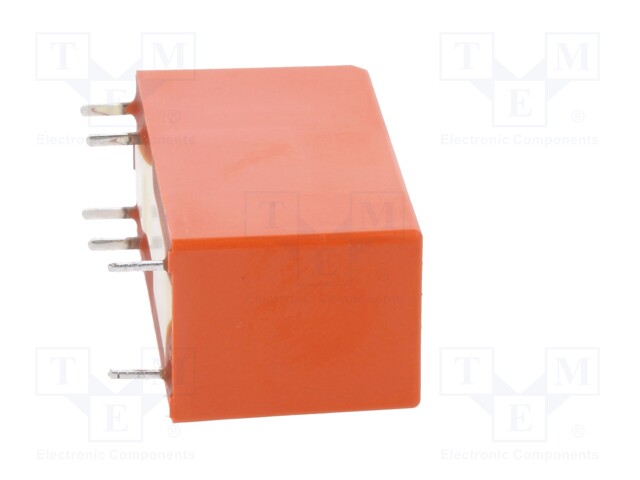

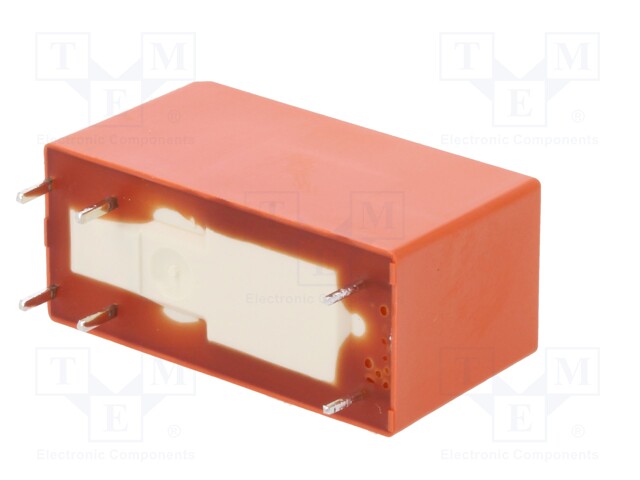

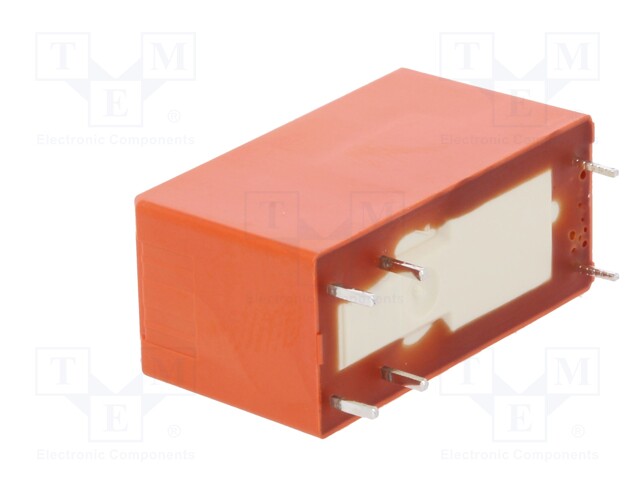

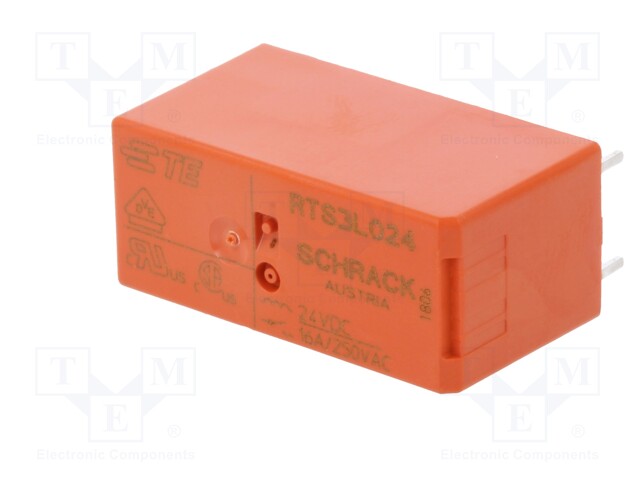

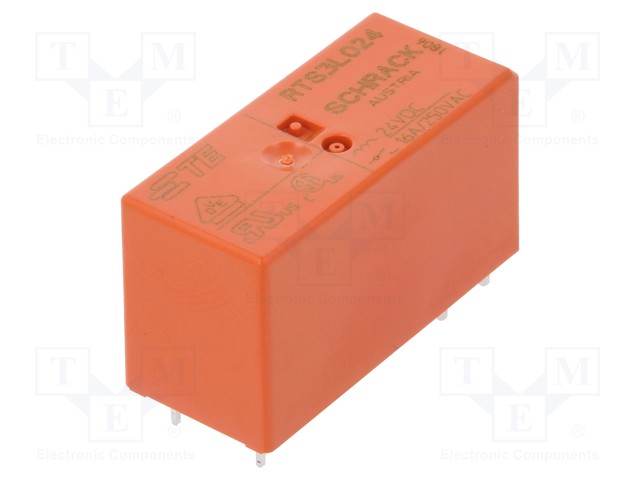

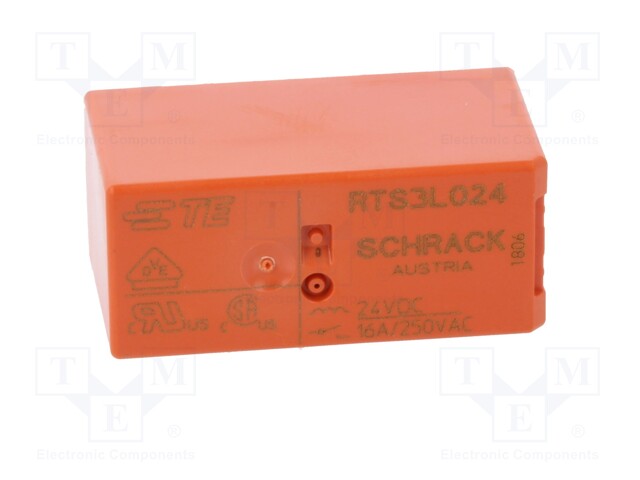

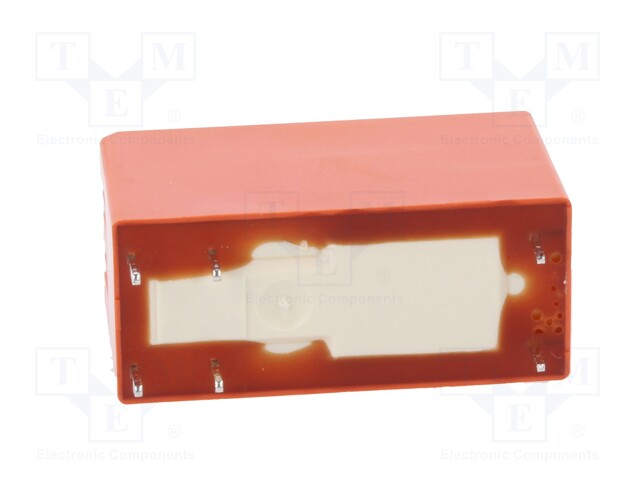

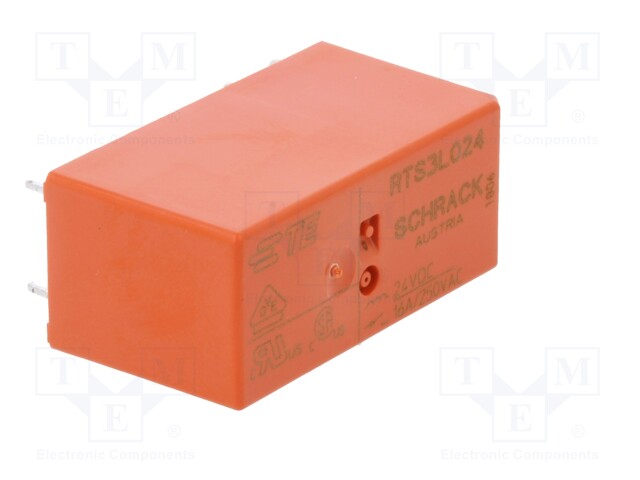

Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 16A/250VAC; 1.44kΩ

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 1-1415898-4
    Tootja: TE Connectivity
    Tootja tootekood: 1-1415898-4
    • Mounting
    • Operating temperature
    • IP rating
    • Number of pins
    • Contact material
    • Terminal pitch
    • Height
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Max surge current
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    6,62 € 6,62 € (KM-TA) 6.62 EUR

    6,62 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 16A/250VAC; 1.44kΩ

    Mounting THT
    Operating temperature -40...85°C
    IP rating IP40
    Number of pins 6
    Contact material AgSnO<sub>2</sub>
    Terminal pitch 5mm
    Height 15.7mm
    Body dimensions 29x15.7x12.7mm
    Mechanical durability 10000000cycles
    Switched voltage ≤ 300V DC, ≤ 400V AC
    Max surge current 120A
    Switching capacity 4kVA
    Coil resistance 1.44kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 16A / 24V DC
    AC contacts rating @R 16A / 250V AC
    Contact current max. 16A
    Relay variant inrush, miniature
    Type of relay electromagnetic
    Coil voltage min. 16.8V DC
    Coil power consumption 400mW
