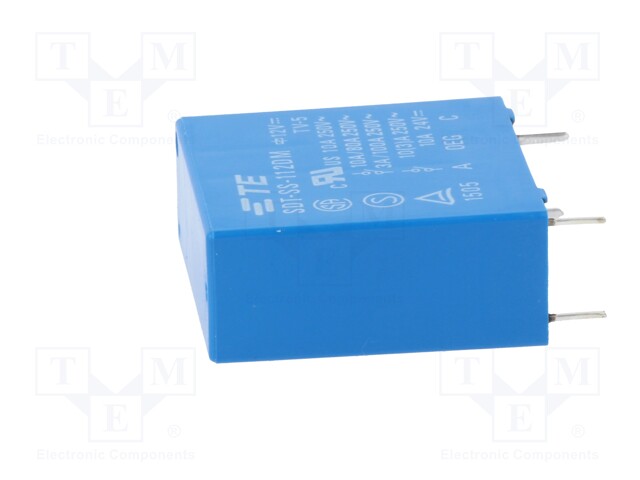

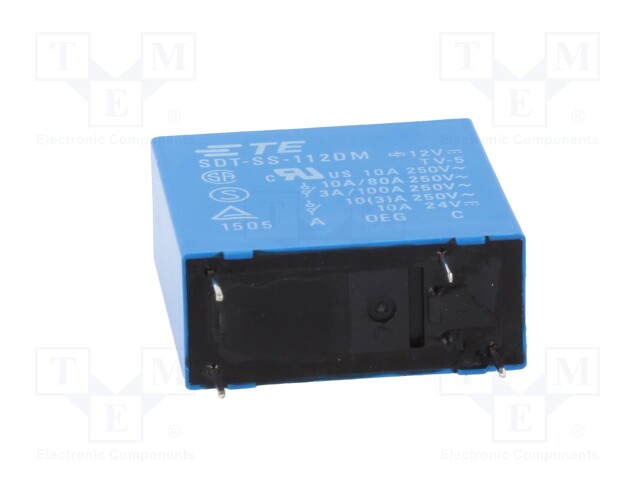

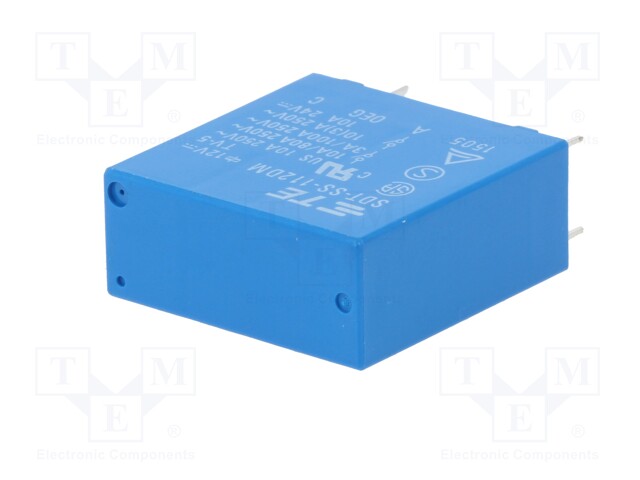

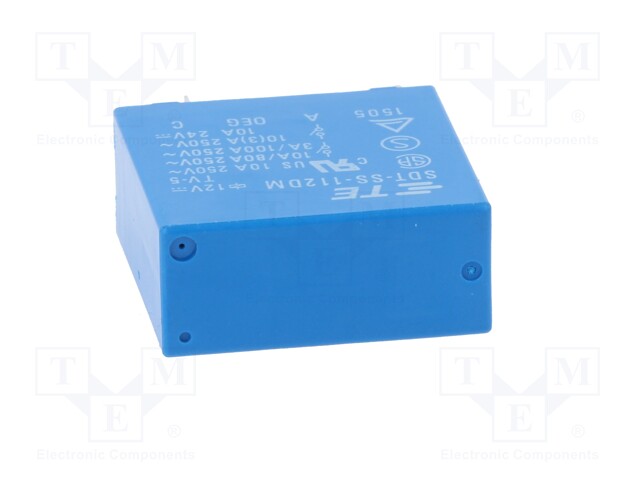

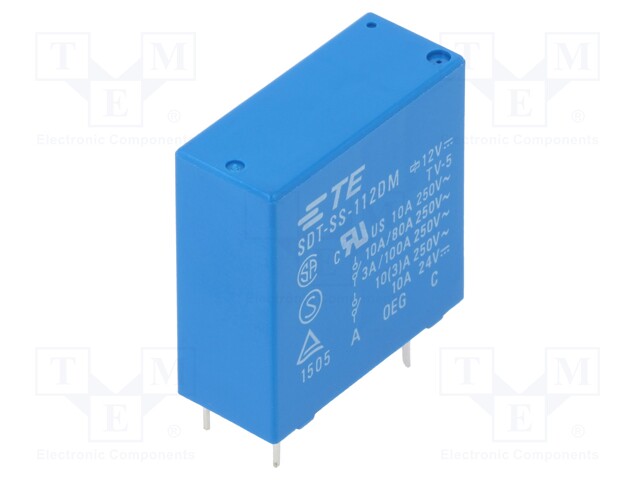

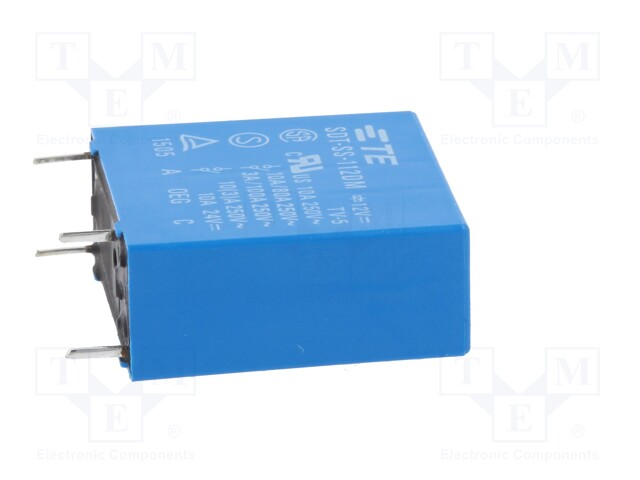

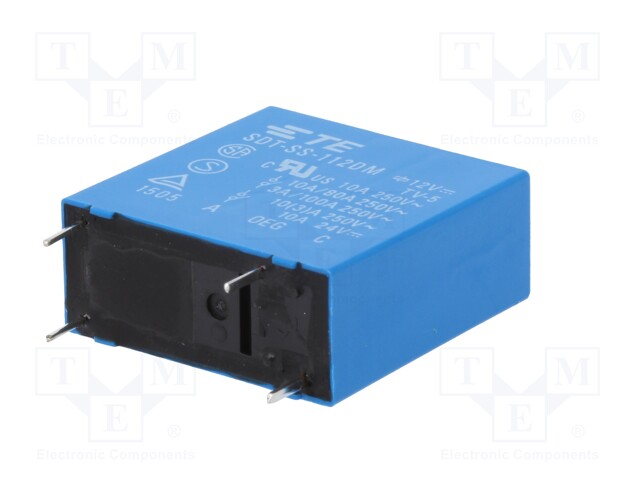

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A/250VAC; 10A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 1-1419126-8
    Tootja: TE Connectivity
    Tootja tootekood: 1-1419126-8
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Rated coil voltage
    • Contacts configuration
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay

    4,11 € 4,11 € (KM-TA) 4.11 EUR

    4,11 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A/250VAC; 10A

    Mounting PCB
    Operating temperature -30...70°C

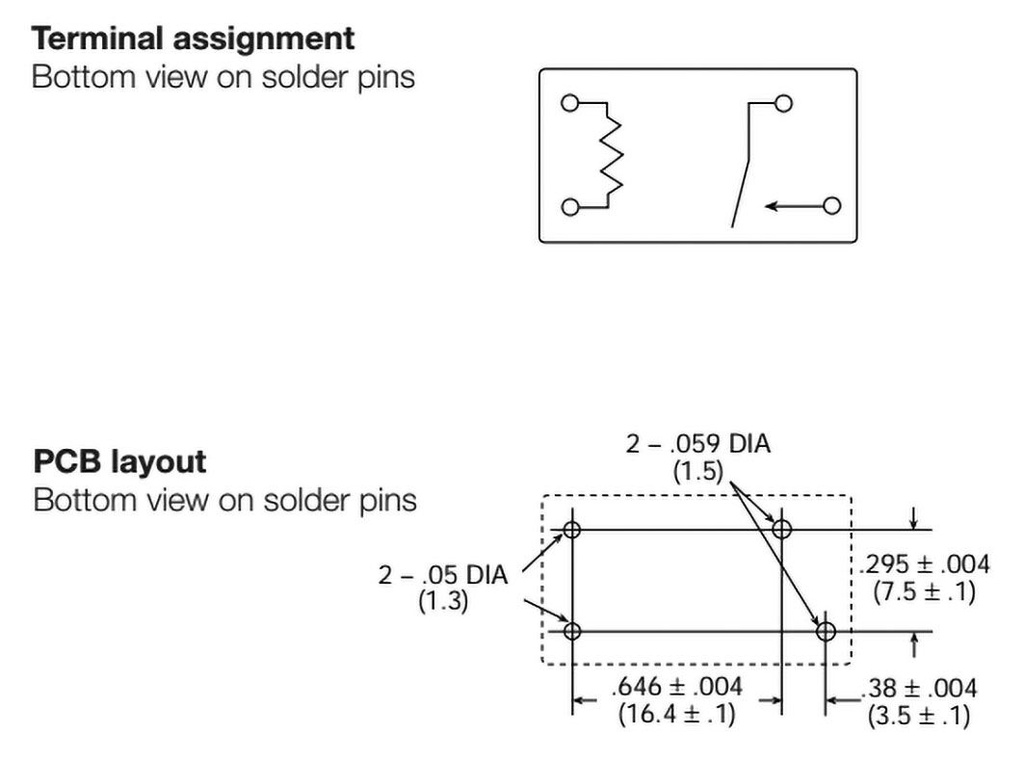

    Terminal pitch 3.5mm

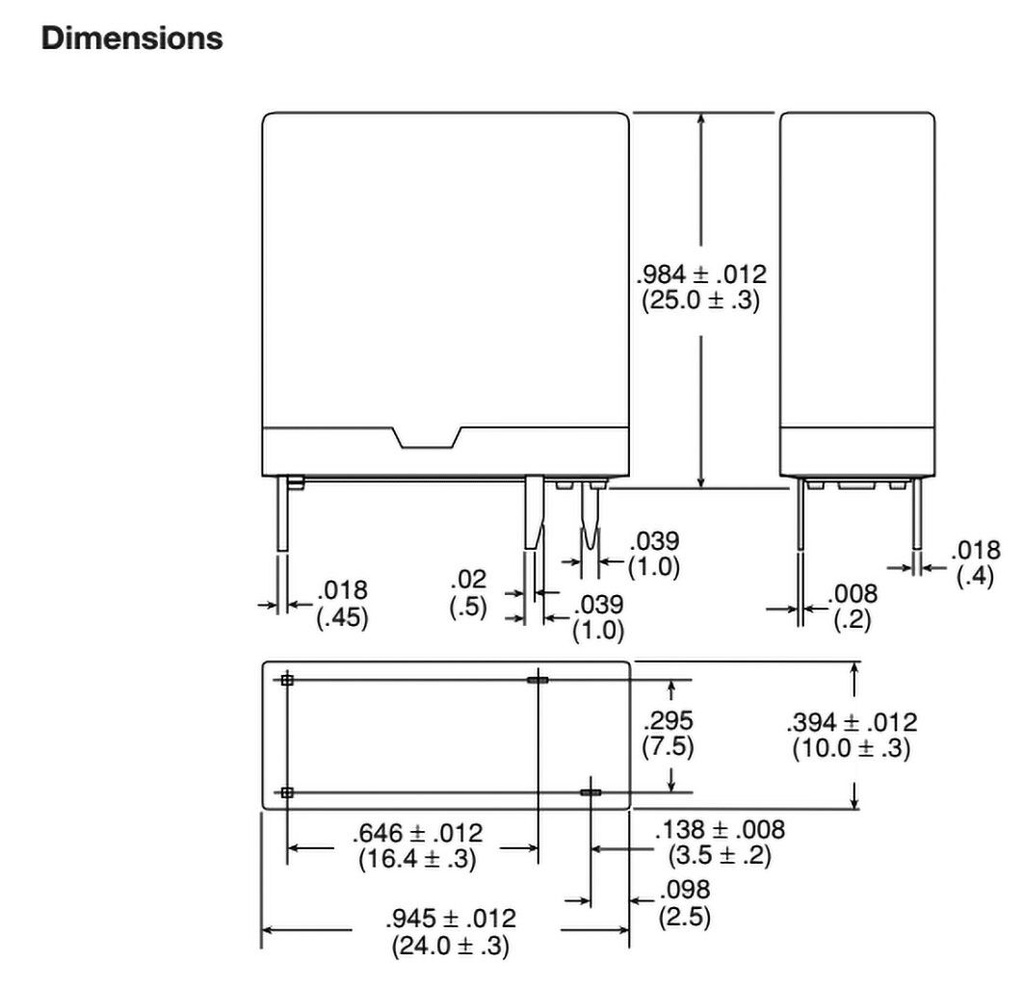

    Body dimensions 24x10x25mm
    Switched voltage ≤ 30V DC, ≤ 250V AC
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    AC contacts rating @R 10A / 250V AC
    Contact current max. 10A
    Relay variant miniature
    Type of relay electromagnetic
